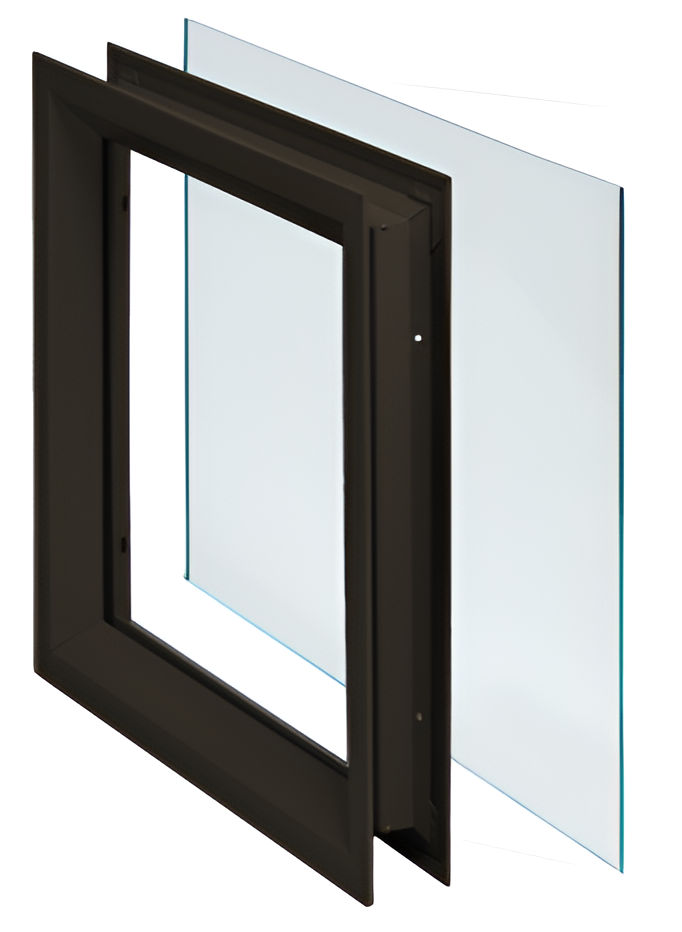

NGP L-FRAPRYANF-DKB-GT118 24X32 Lite Kit Fire-Protective Glass Glazing Tape, 90 Min Fire Rating, DKB Bronze

National Guard Products Inc L-FRAPRYANF-DKB-GT118 24X32 Lite Kit with Fire-Protective Safety Glass is engineered to provide exceptional safety and security in commercial and residential applications. This kit features a sturdy construction of 18-gauge cold-rolled steel with mitered and welded corners, ensuring durability and long-lasting performance. Designed specifically for 1-3/4" thick doors, it accommodates 3/16", 1/4", or 5/16" glass, making it versatile for various installations. The included 3/16" thick Pyran F glass ceramic is equipped with a heavy-duty 7 mil durable safety film, providing peace of mind with a fire rating of 90 minutes certified by UL. This product meets stringent fire safety standards, including ANSI/UL10B and ANSI/UL10C, and boasts an STC 31 rating for sound attenuation. The neutral coloration ensures a seamless aesthetic integration. Additional features include counter-sunk mounting screw-holes for a clean installation and closed cell PVC foam glazing tape for a reliable seal. Available in a dark bronze powder-coated finish, this lite kit not only enhances security but also complements modern architectural designs. With a 10-year glass manufacturer warranty, the L-FRAPRYANF-DKB-GT118 is a reliable choice for those seeking top-tier safety solutions.

Lite Kit with Fire-Protective Safety Glass Ceramic and Glazing Tape, Fire Rating 90 Minute, DKB Dark Bronze

Features:

• For 1-3/4" thick doors and 3/16", 1/4" or 5/16" glass
• 18 Gauge cold rolled steel
• Mitered and welded corners
• Welded reinforcing clips at corners
• Counter-sunk mounting screw-holes
• #8 x 1-5/8" Phillips head SMS
• Available in uneven and fractional sizes
• Dark bronze
• Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16"
• 3/16" (5mm) Thick Pyran F Glass Ceramic Featuring: Heavy duty 7 mil durable safety film
• Neutral coloration - clear and wireless
• Advanced manufacturing process eliminates the need for surface polishing
• Etched with UL classification on each piece
• 10-Year glass manufacturer warranty
• STC 31 rating
• Fire-Rating Information: Certified by UL to ANSI/UL10B, ANSI/UL10C, CAN/ULC-S104, ULC CAN4-S106
• Impact Safety Rating Information: Meets ANSI Z97.1, class A
• Meets CPSC 16CFR 1201 (category I and II)
• Complies with IBC requirements for use in doors
• Closed cell PVC foam glazing tape with adhesive both sides
• 3/8" wide x 1/8" thick

Options:

• Torx security screws
• Galvanneal - A40 steel
• Zinc electro-plating
• Lead lining - .030" thick
• Silicone acoustical seal applied to reduce sound transmission - suffix "STC"
