NGP RO175 72" 1/4" x 27" ADA Compliant Aluminum Interlocking Ramp offers a robust solution for accessibility needs in commercial and residential settings. Crafted from aluminum alloy 6063 with a T5 temper, this ramp is designed for both durability and functionality. With dimensions of 27" wide and 1/4" tall, it features a 1-3/4" offset, making it suitable for seamless transitions between surfaces. Weighing just 5.46 lbs./ft., the ramp is easy to handle and install, with #10 FH zinc-plated wood screws included for convenience. Its mill finish not only contributes to a sleek appearance but also enhances the durability of the product. This ramp complies with ADA Standards for Accessible Design, ensuring barrier-free access and inclusivity. Additionally, the NGP RO175 is certified by UL for fire door applications, meeting the rigorous requirements of NFPA 80 and ANSI/UL10B. With a typical wall thickness of .110, it provides reliable strength and stability. This interlocking ramp is an ideal choice for facilities aiming to enhance accessibility while maintaining safety and compliance.
72" 1/4" x 27" ADA Compliant Aluminum Interlocking Ramp
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50

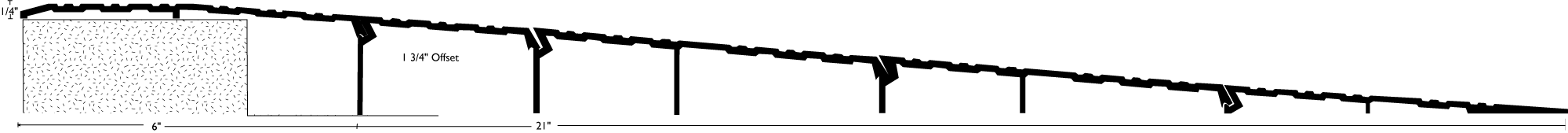

Dimensions: 27" wide x 1/4" tall with 1-3/4" offset
Fasteners: #10 FH zinc plated wood screws included
Finish: Mill finish
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Restrictions: Fragile
Series: NGP Thresholds
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .110
Weight: Weight: 5.46 lbs./ft.
