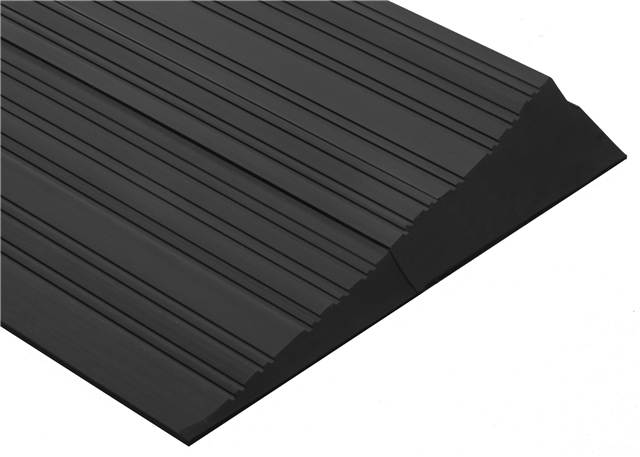

NGP RR952 48" 1/2" x 6" Interlocking Rubber Ramp is designed to provide a seamless transition in commercial restroom environments. Constructed from durable black rubber, this ramp measures 6 inches wide and stands 1/2 inch tall, making it an ideal solution for promoting accessibility. Its beveled ends feature a slope ratio of 1:2, ensuring smooth passage for all users. For specific needs, a straight cut can be requested. This versatile rubber ramp can be combined with aluminum components for higher rises or with the 6" flat aluminum interlocking threshold #957 to accommodate offset conditions. Each ramp section weighs just 1.0 lbs./ft., making installation manageable. Additionally, black silicone adhesive (RR5007BL) is available for securing the ramps without the need for fasteners, with each tube covering an impressive 6 square feet. The NGP RR952 complies with ADA standards, ensuring barrier-free access, and is ANSI/BHMA certified, meeting rigorous load tests outlined in the BHMA Certified Products Directory. With a maximum length of 120 inches, it’s perfect for various commercial applications, enhancing both safety and functionality in restrooms.
48" 1/2" x 6" Interlocking Rubber Ramp
Color: Black rubber
Dimensions: 6" wide x 1/2" tall
Finish: Charcoal
Flange Material: Rubber
Length: 48.0"
Maximum Length: Maximum length = 120"
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Weight: Weight: 1.0 lbs./ft.
