NGP SS300 83
Images may not represent actual product and finish

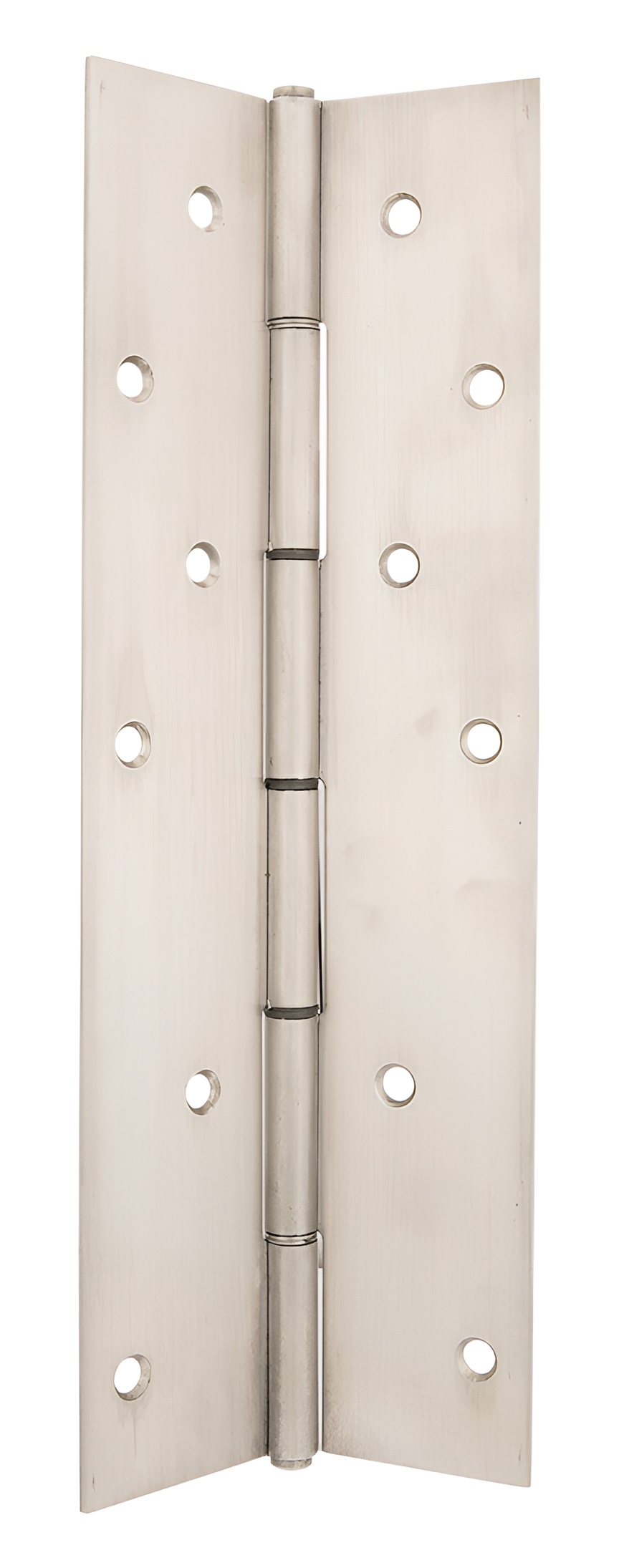

NGP SS300 83" Concealed Stainless Steel Continuous Hinge for 1-3/4" Doors, 1/8" Inset

Your Price: $420.53
Retail Price:$623.000
Your Savings:$202.47(32%)
NGP SS300 83" stainless steel continuous hinge offers heavy-duty support for doors up to 600 lbs, ensuring smooth, quiet operation.
Part Number : NGP_SS30083
Availability: 15176151 In Stock
NGP SS300 83" Concealed Stainless Steel Continuous Hinge for 1-3/4" Doors, 1/8" Inset

Stainless Steel Continuous Hinge Concealed, up to 1/8" Inset, for 1-3/4" Doors


  • Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
  • #10 x 1/2" TEK screws for metal doors and frames
  • 25 year warranty
  • Heavy duty 14 gauge type 304 stainless steel
  • #10 x 1" wood screws for wood doors
  • Standard lengths: 83", 85", 95", 119"
  • Pin and barrel design
  • US32D (630) brushed finish

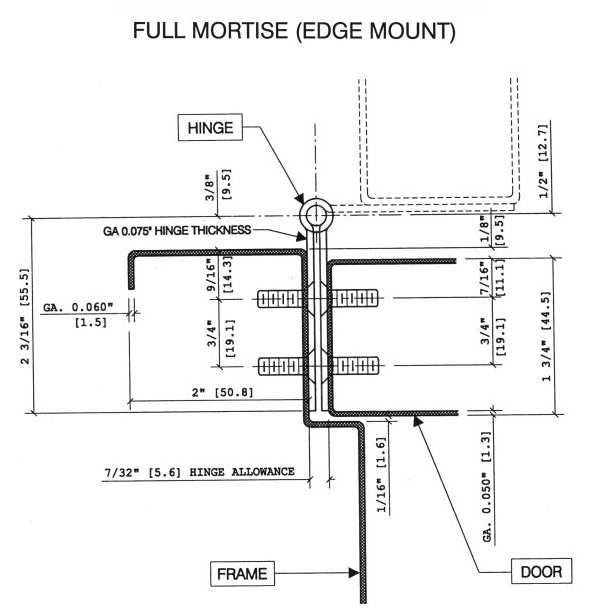

  • Note: For Door Sizing Refer to Installation Instruction
  • For doors weighing up to 600 lbs.
  • Stainless steel hinge pins

Attributes

Application: For doors weighing up to 600 lbs.

Fasteners: #10 x 1" wood screws for wood doors

Finish: US32D (630) brushed finish

Gauge: Heavy duty 14 gauge type 304 stainless steel

Length: 83"

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Standard-0: Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0 x 10".

Standard-1: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 150 lb. door.

Warranty: 25 year warranty
