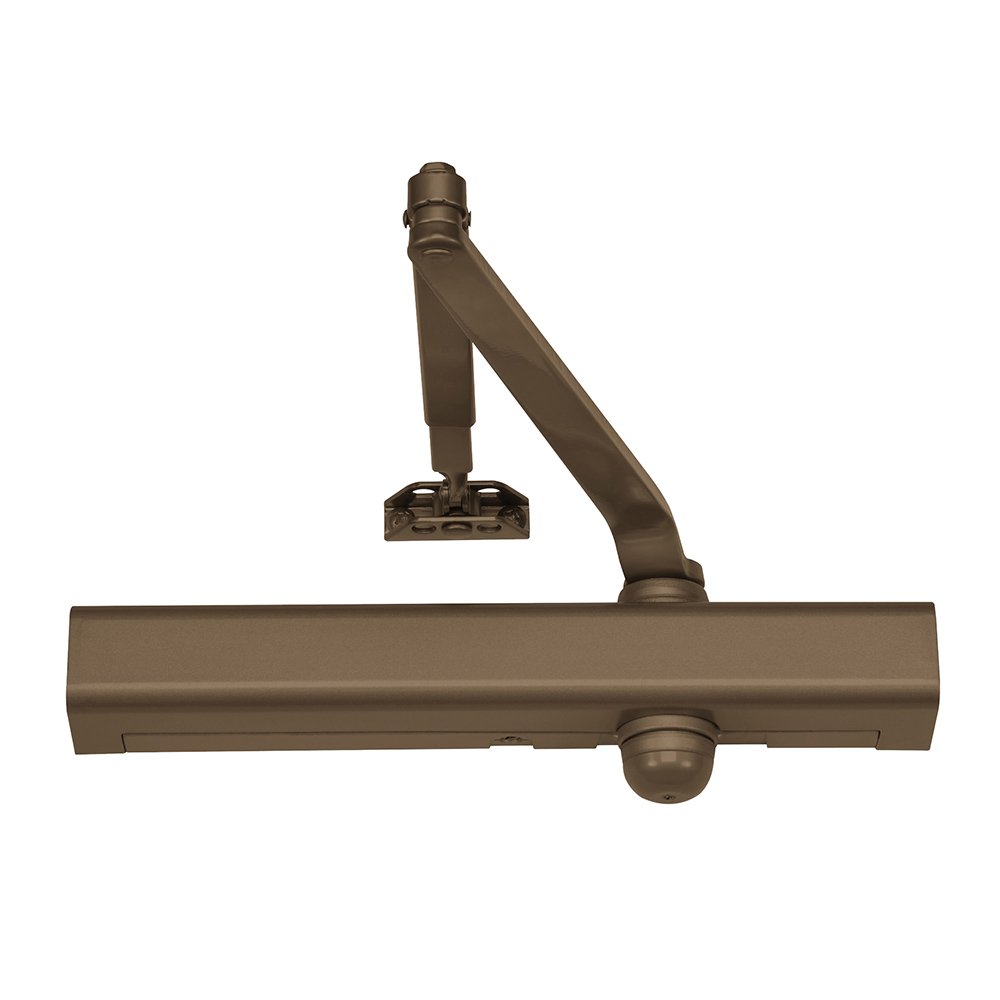

Norton 8301 691 Grade 1 Door Closer Tri-Pack

Norton 8301 691 Grade 1 Door Closer Tri-Pack offers a robust solution for both commercial and residential applications, combining durability with versatile installation options. This Grade 1 surface closer features a hydraulic tri-mount design, suitable for push or pull side mounting, and includes a regular arm to enhance accessibility. With adjustable backcheck intensity, the 8301 model provides superior control over door movement, ensuring safety and reliability. Engineered to exceed 10 million cycles, the rack and pinion design is housed in a cast aluminum body, making it a long-lasting choice for high-traffic areas. The adjustable spring power ranges from size 1 to 6, allowing for customizable performance to fit various door weights and conditions. It also incorporates two non-critical valves for independently regulating sweep and latch speeds, enhancing user experience. The slim-line plastic cover adds an aesthetic touch while maintaining functionality. This door closer meets ANSI A156.4 standards, is ADA compliant, and operates effectively in temperatures as low as -40°F, thanks to its specially formulated closer fluid. With a fire rating of 3 hours and a limited 25-year warranty, the Norton 8301 is designed to deliver peace of mind and exceptional performance in any setting.

Grade 1 Door Closer Tri-Pack

Grade 1 Surface Closer, Hydraulic Tri Mount Push or Pull Side Mounting, Regular Arm, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Light Bronze Painted Finish, Non-Handed

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.

With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
• **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
• Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
