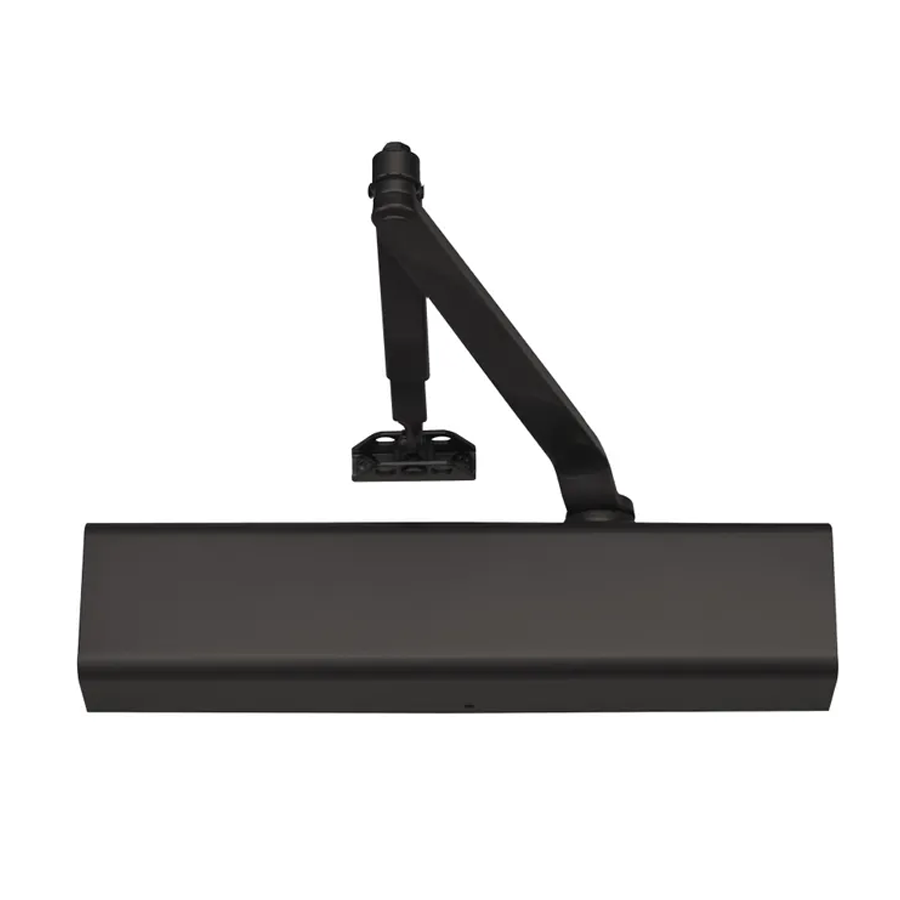

Norton 8501-SN-690 ADA Adjustable Surface Door Closer, Sizes 1-6, Tri-Packed, UL, Dark Bronze

Norton 8501-SN-690 ADA Surface Door Closer is a robust solution designed for moderate to high-traffic architectural openings. This versatile closer is crafted from cast aluminum and features a full cover design, offering a sleek and minimal aesthetic that enhances any entryway. With adjustable spring sizes ranging from 1 to 6, it accommodates a variety of door weights, supporting a maximum weight of 250 lbs. The tri-packed configuration includes options for regular, parallel, and top jamb mounting, providing flexibility for various installations. Extensive testing ensures reliability, with the closer exceeding 25 million cycles for long-lasting performance. Its staked valves prevent accidental adjustments, while a 1-1/4" diameter piston guarantees smooth operation. The Norton 8501-SN-690 also includes standard, separate, and independent latch, sweep, and backcheck intensity valves, allowing for precise control. Non-handed and capable of swinging 180 degrees under appropriate conditions, it is suitable for both interior and exterior doors. Additionally, a range of accessories is available to tackle challenging applications. Certifications of ANSI/BHMA A156.4, grade 1, alongside a 30-year limited warranty, underline its quality and durability. Available in a dark bronze powder coat finish, this door closer not only performs exceptionally but also complements your architectural vision.

ADA Surface Door Closer, Adjustable Spring Sizes 1-6, Full Cover, Tri-Packed (Regular, Parallel, Top Jamb Mounting), UL, 690 Dark Bronze Powder Coat

The 8000 series is a multi-sized, surface closer offering a complete range of arms and a sleek, minimal design suited for moderate to high-traffic, architectural openings.

Features:

• Cast aluminum closer
• Constructed with robust materials and internal components
• Adjustable spring sizes 1-6
• One package covers regular, top jamb and parallel arm mounting
• Tri-packed
• Stringent testing supports a long-life of reliability
• Exceeds 25 million cycles
• Staking limits ability to accidentally back out the valve while adjusting closer
• 1-1/4" diameter piston
• Sleek, minimal design provides clean aesthetic
• Staked valves
• Arm configurations meet broad range of applications
• Non-handed
• Extensive offering of accessories to assist with the most difficult applications
• 2-1/8" projection (standard covers)
• Proprietary lubricate delivers optimal performance and efficiency
• Interior or exterior doors
• All standard arm applications allow doors to swing 180, conditions permitting
• Standard, separate and independent latch, sweep, and backcheck intensity valves
• Hold open, heavy-duty and low profile arms available
• Slide track - push or pull side mounting
• Mounting plates, drop plates, brackets available
• Fasteners: sleeve nuts & bolts, thru-bolt grommet nuts, Torx

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate traffic
• Warranty: 30-year limited warranty
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• 8501: Regular Arm
• Only pull side application where double lever arm is used
• Sufficient frame, door and/or ceiling clearance must be considered
• 8501: Parallel Arm
• Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
• 8501: Top Jamb
• Must be sufficient frame face and/or ceiling clearance for this application
• Requires a top rail on the door of just 2-1/4" (57mm)
• Provides the best door control for doors in exterior walls that swing out of a building
• 8501ST: Pull side slide track - provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°
• 8581: Low Profile, Regular Arm
• Reduced height elbow joint and straight main arm
• Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance

Finishes:

• 600 - Primed for painting
• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 619/US15 - Satin nickel plated, clear coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
