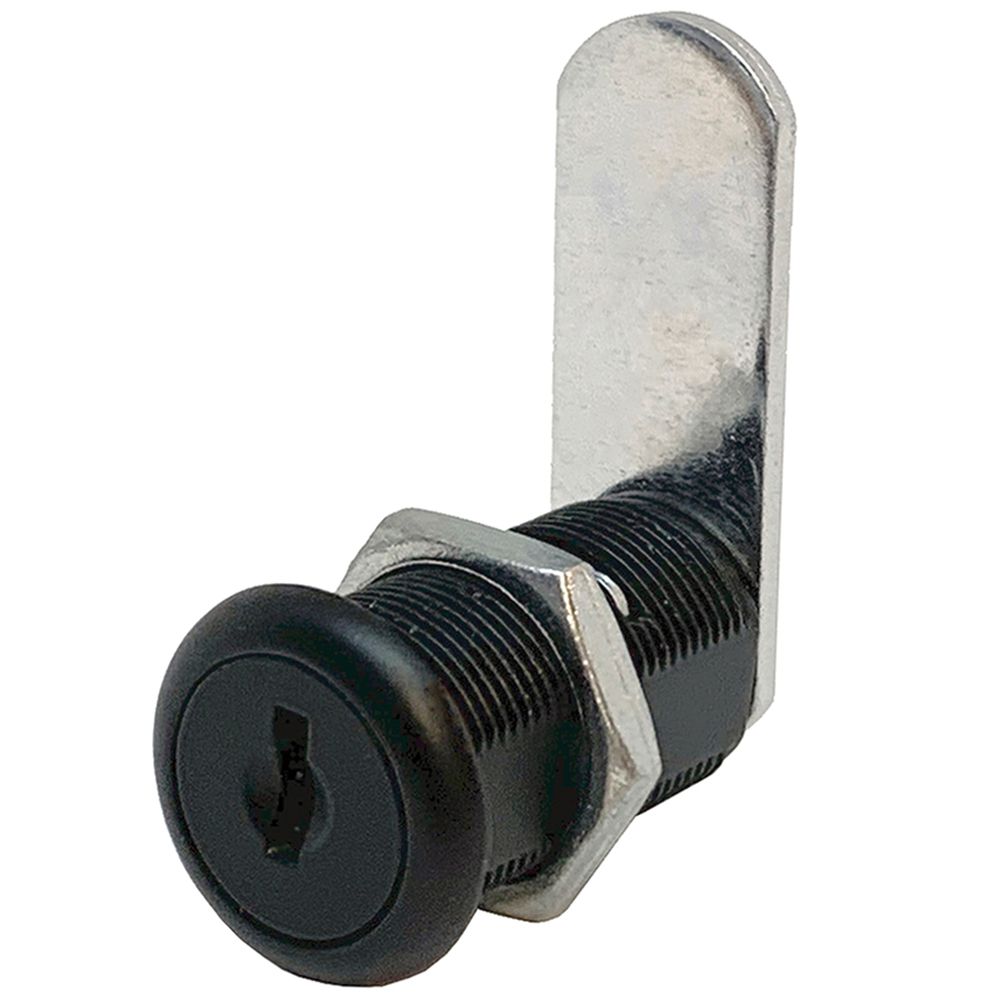

Olympus Lock 953-US19-C390A Matte Black Disc Tumbler Cam Lock 7/8"

OLYMPUS LOCKS 953-US19-C390A Disc Tumbler Cam Lock 7/8 Matte Black offers a reliable solution for your locking needs, combining functionality with a sleek design. This cam lock features a standardized plug size, which is complemented by an adapter bushing that allows it to accommodate multiple cylinder lengths. For effortless installation, the lock is packaged with the plug already retained in the cylinder, eliminating the hassle of locating and inserting keys during setup. The anti-rotation washer, equipped with an eyelet spur washer, can be securely locked down with a screw, ensuring stability. This lock comes fully assembled, allowing for fast and easy installation right out of the box. It has successfully passed the ANSI/BHMA Grade 2 cycle test, enduring 20,000 cycles of key insertion and removal, affirming its durability and reliability. Included with the lock are one 1-1/2" straight cam and one offset cam, with additional cam options available to suit your specific needs. Two keys are provided, and the zinc die-cast construction features a 5-disc tumbler mechanism, allowing the key to be removed in either the locked or unlocked position. With its matte black finish, the OLYMPUS LOCKS 953-US19-C390A combines practicality and style for any cabinet or furniture project.

DiscTumbler CamLock 7/8 Mat Black

• Key removable in locked or unlocked position
• Zinc die cast, 5 disc tumbler

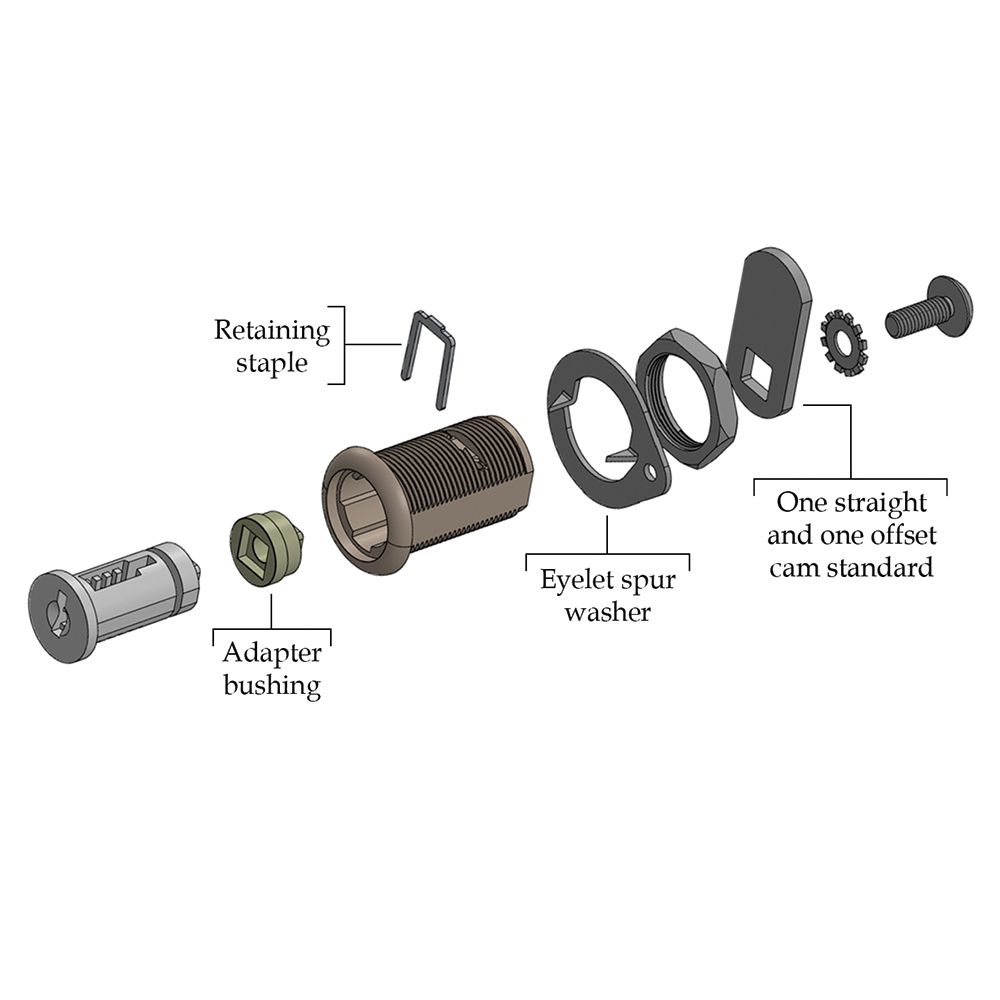

• Standardized plug size - gap filled with adapter bushing allows standardized plug to work with multiple cylinder lengths
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
• Anti-rotation washer - eyelet spur washer can be locked down with screw to prevent rotation
• 2 keys included
• Ships with body and cylinder assembled for fast and easy installation
• Packaged for easy installation - staple retains plug in cylinder, no need to locate & insert keys to install plug into cylinder. Ships without cams attached to body, eliminating the need to dissassemble before inserting into cabinet
• One 1-1/2" straight and one offset cam included, other cams available
