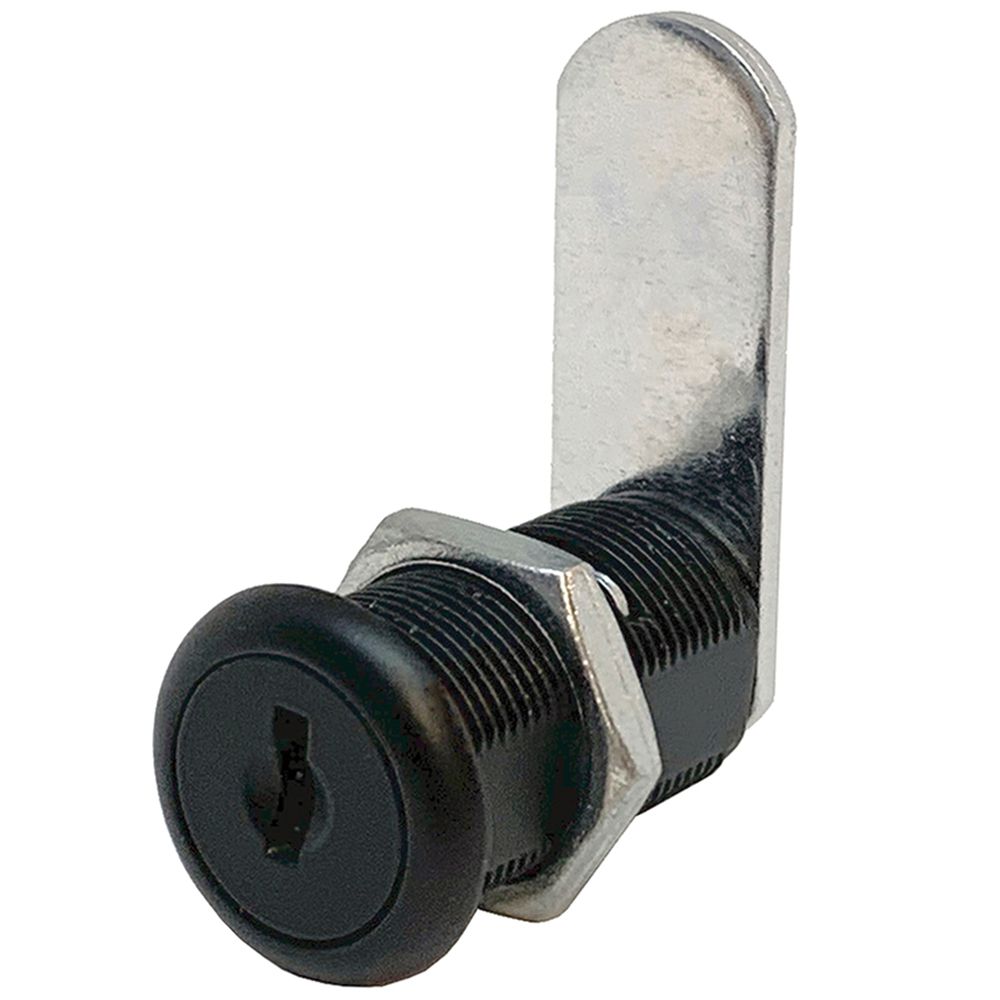

Olympus Lock 953-US19-C415A Matte Black Disc Tumbler Cam Lock 7/8"

OLYMPUS LOCKS 953-US19-C415A Disc Tumbler Cam Lock 7/8 Matte Black offers a convenient and reliable solution for securing your cabinets and furniture. Designed with a standardized plug size, this cam lock features an adapter bushing that accommodates multiple cylinder lengths, simplifying installation across various applications. The innovative packaging allows for effortless setup, as the staple retains the plug in the cylinder, eliminating the need to insert keys during installation. Additionally, the anti-rotation washer can be securely locked down with a screw, ensuring stability and preventing unwanted movement. With the body and cylinder pre-assembled, you can achieve fast installation right out of the box. This robust lock has successfully passed the ANSI/BHMA Grade 2 cycle test, enduring 20,000 cycles of key insertion and removal, which speaks to its durability and reliability. Included are one straight cam and one offset cam, with other options available for customization. The package comes with two keys for added convenience, and the key can be removed in both locked and unlocked positions. Crafted from zinc die cast with a five-disc tumbler mechanism, the OLYMPUS LOCKS 953-US19-C415A is a smart choice for building professionals and knowledgeable homeowners seeking dependable security.

DiscTumbler CamLock 7/8 Mat Black

• Key removable in locked or unlocked position
• Zinc die cast, 5 disc tumbler

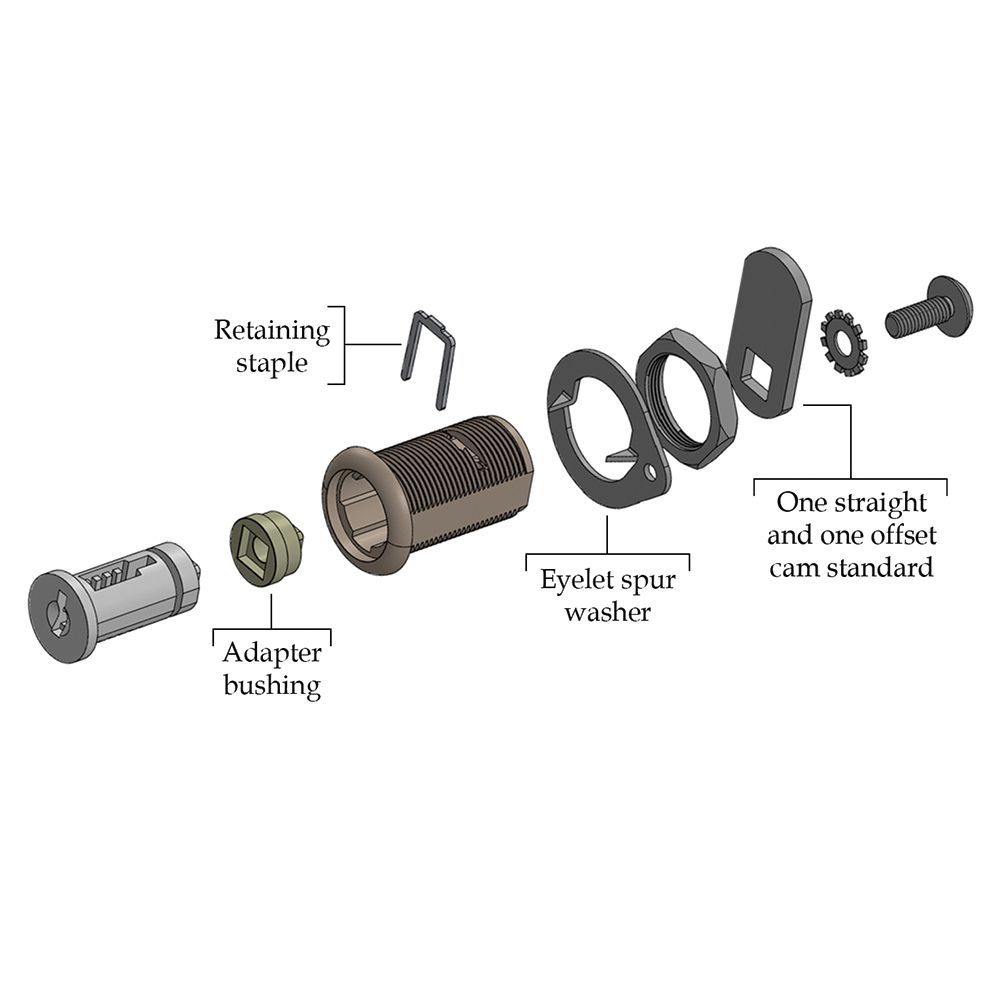

• Standardized plug size - gap filled with adapter bushing allows standardized plug to work with multiple cylinder lengths
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
• Anti-rotation washer - eyelet spur washer can be locked down with screw to prevent rotation
• 2 keys included
• Ships with body and cylinder assembled for fast and easy installation
• Packaged for easy installation - staple retains plug in cylinder, no need to locate & insert keys to install plug into cylinder. Ships without cams attached to body, eliminating the need to dissassemble before inserting into cabinet
• One 1-1/2" straight and one offset cam included, other cams available
