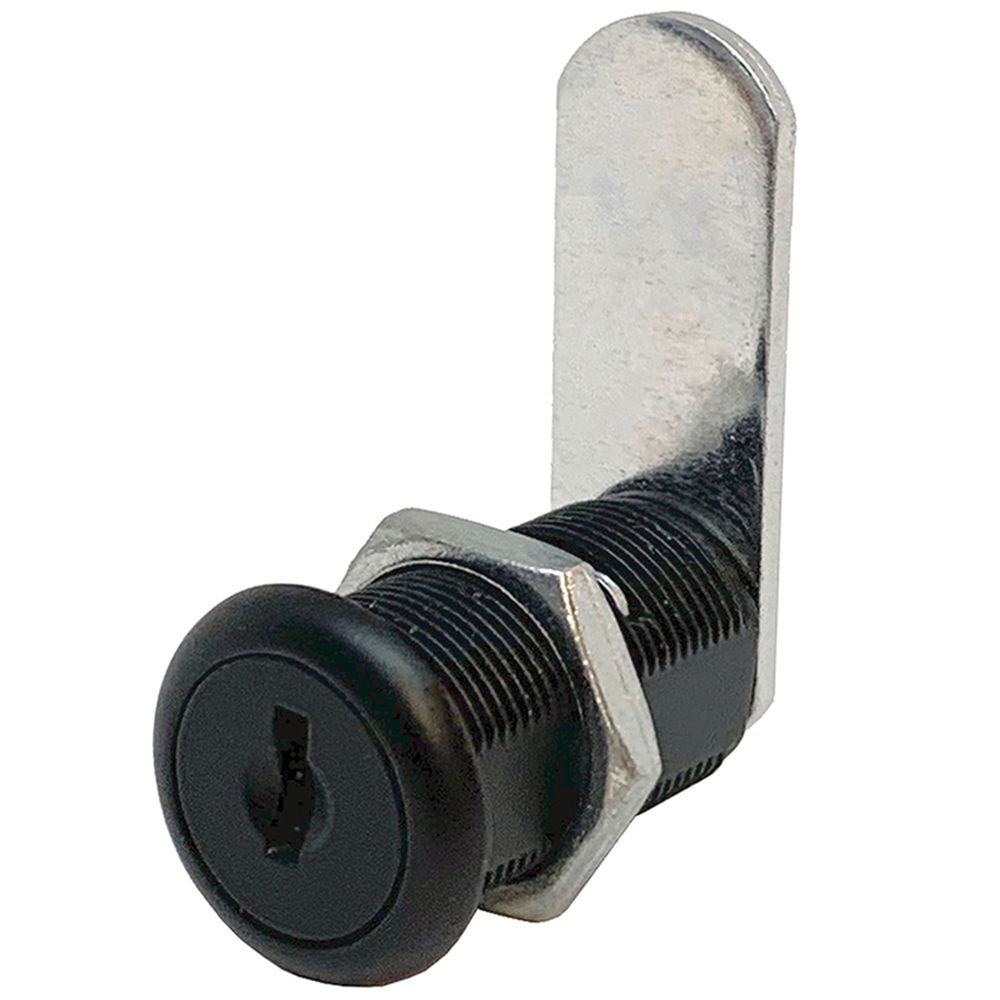

Olympus Lock 954-US19-C413A DiscTumbler Cam Lock 5/8" Matte Black

OLYMPUS LOCKS 954-US19-C413A Disc Tumbler Cam Lock 5/8 Matte Black is a versatile solution designed for seamless installation and robust security. This cam lock features a standardized plug size, which is complemented by an adapter bushing that accommodates various cylinder lengths, ensuring compatibility with multiple applications. The innovative packaging allows for straightforward installation, as the staple retains the plug within the cylinder, eliminating the need for key insertion during setup. Constructed with durability in mind, the OLYMPUS LOCKS cam lock has passed the ANSI/BHMA Grade 2 cycle test, boasting an impressive 20,000 cycles of key insertion and removal. An anti-rotation washer is included to secure the lock in position, preventing unwanted movement. Each unit ships with both a 1-1/2" straight cam and an offset cam, with additional cam options available. The lock is made from zinc die cast material and features a 5-disc tumbler mechanism, providing reliable security. Two keys are included, and they can be removed in either the locked or unlocked position, enhancing convenience for users. Weighing just 0.20 pounds, this lock is a practical addition to any cabinetry or furniture project where security is a priority.

DiscTumbler CamLock 5/8 Mat Black

• Key removable in locked or unlocked position
• Zinc die cast, 5 disc tumbler

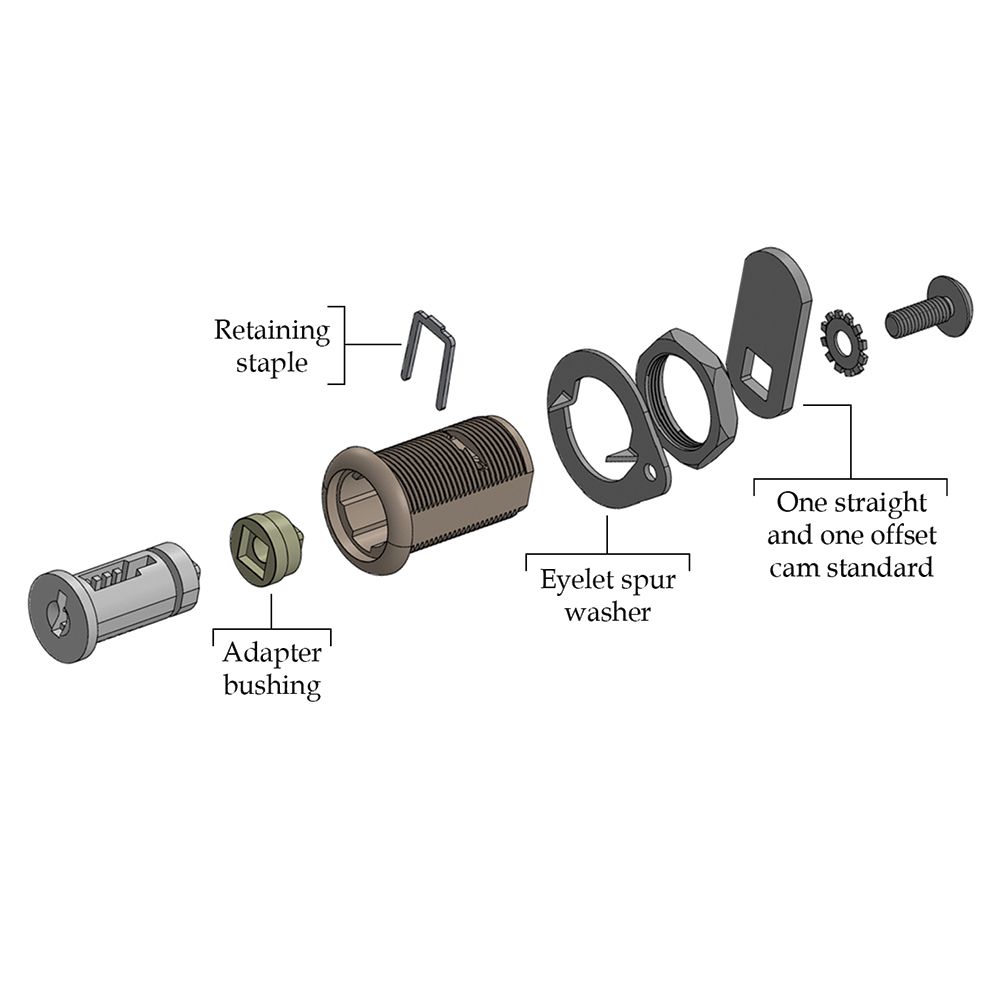

• Standardized plug size - gap filled with adapter bushing allows standardized plug to work with multiple cylinder lengths
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
• Anti-rotation washer - eyelet spur washer can be locked down with screw to prevent rotation
• 2 keys included
• Ships with body and cylinder assembled for fast and easy installation
• Packaged for easy installation - staple retains plug in cylinder, no need to locate & insert keys to install plug into cylinder. Ships without cams attached to body, eliminating the need to dissassemble before inserting into cabinet
• One 1-1/2" straight and one offset cam included, other cams available
