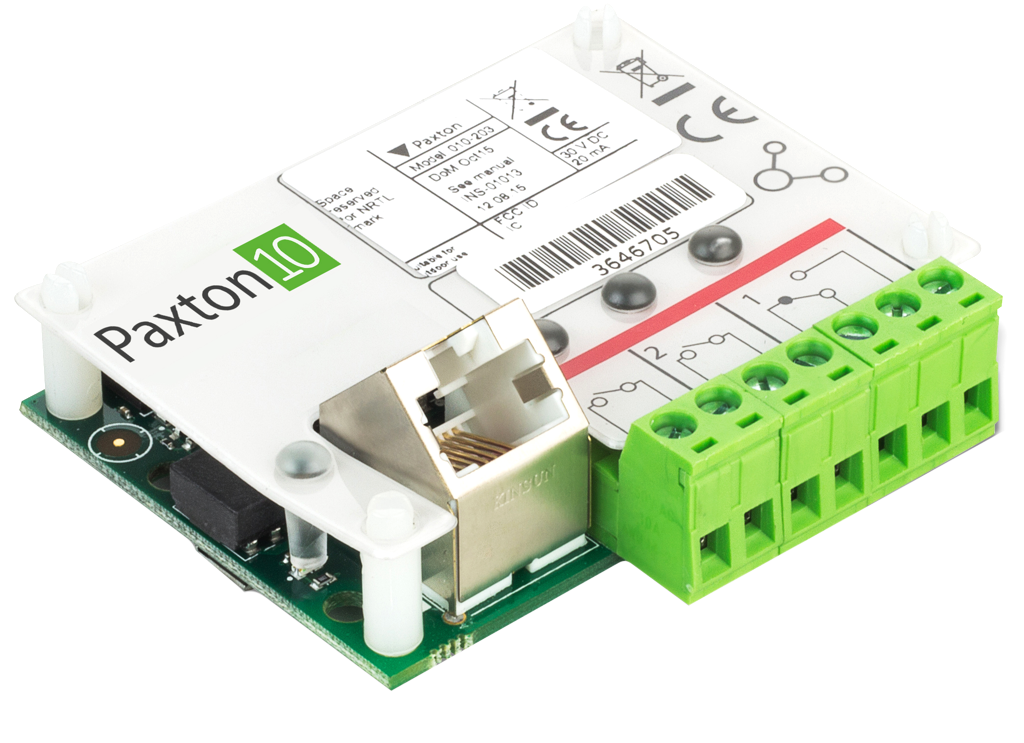

Paxton Access 010-203-US Paxton10 Alarm Connector with 2 Inputs, 1 Relay, Fault Finding LEDs, 30VDC

Paxton Access Inc. 010-203-US Paxton10 Alarm Connector provides a seamless integration of fire and intruder alarms with the Paxton10 building intelligence system. Engineered for compactness, this miniature I/O connector fits easily within alarm housings, ensuring a tidy installation. It facilitates the connection of existing alarm systems, allowing Paxton10 to control vital building functions, such as opening fire doors in emergencies. Featuring two monitoring inputs and one intruder alarm relay, this device enhances security management by enabling users to set or unset alarms based on daily building activities. The inclusion of fault-finding LEDs provides instant visual feedback on the system status, promoting efficient troubleshooting. With a power consumption of just 2W and an operating voltage of 30V DC, the alarm connector supports a relay contact current rating of 2A, ensuring robust performance. Its communication capabilities extend up to 328 feet using the RS485/Paxton10 protocol, making it suitable for a range of installations. The Paxton10 Alarm Connector operates effectively in temperatures ranging from +32°F to +131°F and is designed for adhesive mounting. Certified by UL294 and FCC 15B, it comes with a five-year warranty, ensuring reliability and peace of mind for building professionals and homeowners alike.

Paxton10, Alarm Connector, 2 Monitoring Inputs, 1 Intruder Alarm Relay, Fault Finding LED's, 30VDC, UL, FCC

The alarm connector is a miniature I/O connector that allows fire and intruder alarms to integrate with a Paxton10 system. The discreet board has a compact design to fit neatly inside the alarm housing. This alarm connector is specifically designed to connect your current building alarm systems to the Paxton10 building intelligence system. Based on the alarm status, Paxton10 can control other appliances within the building to take appropriate action such as opening fire doors in the event of a fire alarm. You can also set or unset an intruder alarm, based on opening or securing the building at the beginning or end of the day.

Features:

• Fault finding LEDs.
• Intruder alarm monitoring and control.
• Fire alarm monitoring.
• Designed to fit with the other connectors in the connector housing or in specific alarm boxes where appropriate.
• Clear intuitive labeling.

Specifications:

• Electrical:
• Power consumption: 2W
• Operating voltage: 30V DC
• Relay contact current rating: 2A
• Relay contact isolation: N/A
• Relay contact voltage: 30V AC/DC
• Communication:
• Maximum dataline length: (Paxton10 controller > Paxton10 alarm connector): 328ft
• Data connection: RS485/Paxton10 protocol
• Hardware:
• Dimensions (W x H x D): 2-1/64"(51mm) x 2-43/64"(68mm) x 1-11/32"(34mm)
• Relays: 1
• Inputs: 2
• Warranty: Paxton 5 year
• Environment:
• Operating temperature: + 32°C - + 131°F
• Mounting: Adhesive feet/enclosure only
• Certifications: UL294, FCC 15B
