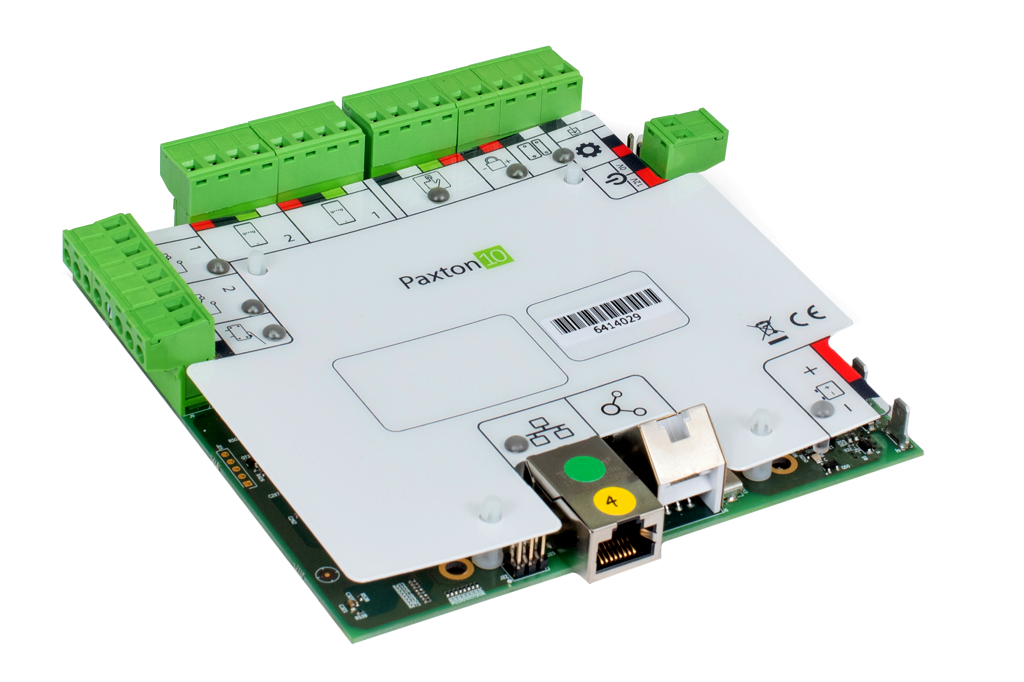

Paxton Access 010-403-US Paxton10 Single Door Controller PCB, TCP/IP, 2 Relays, PoE, UL, FCC

Paxton Access Inc. 010-403-US Paxton10 Single Door Controller offers a streamlined solution for secure access control in various environments. Designed for ease of use, this PCB-only controller features clearly labeled terminals that facilitate a hassle-free installation process. With the flexibility to be powered via 24V AC or Power over Ethernet (PoE), it adapts seamlessly to your existing infrastructure. The Paxton10 includes key functionalities such as two relays for versatile integration, door contact input, exit button input, and tamper input, ensuring comprehensive monitoring and control. Its locally stored programming allows the system to remain operational even if the connection to the server is interrupted, providing peace of mind in any situation. Built to last, the controller comes with a five-year warranty and includes backup battery connectors for added reliability. The unit operates within a temperature range of 32°F to 113°F, making it suitable for various environments. With dimensions of 12-23/32" x 12-23/32" x 2-63/64", it is compact enough for wall mounting. Certified to UL 294 and FCC 15B standards, the Paxton Access 010-403-US ensures that you are investing in a safe, compliant, and efficient solution for your access control needs.

Paxton10, Single Door Controller, PCB Only, TCP/IP, 2 Relays, Door Contact Input, Exit Button Input, Tamper Input, PoE, 24VAC, UL, FCC

The Paxton10 door controller has been designed with simplicity in mind. Clearly labelled terminals result in hassle free installation for control and monitoring of a door. Offering installation flexibility with the option to power either by 24V AC or making use of existing network infrastructure to power via PoE.

Features:

• Simple plug-and-play installation.
• Locally stored programming enables the system to continue working if connection to the server is lost.
• 5 year warranty.
• Available with either PoE or 24V AC power supply.
• Backup battery connectors.
• Powered lock output.

Specifications:

• Electrical:
• While battery charging: Idle – 97mA/5.08W; Max -108mA/5.6W
• While battery full: Idle – 48mA/2.53W; Max -105mA/5.5W
• Controller input voltage: 12V - 24V DC
• Backup battery: 12V DC, 7Ah (optional)
• Lock output: 12V DC/1A
• Relay rating: 30V DC/2A
• RS485 connector output: 24V DC, 750mA max (Paxton connectors only)
• RS485 reader output: 12V DC, 1A max (Paxton readers only)
• PoE Power Supply: Input: 36-57V DC, 25.5W (IEEE 802.3at type 2); Output: 12.8V DC, 1.8A
• 2A Power Supply: Input: 24V AC; Output: 12/24V DC 2A
• Communication: IP
• Hardware:
• Dimensions (W x H x D): 12-23/32" x 12-23/32" x 2-63/64"
• Door contact input: Yes
• Voltage free digital input: 1
• Exit button input: Yes
• Tamper input: Yes
• Relays: 2
• Maximum number of readers/keypads per door: 2
• Warranty: Paxton 5 year
• Environment: Operating temperature: 32°F - 113°F, Mounting: Wall
• Certifications: UL 294, FCC 15B.
