Paxton Access 010-592-US Paxton10 Wireless Connector for PaxLock Pro, 2.4GHz, Z-Wave, Bluetooth

Paxton Access Inc. 010-592-US Paxton10 Wireless Connector for PaxLock Pro is an essential component for enhancing your access control system. Designed to seamlessly integrate with the award-winning PaxLock Pro, this wireless connector operates on a robust 2.4GHz Bluetooth® frequency, providing reliable communication and connectivity. Its discreet design allows for convenient ceiling or wall mounting, ensuring it blends effortlessly into any environment. With easy plug-and-play operation, the connector supports a maximum of 10 PaxLock Pros and up to 200 Z-Wave devices, making it versatile for various setups. The unit features health and fault-finding LEDs for clear visual diagnostics, ensuring you can maintain optimal system performance. In terms of specifications, the connector operates on a power consumption of 300mA (max) and a voltage of 30VDC. It boasts an impressive wireless range of 15m (50ft) to the PaxLock, while maintaining a maximum dataline connection of 100m (328ft). The operating temperature range is suitable for environments from +32°F to +113°F, and it comes with a comprehensive 5-year warranty. Certifications include UL 60950-1 and FCC 15C, ensuring compliance with safety standards. Enhance your security system with the Paxton Access 010-592-US Wireless Connector.

Paxton10, Wireless Connector for PaxLock Pro, 2.4GHz, Z-Wave, Bluetooth, 30VDC, UL, FCC, White

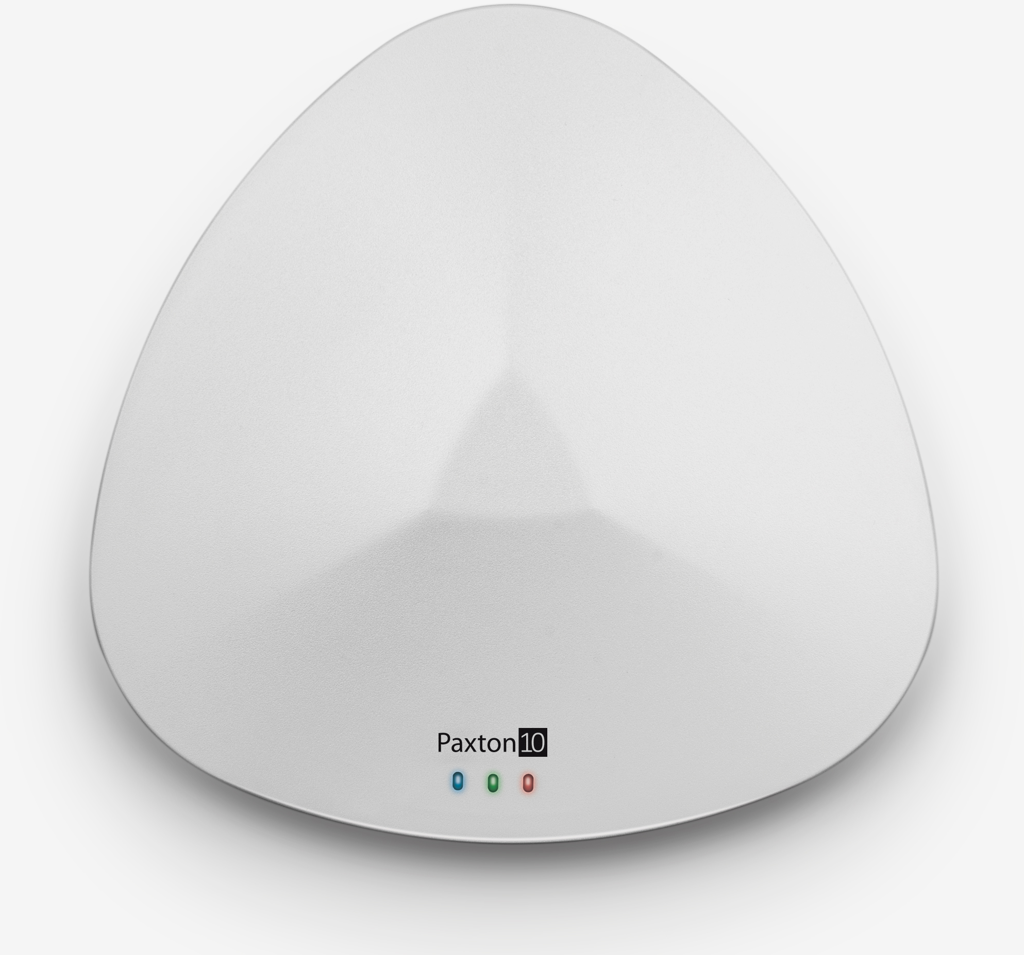

The wireless connector enables the award winning PaxLock pro to connect to the Paxton10 system. The wireless connector communicates to the PaxLock pro via Bluetooth, and is designed for discreet ceiling or wall mounting.

Features:

• BLE connectivity.
• Easy plug and play operation.
• Health and fault finding LED’s for visual diagnostics.

Specifications:

• system:
• Maximum PaxLock Pros per connector: 10
• Maximum Z-Wave devices per connector: 200
• Number of cascaded connectors per controller: 3
• Electrical:
• Power consumption: 300mA (max)
• Operating voltage: Powered by RS485, 30VDC
• Communication:
• Maximum dataline connection - controller to connector: 100m/328ft
• Maximum dataline connection - connector to connector: 100m/328ft
• Data connection: RS485/Paxton10 protocol
• Wireless: Bluetooth® 2.4GHz
• Typical Wireless Range (to PaxLock): 15m/50ft
• Hardware:
• Dimensions (W x H x D): 6-29/64"(164mm) x 6-27/64"(163mm) x 1-11/32"(34mm)
• LED’s:
• Green LED: Health, comms
• Blue LED: Bluetooth®
• Red LED: Z-Wave (currently unavailable)
• Warranty: Paxton 5 year
• Environment:
• Operating temperature: + 32°F - + 113°F
• IP Rating: N/A if used outside, this unit must be mounted in a suitable housing
• Mounting: Surface only/backbox mounted
• Certifications: UL 60950-1, FCC 15C
