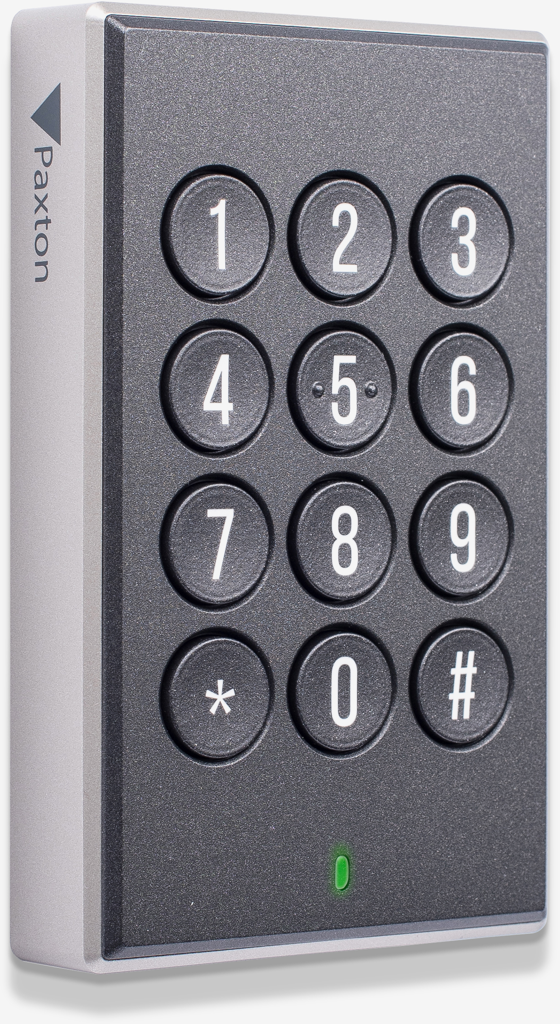

Paxton Access 010-721-US Paxton10 Bluetooth Keypad Reader, Surface Mount, Multi-Format, IK09, IP67

Paxton Access Inc. 010-721-US Paxton10 Keypad Reader delivers advanced access control in a sleek and durable design. This surface-mounted keypad reader supports pin and code entry, making it an excellent choice for enhancing security in various environments. Its rugged construction boasts an IP67 rating, ensuring resilience against dust and water ingress. Equipped with multi-format reading capabilities, the Paxton10 Keypad Reader is compatible with a wide range of tokens, including HID Prox, MiFare, and EM, facilitating seamless integration into existing systems. Bluetooth technology allows for efficient communication with mobile devices, enabling hands-free operation and convenient access via the Paxton app. The keypad features a durable, backlit silicone surface for easy use in low-light conditions, while its built-in piezo buzzer provides audible feedback during operation. With a low power consumption mode and a simple 4-wire installation process, this device is both energy-efficient and easy to set up. Operating in temperatures from -31°F to +150°F, the Paxton10 Keypad Reader is ready for various climate conditions. Backed by a 5-year warranty and certified by UL and FCC, it is a reliable choice for professionals seeking quality and performance in access control solutions.

Paxton10, Keypad Reader, Surface Mount, 12 Key, Multi-Format, Bluetooth, 125khz, 13.56 MHz, 2.4GHz, Piezo Buzzer, IK09, IP67, UL, FCC

The keypad reader brings pin and code support to the Paxton10 system in a stylish and simple design with a rugged IP67 construction. Designed using cutting edge technology, the Paxton10 keypad reader packs a huge amount of functionality into its compact package. The new reader supports all leading tokens including HID Prox, MiFare, Paxton and EM, as well as offering Bluetooth for communication with long range or hands free credentials and mobile telephones via the Paxton app. The keypad reader also includes LED backlighting, whilst using minimal energy during operation through its built in wake-up mechanism.

Features:

• Durable hardened silicone keypad.
• Backlit for easy use and identification in low light.
• Brings Paxton simplicity to the plethora of token types currently on the market by supporting all of them concurrently.
• Multi-format reading technology offering compatibility with Paxton, MiFare, HID Prox, EM and more.
• Low power sleep mode.
• Built-in Bluetooth smart and low energy support to allow communication to mobile and wearable devices.
• Simple 2-part construction with encapsulated 5m cable included.
• Simple 4 wire installation.

Specifications:

• Token compatibility:
• Paxton, EM4100/02, Sony, FeliCa Lite-S
• MiFare Classic, MiFare DESFire EV1/EV2
• MiFare Plus, MiFare Ultralight
• MiFare Ultralight C, MiFare Mini, NFC
• Hitag2, HID Prox 125kHz low frequency
• Electrical:
• Power consumption: 1W (max)
• Operating voltage: 12V
• Current Draw: 40mA (Quiescent); 100mA (max)
• Communication:
• RFID frequency: 125kHz & 13.56MHz
• Data connection: RS485/Paxton10 protocol
• Bluetooth: 2.4GHz
• Hardware:
• Dimensions (W x H x D): 2-33/64"(63.8mm) x 4-3/32"(104mm) x 23/32(18.2mm)
• Cable Type: 22AWG, 4 core twisted pair
• Cable Length: 5m/ 16ft
• Maximum cable extension length (controller > reader): 100m/328ft
• Sound: Piezo Buzzer
• Colour: Black
• Housing material: PC+ABS
• Warranty: Paxton 5 year
• Environment:
• Operating temperature: - 31°F - + 150°F
• IP Rating: IP67
• IK Rating: IK09
• Mounting: Surface only. US - backbox adaptor
• Certifications: UL 294, FCC 15C
