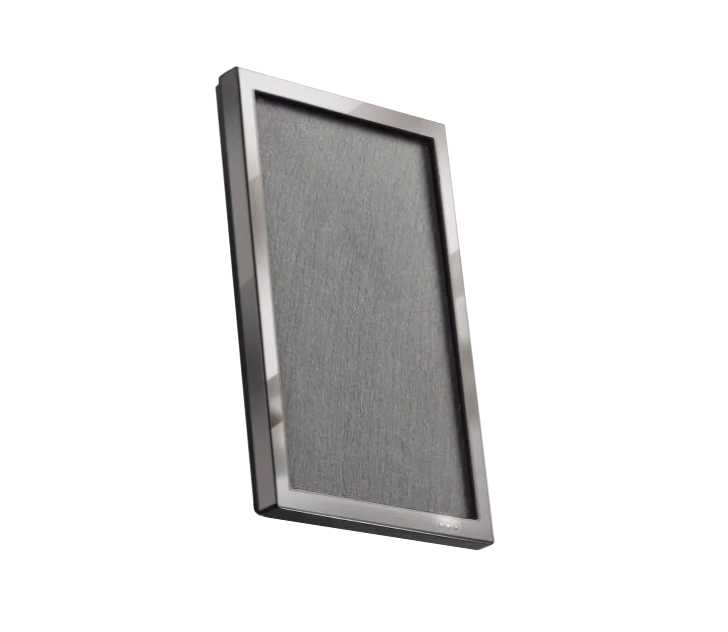

Paxton Access 360-864GG-US Net2, Switch 2, Proximity Architectural Reader, 125khz, 2.4GHz, GG Gunmetal Grey

Paxton Access Inc. 360-864GG-US Net2 Proximity Architectural Reader offers seamless contactless authentication, making it an ideal choice for modern access control systems. Designed for compatibility with both Switch2 and Net2 systems, this RFID device ensures a streamlined user experience by simply holding a token close to the reader for access verification. The reader features a sleek gunmetal grey finish, enhancing the aesthetics of any interior space. Equipped with three LEDs that glow softly white by default, the reader provides clear visual feedback-turning green when access is granted and red when denied, complemented by an audible tone for added clarity. It supports various token types, including Paxton and EM HID® Prox tokens, ensuring versatile integration. This architectural reader is engineered for durability, featuring moisture resistance rated at IPX7 and medium vandal resistance, making it suitable for a range of environments with operating temperatures from -20°C to +55°C (-4°F to +131°F). With a cable length of 5m (16ft) and customizable design options, it offers flexibility for installation. Available finishes include matt black, gunmetal grey, and satin chrome, allowing for personalization to match specific décor needs. The Paxton Access 360-864GG-US is an excellent addition to any security system, balancing functionality with style.

Net2, Switch 2, Proximity Architectural Reader, 125khz, 2.4GHz, GG Gunmetal Grey

The proximity architectural readers are RFID devices that offer the convenience of contactless authentication for system users. They are available for use with both Switch2 and Net2 systems The reader is wired as shown on the control unit label. A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. The control unit verifies the information and grants or denies access as appropriate. By default, all 3 LEDs are lit in a soft white glow. If access is granted, the LEDs change to green. If access is denied, the LEDs change to red. An audible tone is emitted in both cases.

Features:

• Works with Net2 or Switch2.
• 2 standard inserts available.
• Drawing provided to allow for custom inserts.
• Designer reader to match the interior of buildings.
• 3 bezel styles available.

Specifications:

• system:
• Cable Length: 5m/16ft.
• Cable extension length and type:
• 25m/82ft or greater: (Belden 9538/Belden 5506FE (USA) general cable equivalent C0744A/general cable equivalent E2008S)
• 100m/328ft or greater: (Belden 9540/Belden 5306FE (USA) general cable equivalent C0745A/general cable equivalent E2038S)
• Token compatibility: Paxton, EM HID® Prox (activation required).
• Handsfree compatible: No
• Natural material inserts: Wood, glass or stone
• Electrical:
• Operating Voltage: 10V - 14V DC
• Current consumption: 150mA
• Environment:
• Operating temperature: - 20°C - + 55°C; - 4°F - + 131°F
• Moisture resistance: IPX7
• Vandal Resistance: Medium

Finishes:

• BL - Matt black
• GG - Gunmetal grey
• SC - Satin chrome
