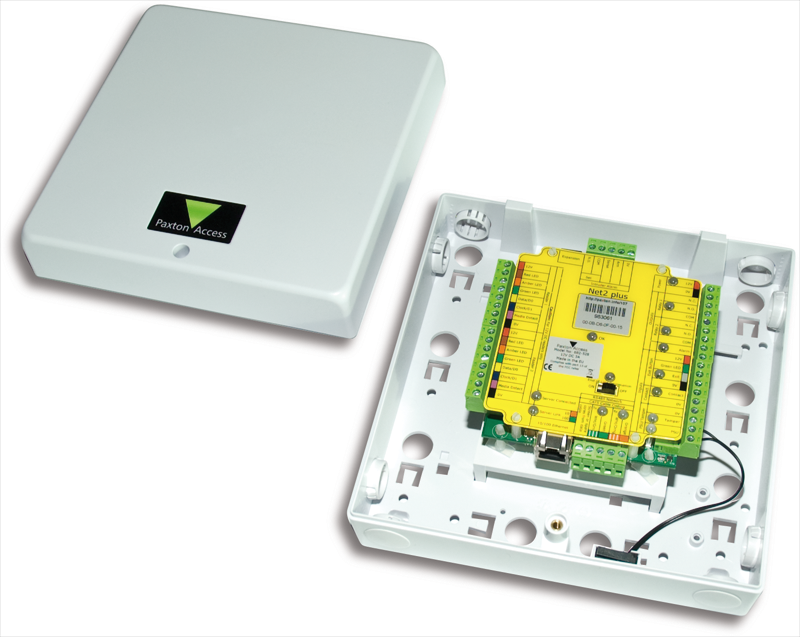

Paxton Access 682-528-US Net2 Plus Single Door Controller, Wall Mount, TCP/IP, 12-24VDC, UL, FCC

Paxton Access Inc. 682-528-US Net2 Plus is a robust single-door networked access control system designed for seamless integration into your security infrastructure. This unit offers central control and event reporting, allowing for flexible management of user access. Each controller operates independently while being part of a network, ensuring reliability and efficiency. The Net2 Plus features a durable ABS plastic enclosure and can easily connect to a TCP/IP network using a standard RJ45 plug, eliminating the need for a separate TCP/IP to RS485 converter. It supports both TCP/IP and RS485 connections, making it versatile for various installations. With PoE+ capabilities, it simplifies installation by powering through an Ethernet cable, provided by a PoE switch or injector. Diagnostic LEDs and FLASH memory for easy upgrades enhance usability, while compatibility with both Paxton Access and third-party readers offers added flexibility. The system ensures immediate communication of changes made at the PC to the control unit, allowing for real-time access management. Included in the box are essential installation components such as fitting kits, wiring labels, and a tamper switch assembly. Ideal for both commercial and residential applications, the Net2 Plus is an essential addition to any access control strategy.

Net2 Plus, Single Door Controller with ABS Plastic Enclosure, Wall Mount, TCP/IP, DHCP, 26 Bit Wiegand, 12-24VDC, UL, FCC

Net2 plus is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users' access. Each control unit is part of a network but can run independently making its own decisions and remembering events. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is also available with a power over Ethernet (PoE) power supply. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a PoE switch or a PoE injector). Control units are sold as a PCB board only or within a plastic housing. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.

Features:

• Single door networkable access control unit
• Plug into a TCP/IP network using a standard RJ45 plug
• Net2 plus can replace a TCP/IP convertor
• Net2 plus can also connect using RS485
• Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site
• Diagnostic LEDs
• FLASH memory allows easy upgrades
• Use Paxton Access or 3rd party readers
• Operation: Any changes made at the PC are immediately communicated and stored at the control unit. When a user presents their token to the reader, the control unit identifies them and permits or denies access as appropriate.

Box Contents:

• Fasteners - 15mm PCB spacer 1.6mm board
• Fitting kit - RS485/232 or TCP/IP comms converter
• Fitting kit - Net2 ACU in plastic housing
• Label - product serial number label 27 x 10mm
• Label - tech support international
• Label - void if seal is broken, 80x30mm
• Sales code label, 30 x 20mm, ETL Canada FCC statement
• Net2 Plus access control unit V2 UL
• Net2 plus wiring labels with 17 light guides
• ACU white plastic housing UL
• Tamper switch assembly with 3way connector
