Paxton Access Inc. 682-630-US Net2 Plus is a robust single door controller designed for modern access management. This networked access control system offers centralized control, event reporting, and flexible user access management, making it ideal for both residential and commercial applications. Each control unit functions independently while remaining connected to the network, allowing it to make autonomous decisions and retain event memory. Equipped with a metal enclosure, the Net2 Plus features Power over Ethernet (PoE+) technology, enabling seamless integration into existing LAN setups via a standard RJ45 plug. This eliminates the need for a separate TCP/IP to RS485 converter and simplifies the installation process. The system supports 12-24VDC power supply options and is compatible with both Paxton Access and third-party readers. Key features include diagnostic LEDs for easy troubleshooting, FLASH memory for straightforward upgrades, and the ability to mix different Paxton control units on-site, including Net2 classic and Net2 nano models. The Net2 Plus is UL and FCC certified, ensuring compliance with safety and performance standards. Enhance your access control system with the reliability and versatility of the Paxton Access Inc. 682-630-US Net2 Plus.
Net2 Plus, Single Door Controller with Metal Enclosure, PoE+ PSU, Wall Mount, TCP/IP, DHCP, 26 Bit Wiegand, 12-24VDC, UL, FCC

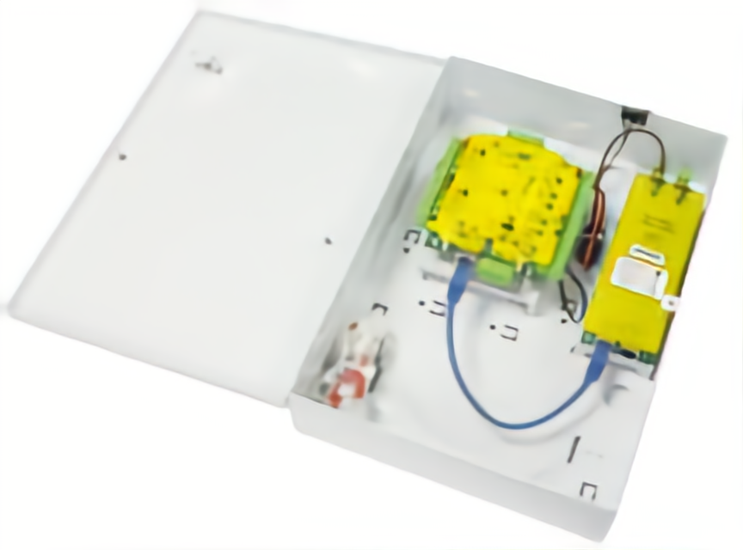

Net2 plus is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users' access. Each control unit is part of a network but can run independently making its own decisions and remembering events. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is available with 12/24V power supply AC DC, power over Ethernet (POE), or trigger disconnect power supply for, which is suitable for fire alarm disconnect. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a PoE switch or a PoE injector). Control units are sold as a PCB board only or within a plastic housing. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.
Features:
Alternate Codes: 682-630-US, 682630US, 682-721-US, 682721US, PAX682-721-US
Category: Access Control, Access Management, Hardwired
