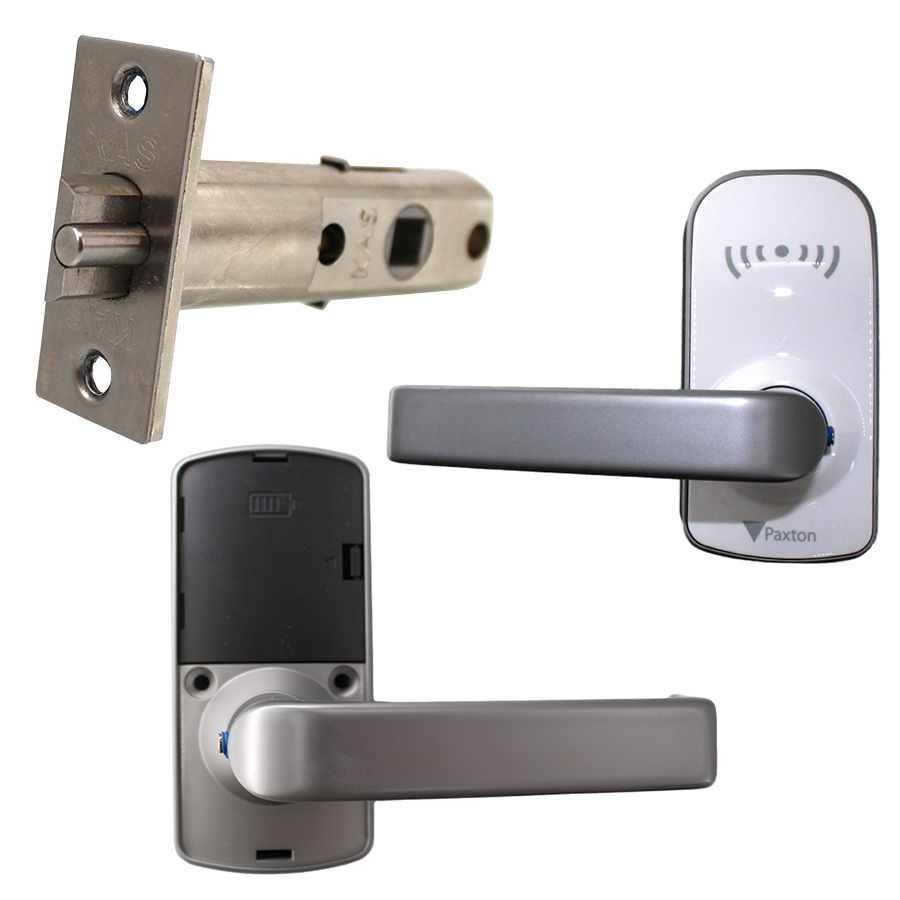

Paxton Access 900-635WT-US 2-3/8 KIT - PaxLock Pro, Eclipse, White with 901-051-US 2-3/8in Latch.

Paxton Access Inc. 900-635WT-US 2-3/8 KIT - PaxLock Pro, Eclipse, White with 901-051-US 2-3/8in Latch is a cutting-edge electronic door handle designed for versatility and ease of use. As the third generation of PaxLock technology, it combines a sleek aesthetic with robust functionality, making it ideal for various applications. The patented design ensures straightforward installation, while the device is backed by Paxton’s industry-leading five-year warranty. This innovative product features dual frequency reading capabilities and offers two operational modes: it can function as a standalone offline device or seamlessly connect to a Paxton10 system via a wireless connector. Users will appreciate the built-in Bluetooth technology, enabling operation via smart devices. The PaxLock Pro supports a wide range of tokens, accommodating up to 5,000 users in standalone mode and 50,000 online. With a wireless range of up to 50 feet and the ability to store 16,000 events, the PaxLock Pro is not only efficient but also user-friendly. It operates silently and features hands-free compatibility, which enhances convenience in high-traffic environments. Built to last with a battery life of 55,000 operations, this lock is suitable for standard cylindrical doors and operates effectively in a temperature range of +32°F to +120°F.

KIT - PaxLock Pro, Eclipse, White with 901-051-US 2-3/8in Latch.

The PaxLock Pro represents Paxton’s 3rd generation of electronic door handle; offering a robust, featureful and aesthetically pleasing product suitable for a multitude of installations. The new patented design has been created to be both simple to install, intuitive to use and backed up by Paxton’s market leading 5 year warranty. Offering two modes of operation the user can choose to use the PaxLock Pro as a standalone offline device, or connect it to a Paxton10 system via a Paxton10 wireless connector.

Features:

• Dual frequency reader.
• Wireless real-time event reporting.
• When PaxLock Pro - latch is unlocked the handle moves freely.
• Dual standalone and online functionality in one unit.
• Wireless door handle to use with a Paxton10 system or in standalone.
• Built-in Bluetooth wireless technology, allowing the use of smart devices.
• Compatible with standard cylindrical doors using tubular latch.

Specifications:

• System:
• Maximum total tokens/users - standalone: 100 card packs (up to 5,000 tokens/users)
• Maximum total tokens/users - online: 50,000
• Token compatibility: Paxton, EM4100/02, MiFare, MiFare Classic, MiFare DESFire EV1, MiFare Plus, MiFare Ultralight, MiFare Ultralight C, MiFare Mini, HID Prox, Sony, FeliCa Lite-S.
• Stored events: 16,000
• Hands free compatible: Yes (Touch to enter)
• Door open time: 1-60 Seconds
• Silent operation: Yes
• Door traffic: Typically up to 75 uses per day
• Electrical:
• Battery Type: 4x AA 1.5V Alkaline.
• Battery Life: 55,000 operations.
• Communication:
• Wireless: Bluetooth 2.4GHz (IEEE 802.15.4)
• Default channel: 25
• Recommended wireless devices per Paxton10 wireless connector: 10
• Typical wireless range: Bluetooth 15m/50ft
• Encryption: AES128
• Hardware:
• Dimensions body (W x H x D): 2-33/64" x 5" x 1-49/64"
• Dimensions including handle (W x H x D): 6-3/8" x 5" x 3-27/64"
• Warranty: Paxton 5 year
• Environment:
• Operating temperature: Reader side: + 32°F ~ + 120°F.; Battery side: + 32°F ~ + 120°F
• IK Rating: N/A
• Fire Resistance: N/A
• Certifications: UL 294

Finishes:

• BL - Black
• WT - White
