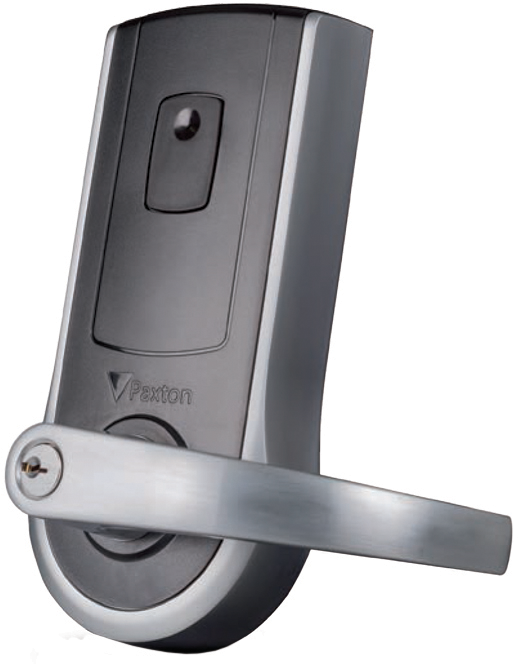

Paxton Access Inc. 921-130-US Net2 PaxLock offers a robust solution for secure wireless access control. This battery-operated unit integrates seamlessly with Paxton’s Net2 software, providing users with comprehensive management capabilities and live tracking of user activities. Designed for versatility, the Net2 PaxLock supports up to 50,000 users, ensuring that access can be efficiently managed even in larger environments. With its sleek Galaxy lever design and Schlage C keyway, this lock is not only functional but also aesthetically pleasing. The unit operates on a secure 2.4GHz wireless frequency, maintaining a reliable connection within a range of 15 meters. Its battery management system includes low battery alerts and operates on four AA batteries, allowing for up to 30,000 operations in low power mode. The Net2 PaxLock features a key override for added security and is built to function offline, ensuring continued access even if the connection to the server is interrupted. Installation is straightforward, requiring minimal drilling and setup time. With ANSI/UL compliance for fire resistance, this lock meets stringent safety standards, making it a dependable choice for both residential and commercial applications. Enhance your access control with the Paxton Access Net2 PaxLock, where security meets convenience.

Net 2 PaxLock, Galaxy Lever, Schlage C Keyway, 2.4GHz, 1-60 Second, Battery Powered, 2-3/4in Backset, AES 128bit, ANSI, UL, Black

Net2 PaxLock is a secure wireless battery operated access control unit. Net2 PaxLock works with Paxton’s Net2 software, allowing the end user networked access control for easy management. Net2 PaxLock provides live user tracking and alarm events like door forced and door held. It includes a key override for peace of mind. Net2 PaxLock was designed to operate even if the connection to the server is lost. Allowing up to 10,000 users access rights for entry when offline.

Features:

• Key override option
• Online, wireless, battery powered Net2 access control
• Secure, simple door handle solution that can be fitted in minutes
• Events are reported back to the Net2 server in real time
• Full battery management system with low battery alerts and easy-change AA batteries
• Compatible with EM and Paxton proximity tokens
• Installation: Use the template to drill the required holes in the door. Install the Net2 PaxLock on the door and insert the batteries. Add the unit to the Net2 system by presenting a pre-enrolled token.
• Operation: Any changes made at the PC are communicated and stored at the Net2 PaxLock. When a user presents their token to the reader, the Net2 PaxLock identifies them and permits or denies access as appropriate.

Specifications:

• Maximum total users/tokens: 50,000
• Token compatibility: Paxton, EM
• Handsfree compatible: No
• Door open time: 1 sec - 60 secs
• Silent operation: Yes
• Battery type: 4 x AA 1.5V Alkaline
• Battery life: Normal power mode: 20,000 operations, Low power mode: 30,000 operations
• Wireless: Yes 2.4GHz (IEEE 802.15.4)
• Optimum wireless range: 15m/50ft
• Backset: 70mm/2.75"
• Rotation: 70°
• Lockset: Cylindrical lockset
• Operating temperature: 0°C - +55°C, +32°F - +131°F
• Fire resistance: ANSI/UL 10C compliant (20 min fire doors), CAN/ULC S104 compliant (20 min fire doors)

Resources

• Cut Sheet
