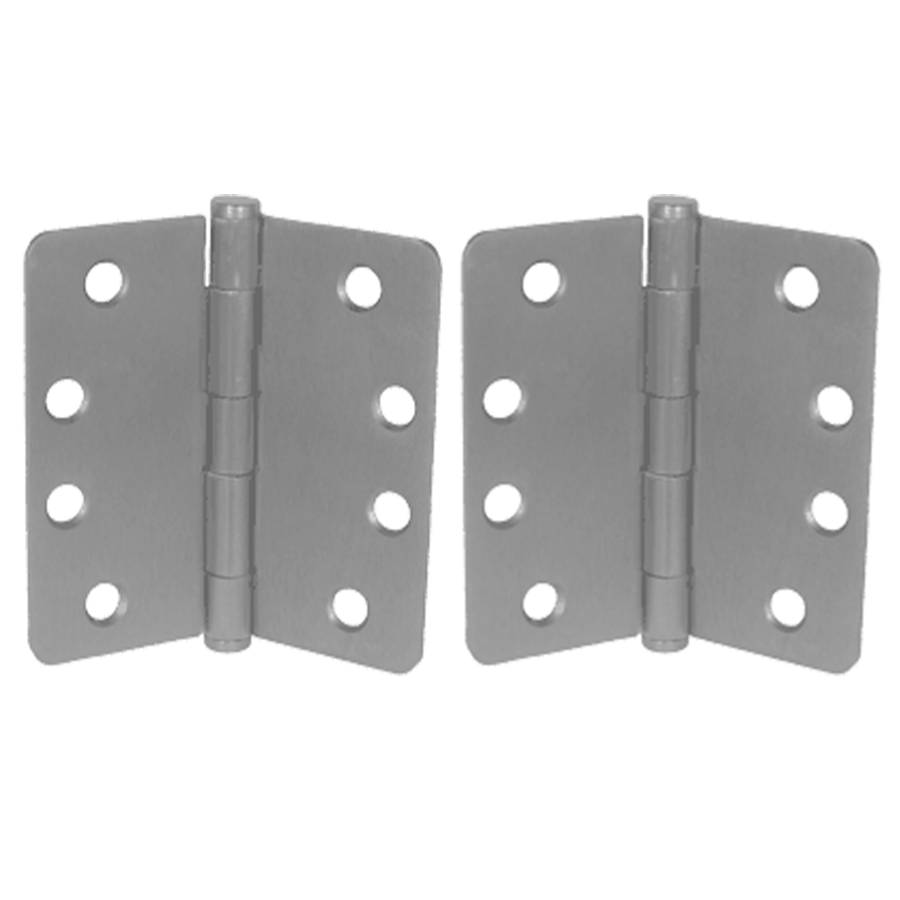

PBB BB81-US26D-4.5 X 4.0 1/4RC NRP 5-Knuckle Hinge, Full Mortise, 4.5"x4", Satin Chrome, Non-Removable Pin

PBB Inc BB81-US26D 5-Knuckle Hinge is designed for those who demand the perfect blend of durability and functionality. This full mortise hinge measures 4.5 inches by 4.0 inches, featuring a 1/4-inch radius corner and a robust ferrous steel base with a sleek satin chrome finish (US26D/626). Engineered with precision, the hinge meets all specifications set by the American National Standards Institute (ANSI), ensuring reliability in commercial applications. The 5-knuckle ball bearing design provides smooth operation and enhanced strength, making it ideal for high-traffic areas. With a material gauge of .134 ± .005, this hinge is built to withstand the test of time and heavy usage. It also comes with a non-removable pin (NRP) feature for added security. Each hinge is packaged individually in a plastic bag, and a complete screw pack is included with 24 machine screws and 12 wood screws, ensuring you have everything needed for installation. Available in polished brass, stainless steel, and Bonderized steel options, the PBB BB81 hinge offers versatility to meet your specific project requirements. Trust PBB Inc for quality that enhances both functionality and aesthetics in your building projects.

5-Knuckle Hinge, Full Mortise Standard Weight, Ball Bearing, 4.5in x 4.0in (4540), 1/4in Radius Corner, Ferrous Steel Base, Satin Chrome US26D/626, (NRP) Non-Removable Pin

Template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American national standards institute (ANSI).

Specifications:

• Hinge Function: 5 Knuckle ball bearing (BB)
• Hinge Type: Full mortise (1)
• Material Gauge: .134 ± .005 for 4-1/2" x 4", .134 ± .005 for 4-1/2" x 4-1/2"
• Height of Hinge: 4.50 (+.000/-.015) for 4-1/2" x 4", 4.50 (+.000/-.015) for 4 1/2" x 4-1/2"
• Width: 4.00 ± .015 for 4-1/2" x 4", 4.50 ± .015 for 4-1/2" x 4-1/2"
• 4.5" Standard Screw Size: FHMS – 12-24 x 1/2", FHWS – 12 x 1-1/4"
• Base Material:
• Brass (2) - polished and plated
• Stainless steel (5) - polished and satin finish
• Steel (8) - polished and plated, or Bonderized and prime coated for painting

Packaging Information:

• One hinge per plastic bag
• 3 hinges
• 1 screw pack per unit carton
• 16 unit carton
• 48 hinges per master shipping carton
• 1 screw pack includes all machine screws (24)
• 1/2 wood screws (12)
• ATMS & AWS also available

Features

• Width: 4.00 ± .015 for 4-1/2" x 4", 4.50 ± .015 for 4-1/2" x 4-1/2"
• Base Material:
• 4.5" Standard Screw Size: FHMS – 12-24 x 1/2", FHWS – 12 x 1-1/4"
• Stainless steel (5) - polished and satin finish
• Brass (2) - polished and plated
• Steel (8) - polished and plated, or Bonderized and prime coated for painting
• Height of Hinge: 4.50 (+.000/-.015) for 4-1/2" x 4", 4.50 (+.000/-.015) for 4 1/2" x 4-1/2"
• Hinge Type: Full mortise (1)
• Material Gauge: .134 ± .005 for 4-1/2" x 4", .134 ± .005 for 4-1/2" x 4-1/2"
• Hinge Function: 5 Knuckle ball bearing (BB)
