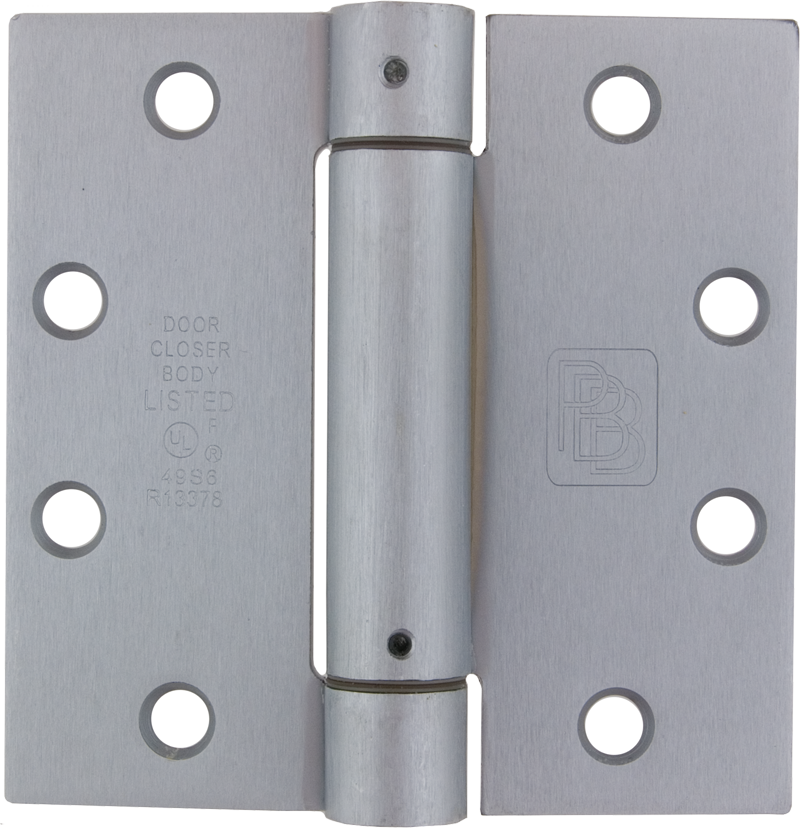

PBB SP81-US26D-4.5 X 4.5 4.5in x 4.5in Single Acting Spring Hinge, Full Mortise, Satin Chrome

PBB Inc SP81-US26D-4.5 X 4.5 Single Acting Spring Hinge is expertly designed to meet the rigorous standards set by the American National Standards Institute (ANSI). This full mortise hinge measures 4.5 inches by 4.5 inches and features a robust ferrous steel base with a sleek satin chrome finish, ensuring both durability and aesthetic appeal in any commercial application. Constructed with a material gauge of .134 ± .005, this hinge is engineered for lasting performance. The hinge's height and width are precisely manufactured to provide a seamless fit and reliable operation. The standard screw sizes included are FHMS – 12-24 x 1/2" and FHWS – 12 x 1-1/4", making installation straightforward and efficient. PBB Inc emphasizes the importance of using all spring hinges or a combination of spring hinges and ball bearing hinges for complete warranty protection. To ensure optimal functionality, be mindful that the use of gaskets for sound or smoke protection may require additional closing power. This hinge is packaged individually in a plastic bag, with three hinges and one screw pack per unit carton, making it convenient for contractors and builders. Elevate your hardware solutions with the reliability and quality of PBB Inc’s SP81-US26D hinge.

Single Acting Spring Hinge, Full Mortise Standard Weight, 4.5in x 4.5in (4545), Ferrous Steel Base, Satin Chrome US26D/652

Template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American national standards institute (ANSI).

Specifications:

• Hinge Function: Spring hinge (SP)
• Hinge Type: Full mortise (1)
• Material Gauge: .134 ± .005 for 4-1/2" x 4", .134 ± .005 for 4-1/2" x 4-1/2"
• Height of Hinge: 4.50 (+.000/-.015) for 4-1/2" x 4", 4.50 (+.000/-.015) for 4-1/2" x 4-1/2"
• Standard Screw Size: FHMS – 12-24 x 1/2", FHWS – 12 x 1-1/4"
• Base Material:
• Stainless Steel (5) - Polished and Satin Finish
• Steel (8) - Polished and Plated, or Bonderized and Prime Coated for Painting
• Width: 4.00 ± .015 for 4-1/2" x 4", 4.50 ± .015 for 4-1/2" x 4-1/2"
• Notes: For complete warranty protection use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges as this voids all factory warranties.
• Notes: Use of gasket for smoke or sound protection, wind condition or unbalanced air pressure may prevent door from latching. Additional closing power would be required. See installation instruction sheet.

Packaging Information:

• One hinge per plastic bag
• 3 hinges
• 1 screw pack per unit carton
• 16 unit carton or 48 hinges per master shipping carton
• 1 screw pack includes all machine screws (24)
• 1/2 wood screws (12)
• ATMS & AWS also available

Features

• Base Material:
• Steel (8) - Polished and Plated, or Bonderized and Prime Coated for Painting
• Notes: For complete warranty protection use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges as this voids all factory warranties.
• Hinge Type: Full mortise (1)
• Hinge Function: Spring hinge (SP)
• Material Gauge: .134 ± .005 for 4-1/2" x 4", .134 ± .005 for 4-1/2" x 4-1/2"
• Width: 4.00 ± .015 for 4-1/2" x 4", 4.50 ± .015 for 4-1/2" x 4-1/2"
• Standard Screw Size: FHMS – 12-24 x 1/2", FHWS – 12 x 1-1/4"
• Height of Hinge: 4.50 (+.000/-.015) for 4-1/2" x 4", 4.50 (+.000/-.015) for 4-1/2" x 4-1/2"
• Stainless Steel (5) - Polished and Satin Finish
• Notes: Use of gasket for smoke or sound protection, wind condition or unbalanced air pressure may prevent door from latching. Additional closing power would be required. See installation instruction sheet.

Resources

• Cut Sheet
• Installation Sheet
