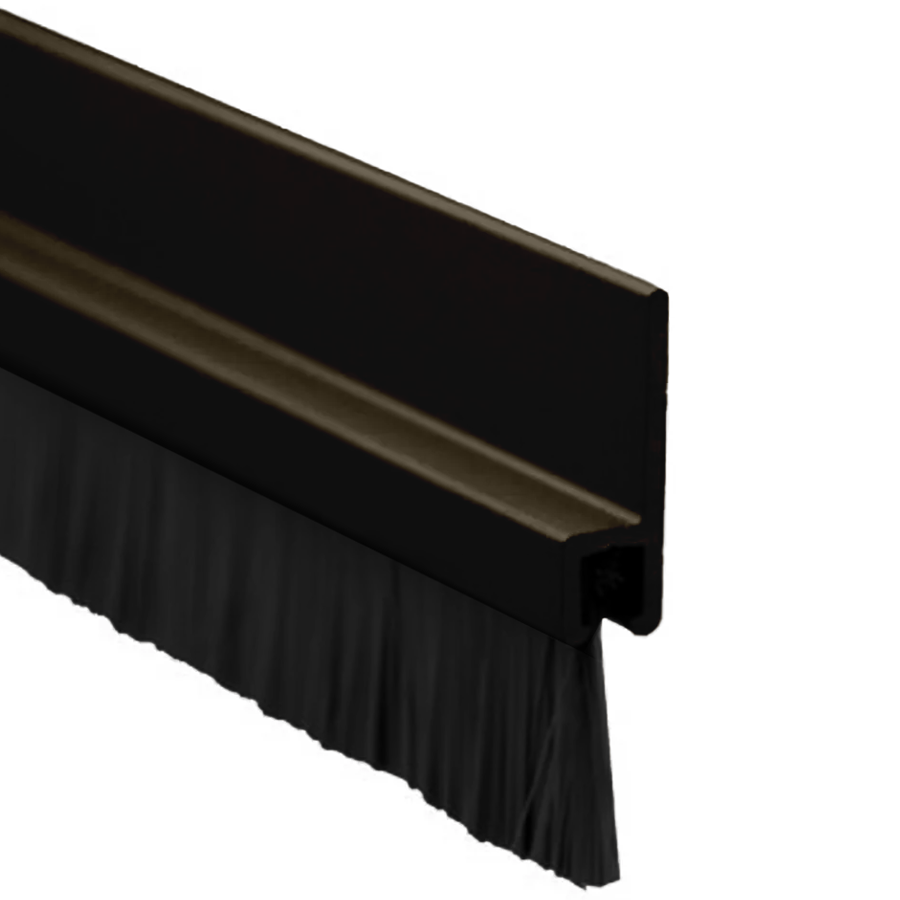

Pemko 18041DNB 96IN 3/8in Brush Meeting Stile (1 Side), 96in Dark Bronze Overall Height 1-1/8in

Pemko Manufacturing Co 18041DNB 96IN 3/8in Brush Meeting Stile offers a robust solution for sealing gaps between doors and floor surfaces. Designed with a sleek dark bronze finish, this 96-inch door sweep is made from durable aluminum and features a 3/8-inch nylon brush designed to effectively block out smoke, fumes, weather, and light infiltration. The innovative design includes a 3/4-inch high aluminum casing that is mounted directly to the bottom of the door, eliminating exposed screws for enhanced security. The brush’s compressed nylon filaments are arranged at a 90° angle to ensure optimal contact with the floor, allowing it to adapt to slightly uneven surfaces seamlessly. This door sweep remains flexible in extreme temperatures, functioning effectively down to -40°F and withstanding temperatures above 400°F. Perfect for both hollow metal and wood doors, the Pemko 18041DNB is suitable for overhead, sliding, and automatic doors. The installation process is simplified by slotted holes that allow for easy adjustments. Additionally, this product naturally repels rodents and spiders, making it an ideal choice for both residential and commercial applications. Enhance your door’s functionality and security with this reliable and long-lasting brush door sweep.

3/8in Brush Meeting Stile (1 Side), 96in Dark Bronze Overall Height 1-1/8in

The 18041 brush door sweep is applied to the face of the door and seals the gap between the door and floor surface. It features a clear anodized aluminum casing measuring 3/4" in height, with a brush portion that has a height of 3/8". The door sweep is 84" long and comes with a nylon brush.

Features:

• Fitted with a nylon brush or soft brush to seal gaps under the door
• Compressed nylon filaments are set in a 90° angle aluminum casing for direct contact with the floor surface
• The casing is applied to the bottom of the door which eliminates exposed mounting screws for additional security
• Slotted holes make it easy to adjust after installation
• Available as .375" nylon brush (NB), or as .375" soft brush (SB)
• Brush remains flexible down to -40°F and has a melting point above 400°F
• Use on overhead, section, sliding, and automatic doors
• For hollow metal or wood door applications
• Nylon brush ("NB") insert - item number P516041 (available in gray and black)
• Soft brush ("SB") insert - item number P3 (available in gray or black)
• Door sweeps and brush seals reduce the infiltration of smoke, fumes, weather and light
• Smooth gliding brushes automatically adjust to slightly uneven floors
• UV stable, dependable, long-lasting and cost effective
• Naturally repels rodents and spiders

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 3/4" (19.1 mm)
• Width: 1/4" (6.4 mm)
• Weight: 0.13 lbs

Finishes:

• C - Clear anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• SN - Satin nickel anodized aluminum

Resources

• Cut Sheet
