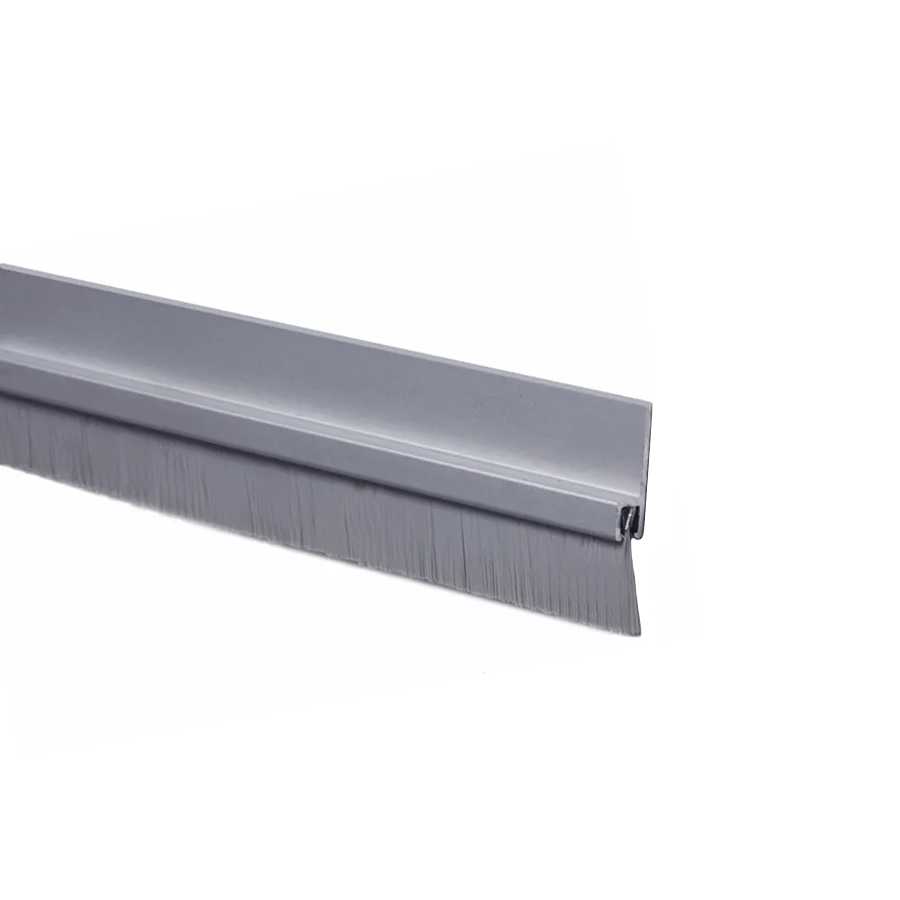

Pemko 18062CNB 84IN 5/8in Brush Meeting Stile (1 Side), 84in Clear/Aluminum, Overall Height 1-1/2in

Pemko Manufacturing Co 18062CNB 84IN 5/8in Brush Meeting Stile offers a robust solution for sealing gaps beneath and around doors, ensuring enhanced energy efficiency and protection against the elements. Crafted with a durable 6063-T6 aluminum alloy retainer and flexible compressed nylon filaments, this brush seal is designed to conform to irregular surfaces, providing a tight seal that effectively reduces the infiltration of smoke, fumes, weather, and light. With an overall height of 1-1/2 inches, the nylon brush gasketing measures 5/8 inch, making it suitable for both hollow metal and wood door applications, as well as overhead, section, sliding, and automatic doors. The brush operates smoothly, automatically adjusting to slightly uneven floors, making it an ideal choice for various environments. The Pemko 18062CNB is UV stable, long-lasting, and cost-effective, naturally repelling rodents and spiders. Pre-punched slotted holes facilitate easy installation with the included fasteners, ensuring a secure fit. Available in a clear anodized finish, this product promises both functionality and aesthetic appeal. Specifications include a maximum length of 185 inches and a minimum of 24 inches, making it customizable to your needs. Elevate your door sealing solutions with the reliability of Pemko Manufacturing Co.

5/8in Brush Meeting Stile (1 Side), 84in Clear/Aluminum, Overall Height 1-1/2in

The 18062_NB nylon brush seal with 180 degree retainer and 5/8" brush is designed to effectively seal the gap underneath and around doors. The flexible brush conforms to irregular surfaces, ensuring a tight seal. It comes in various finishes and can be custom cut to size. Easy installation with provided screws and slotted holes.

Features:

• Contains compressed nylon filaments encased in a 6063-T6 aluminum alloy and temper retainer
• Nylon brush gasketing is .625" and aluminum casing is .875"
• Brush is flexible from -40°F to a melting point above 400°F
• Punched with slotted holes for adjustment
• For hollow metal and wood door applications
• Use on overhead, section, sliding, and automatic doors
• Brush seals reduce the infiltration of smoke, fumes, weather and light
• Smooth gliding brushes automatically adjust to slightly uneven floors
• UV stable, dependable, long-lasting and cost effective
• Naturally repels rodents and spiders

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 7/8" (22.2 mm)
• Width: 1/4" (6.4 mm)
• Weight: 0.15 lbs
• Height Including Brush: 1-1/2" (38.1 mm)

Finishes:

• C - Clear anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• PW - Painted white aluminum
