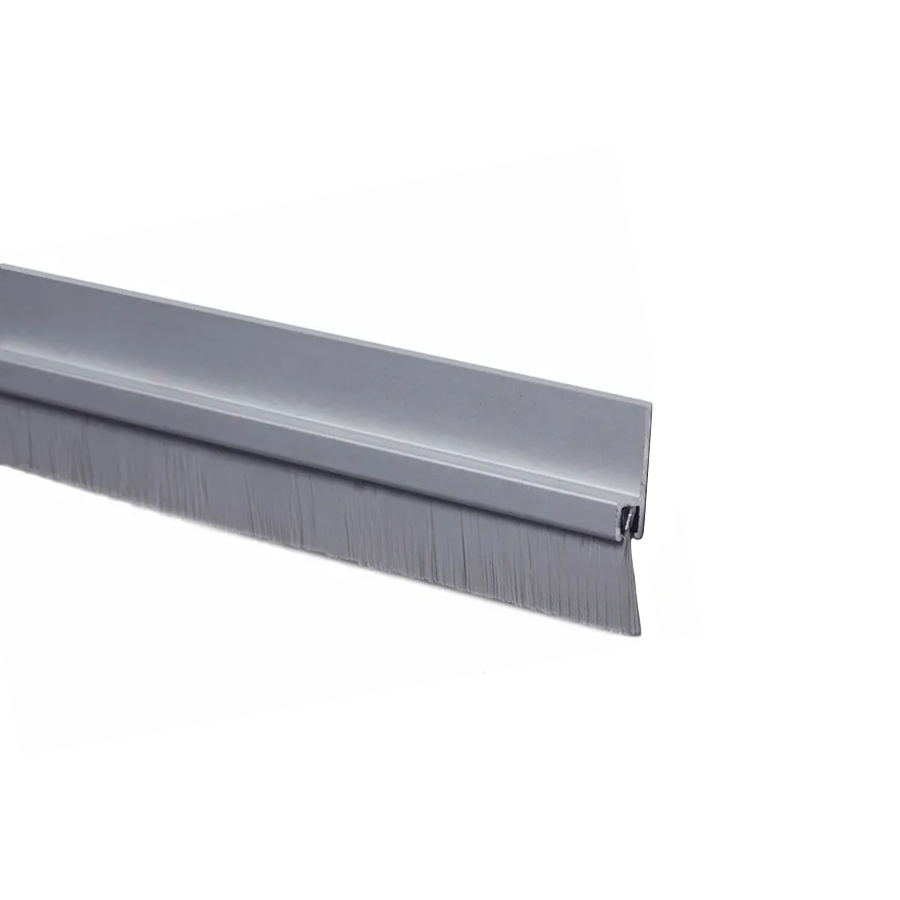

Pemko 18062CNB 96IN 5/8in Brush Meeting Stile (1 Side), 96in Clear/Aluminum, Overall Height 1-1/2in

Pemko Manufacturing Co 18062CNB 96IN 5/8in Brush Meeting Stile is expertly engineered to create a reliable seal around doors, effectively reducing the infiltration of smoke, fumes, weather, and light. This innovative brush seal features a 180-degree retainer and a 5/8" flexible nylon brush that adapts to irregular surfaces, ensuring a snug fit for hollow metal and wood door applications. Constructed with compressed nylon filaments encased in durable 6063-T6 aluminum alloy, this product stands up to extreme temperatures, remaining flexible from -40°F to over 400°F. It’s designed for easy installation, with slotted holes allowing for adjustments during setup. With an overall height of 1-1/2" and a width of 1/4", this seal efficiently accommodates various door types, including overhead, section, sliding, and automatic doors. The Pemko 18062CNB is also UV stable, cost-effective, and naturally repels rodents and spiders, ensuring a long-lasting solution for your security needs. Available in multiple finishes such as clear anodized aluminum and dark bronze, it seamlessly integrates into any design aesthetic. With a maximum length of 185" and easy custom cutting, this brush meeting stile is a versatile choice for professionals and homeowners alike.

5/8in Brush Meeting Stile (1 Side), 96in Clear/Aluminum, Overall Height 1-1/2in

The 18062_NB nylon brush seal with 180 degree retainer and 5/8" brush is designed to effectively seal the gap underneath and around doors. The flexible brush conforms to irregular surfaces, ensuring a tight seal. It comes in various finishes and can be custom cut to size. Easy installation with provided screws and slotted holes.

Features:

• Contains compressed nylon filaments encased in a 6063-T6 aluminum alloy and temper retainer
• Nylon brush gasketing is .625" and aluminum casing is .875"
• Brush is flexible from -40°F to a melting point above 400°F
• Punched with slotted holes for adjustment
• For hollow metal and wood door applications
• Use on overhead, section, sliding, and automatic doors
• Brush seals reduce the infiltration of smoke, fumes, weather and light
• Smooth gliding brushes automatically adjust to slightly uneven floors
• UV stable, dependable, long-lasting and cost effective
• Naturally repels rodents and spiders

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 7/8" (22.2 mm)
• Width: 1/4" (6.4 mm)
• Weight: 0.15 lbs
• Height Including Brush: 1-1/2" (38.1 mm)

Finishes:

• C - Clear anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• PW - Painted white aluminum

Resources

• Cut Sheet
