Pemko 217AV 36IN Door Shoe 36in Aluminum

Pemko Manufacturing Co 217AV 36IN Door Shoe is an essential accessory for enhancing the performance and longevity of your doors. Designed to fit 1.75" thick doors, this U-shaped door shoe effectively fills gaps of up to half an inch, ensuring optimal insulation against unwanted sound and light. With its fire and smoke rating, it provides peace of mind while enhancing privacy. Crafted from durable aluminum, the 217AV door shoe is customizable, with lengths ranging from 24" to 185", allowing you to order the perfect size for your needs. Choose between two types of inserts: PemkoPrene or Eco-V Vinyl, both offering the same shape and size to suit your preferences. The door shoe features slotted holes for easy adjustments and is designed for a recommended compression of 1/16", ensuring a snug fit that blocks unwanted airflow. Available in a variety of finishes, including Mill, Dark Bronze, and Satin Nickel, the Pemko 217AV not only provides functional benefits but also complements the aesthetic of your space. Whether for commercial or residential use, this door shoe is a smart choice for those looking to enhance their doors' performance and overall look.

Door Shoe 36in Aluminum

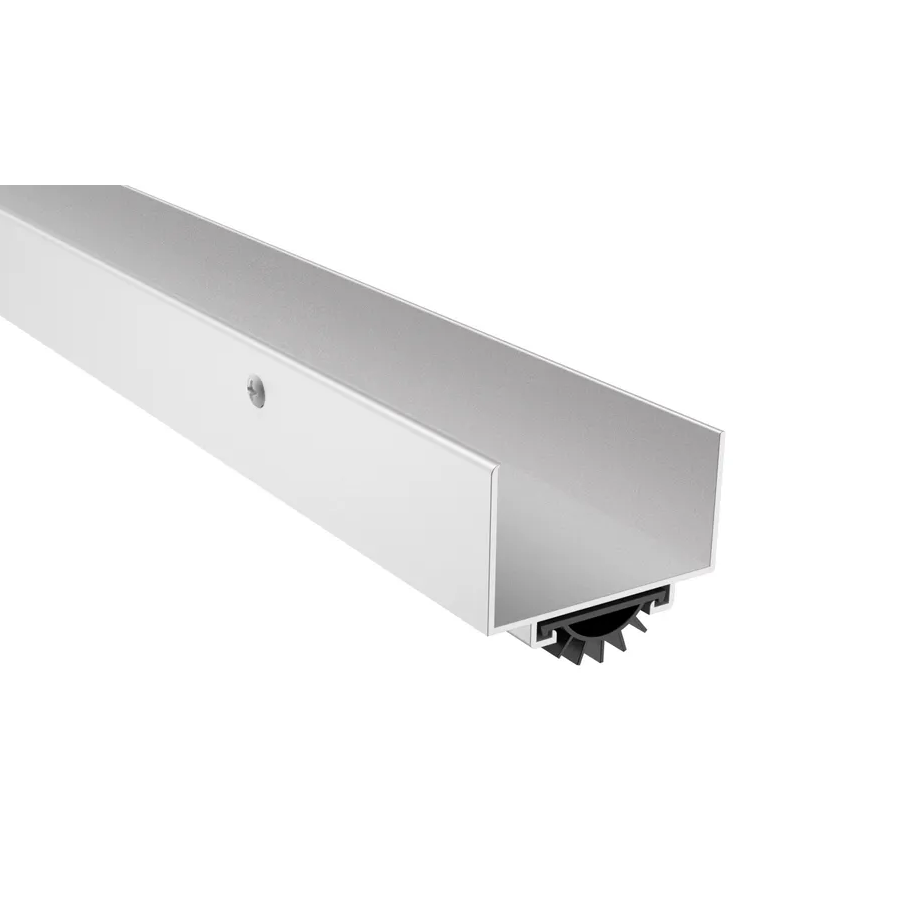

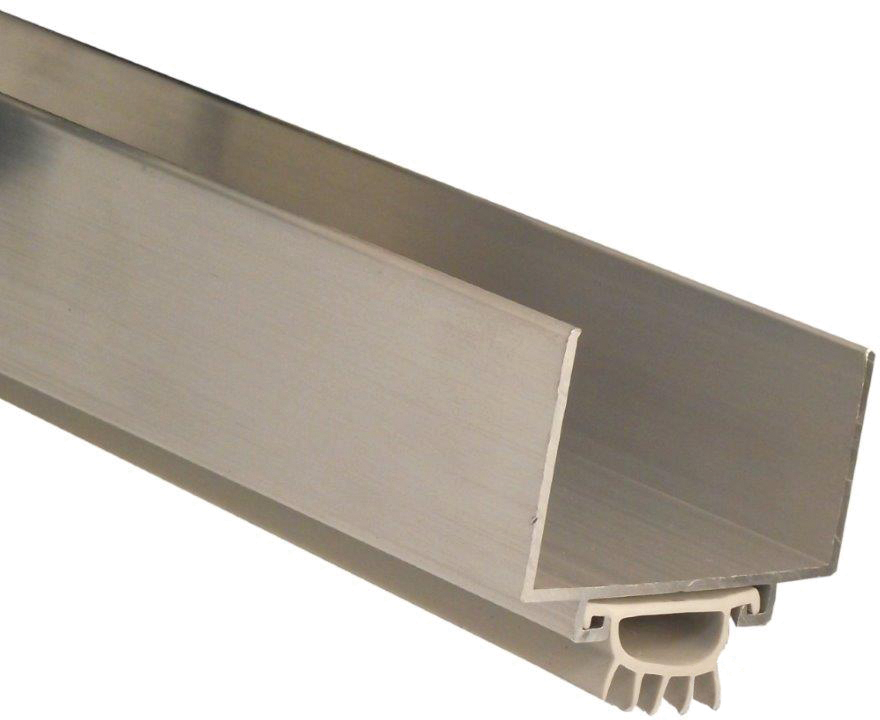

The 217 series U-shaped door shoe is designed to protect and seal the bottom of 1.75" thick doors. It fills gaps of up to half an inch and provides insulation against sound and light. The door shoe is fire and smoke rated and comes in a choice of PemkoPrene or Eco-V Vinyl inserts. It is custom cut to size and priced per foot.

Features:

• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Half notch (1/2") and Full notch (1/2") available. Other widths offered on half notch, please specify when ordering
• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Provides protection for the bottom of the door
• Blocks unwanted airflow and light, and provides privacy

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1-1/8" (28.6 mm)
• Width: 1-3/4" (44.5 mm)
• Total Height with Insert: Approx. 1-5/8" (41.3 mm)

Finishes:

• A - Mill finish aluminum
• BDG - Bright dip gold anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized aluminum
• PW - Painted white aluminum
• SN - Satin nickel anodized aluminum

Resources

• Cut Sheet
