Pemko 222AV 48IN Door Shoe 48in Aluminum

Pemko Manufacturing Co 222AV 48IN Door Shoe is an essential accessory designed specifically for hollow metal doors, enhancing both functionality and aesthetics. This U-shaped door shoe effectively seals gaps up to .25", protecting the bottom of your door while maintaining a clean look. Crafted from durable aluminum, it ensures longevity and reliability. Available in various finishes, including mill finish aluminum, dark bronze anodized, and gold anodized aluminum, the 222AV can complement any door style. It can also be custom cut to meet your specific size requirements, with a maximum length of 185" and a minimum of 24". Note that it comes with a 1/4" undercut from the ordered length unless specified otherwise. The door shoe features slotted holes for easy adjustment and is compatible with PemkoPrene or Eco-V Vinyl inserts, both providing excellent fire, smoke, air infiltration, and sound ratings. This makes it an ideal choice for enhancing privacy and blocking unwanted airflow and light. At a height of 1 5/8" and a width of 1-3/4", the Pemko 222AV 48IN Door Shoe is not only functional but also designed to blend seamlessly with your door's appearance. Elevate your security and comfort with this reliable door shoe.

Door Shoe 48in Aluminum

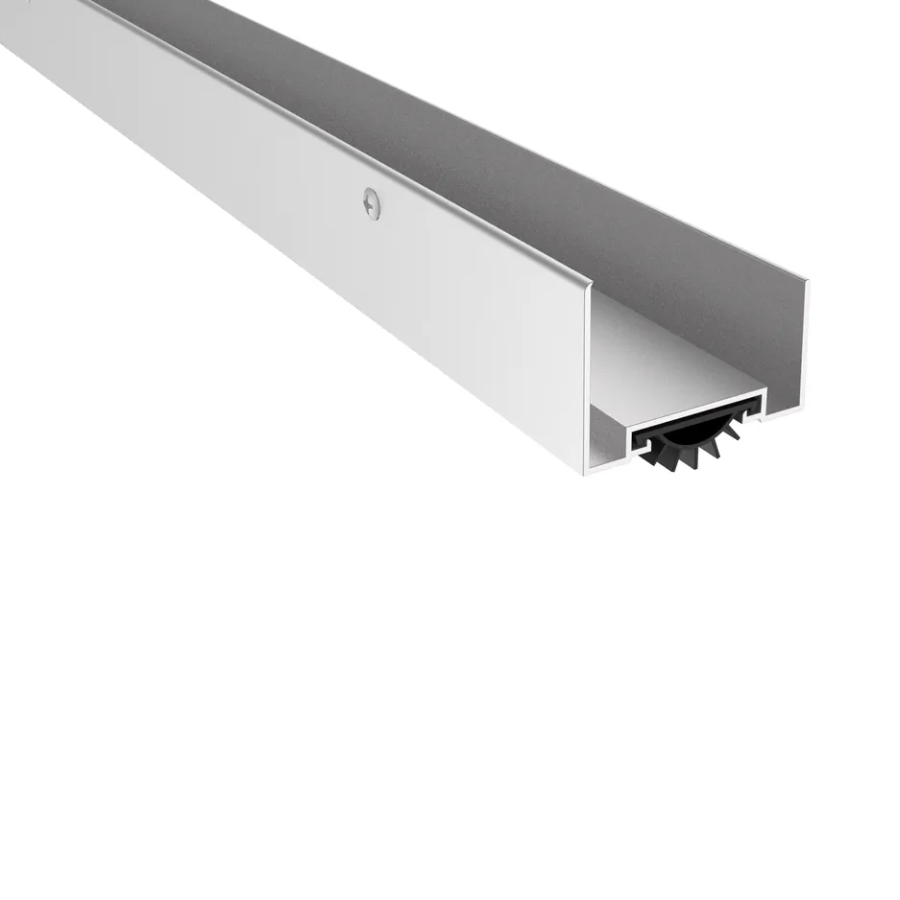

The 222 series U-shaped door shoe is designed to protect the bottom of hollow metal doors and seal the door gap up to .25". It is available in various finishes and can be custom cut to size. With options for PemkoPrene or Eco-V Vinyl inserts, this door shoe is fire, smoke, air infiltration, and sound rated. It can also be UL green guard gold certified.

Features:

• For Hollow Metal doors with inverted bottom channel
• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering
• Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
• Provides protection for the bottom of the door
• Seals the area under a door with minimal effect on the appearance of the face of the door
• Blocks unwanted airflow and light, and provides privacy

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1 5/8"
• Width: 1-3/4" (44.5 mm)
• Total Height with Insert: Approx. 1-5/8" (41.3 mm)

Finishes:

• A - Mill finish aluminum
• D - Dark bronze anodized
• G - Gold anodized aluminum
