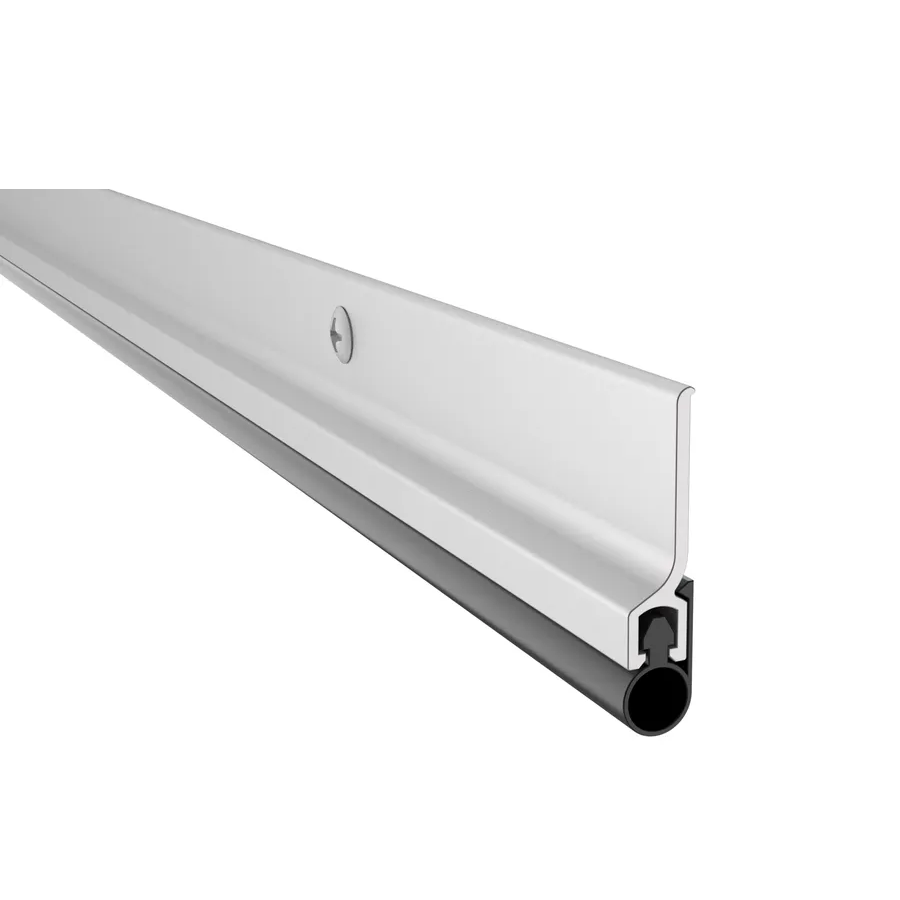

Pemko 303AV7284 72" x 84" Standard Perimeter Gasketing with Vinyl Mill Finish Aluminum Finish

• TYPE: Astragal and Meeting Stile Gasketing Split Astragal
• FINISHES:
• A (Mill Finish Aluminum)
• BDG (Bright Dip Gold Anodized Aluminum)
• D (Dark Bronze Anodized Aluminum)
• G (Gold Anodized Aluminum)
• PW (Painted White Aluminum)
• SN (Satin Nickel Anodized Aluminum)
• PROFILE WIDTH: 7/8" (22.2 mm) (x2)
• TOTAL WIDTH WITH INSERT: 1-1/8" (28.6 mm) (x2)
• HEIGHT: 1/4" (6.4 mm)
• Pemko Products Provide an Energy Efficient Door Solution
• Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
• Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
• Mounting Hardware Included
• Limited 5 Year Warranty
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
• Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.
• Seal depth is provided on each illustration.
• Stainless steel fasteners are standard.
• Other fasteners are available.
• Model 303_ is available with self-adhesive, two-sided tape (TST) and tek screws (3 slotted holes per part) for easy installation.
• To obtain this option, add "TST" to the end of the part number when ordering (i.e. 303AS36TST).
• This perimeter gasketing is supplied with a Eco-V® ("V") insert - item number EV47 (available in gray, black, and white).
