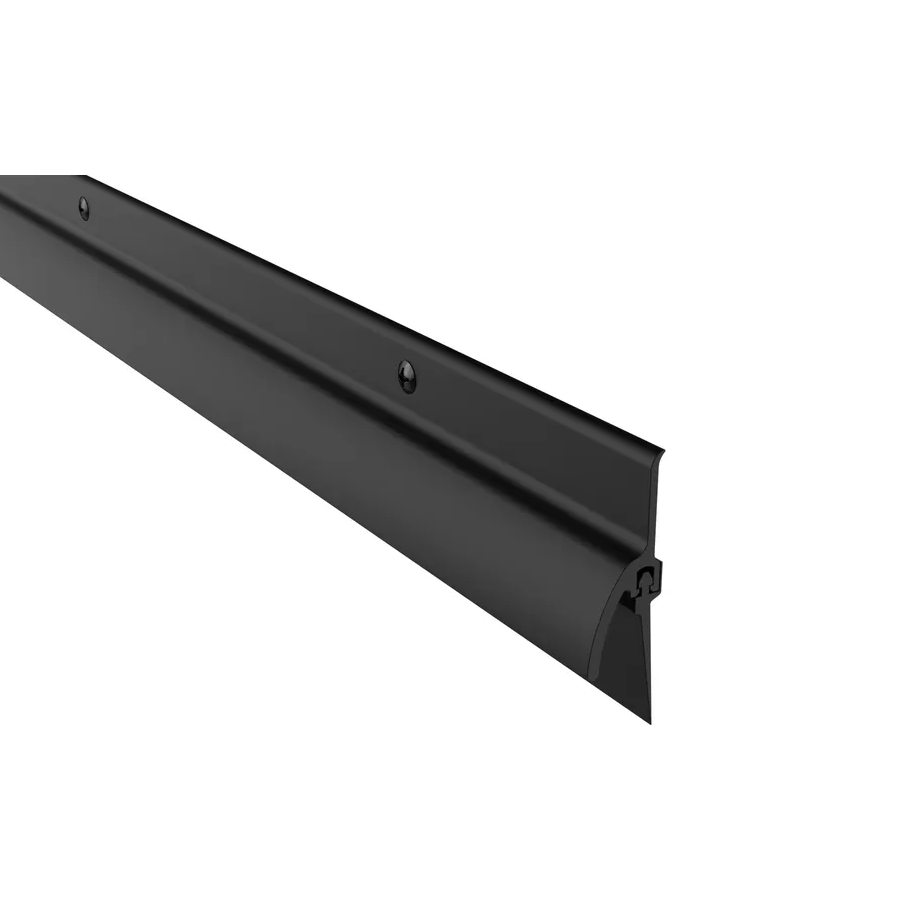

Pemko 345BSPV 36IN 36in Door Bottom Sweep, Rain Guard, Smoke Tested, Fire Rated, Black Suede

Pemko Manufacturing Co 345BSPV 36IN Door Bottom Sweep with Rain Guard is expertly designed for doorways that require robust protection against the elements. This surface plate door sweep features a rain drip that extends 0.875 inches to the floor, effectively deflecting rain away from the door bottom while maintaining a sleek profile with 0.625 inches above the door. Crafted from high-quality aluminum, this unit not only boasts a black suede powder-coated finish but also comes with an Eco-V insert, ensuring low VOC emissions and a commitment to sustainability. The 345BSPV is smoke tested and fire rated under UL10C positive pressure, providing peace of mind for safety-conscious users. Key features of this door sweep include slotted holes for easy adjustment, which allows for a recommended gasket compression of 1/16 inch, enhancing the product's performance. The design minimizes infiltration of light, air, wind, rain, and snow, effectively reducing heat loss and controlling the entry of smoke and fumes. Available in multiple finishes and lengths ranging from 24 inches to a maximum of 185 inches, the Pemko 345BSPV is a versatile choice for any building professional or knowledgeable homeowner looking to enhance their doorway's efficiency and protection.

36in, Door Bottom Sweep with Rain Guard, Smoke Tested, Fire Rated UL10C Positive Pressure, Greenguard Gold, Black Suede with Black Eco-V Insert

The 345 series offers a surface plate door sweep with a rain drip, designed for doorways where deflecting the elements is essential. With a straightforward rain deflector plate extending 0.875" to the floor and 0.625" above the door bottom.

Features:

• Slotted holes for easy adjustment
• Low VOC Emission
• Recommended compression of gasket is 1/16"
• Rain drip is ideal for deflecting rain away from the bottom of door
• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
• Available without gasket

Specifications:

• Base Material: Aluminum, Brass
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1-1/2" (38.1 mm)
• Width: 9/16"
• Total Height with Insert: 2" (50.8 mm)

Finishes:

• A - Mill finish aluminum
• BSP - Black suede powder coated aluminum
• C - Clear anodized aluminum
• D - Dark bronze anodized
• WSP - White suede powder coated aluminum
• 10BE - Satin bronze powder coated aluminum
