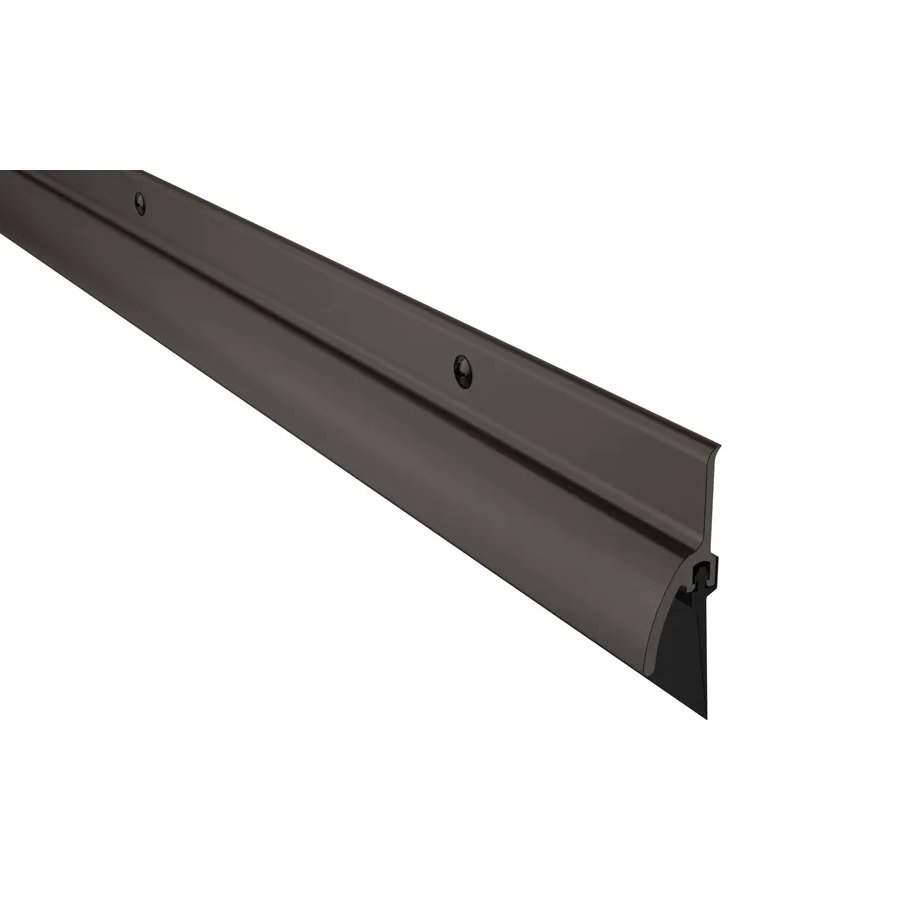

Pemko 345DV 36IN 36in Door Bottom Sweep, Rain Guard, Fire Rated UL10C, Dark Bronze, Black Insert

Pemko Manufacturing Co 345DV 36IN Door Bottom Sweep with Rain Guard is engineered to provide exceptional protection against the elements, making it an essential addition for any doorway. This surface plate door sweep features a rain drip designed to deflect water away, with a height of 1-1/2" and a total height of 2" when fitted with the Eco-V insert. The sweep extends 0.875" to the floor and 0.625" above, ensuring comprehensive coverage. Constructed from dark bronze anodized aluminum, this door sweep not only offers durability but also a sleek finish that complements various architectural styles. Its design reduces the infiltration of light, air, wind, rain, and snow while controlling smoke and fumes, enhancing energy efficiency and safety. The 345DV is equipped with slotted holes for easy adjustments, ensuring a precise fit. It boasts low VOC emissions, making it an environmentally friendly choice. Available lengths range from 24" to 185", allowing for customization based on your specific needs. Whether you opt for the Eco-V or PemkoPrene insert, both provide the same high-quality performance. Upgrade your door's effectiveness with the Pemko 345DV 36IN Door Bottom Sweep and enjoy peace of mind against the elements.

36in, Door Bottom Sweep with Rain Guard, Smoke Tested, Fire Rated UL10C Positive Pressure, Dark Bronze Anodized Aluminum with Black Eco-V Insert

The 345 series offers a surface plate door sweep with a rain drip, designed for doorways where deflecting the elements is essential. With a straightforward rain deflector plate extending 0.875" to the floor and 0.625" above the door bottom.

Features:

• Slotted holes for easy adjustment
• Low VOC Emission
• Recommended compression of gasket is 1/16"
• Rain drip is ideal for deflecting rain away from the bottom of door
• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
• Available without gasket

Specifications:

• Base Material: Aluminum, Brass
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1-1/2" (38.1 mm)
• Width: 9/16"
• Total Height with Insert: 2" (50.8 mm)

Finishes:

• A - Mill finish aluminum
• BSP - Black suede powder coated aluminum
• C - Clear anodized aluminum
• D - Dark bronze anodized
• WSP - White suede powder coated aluminum
• 10BE - Satin bronze powder coated aluminum
