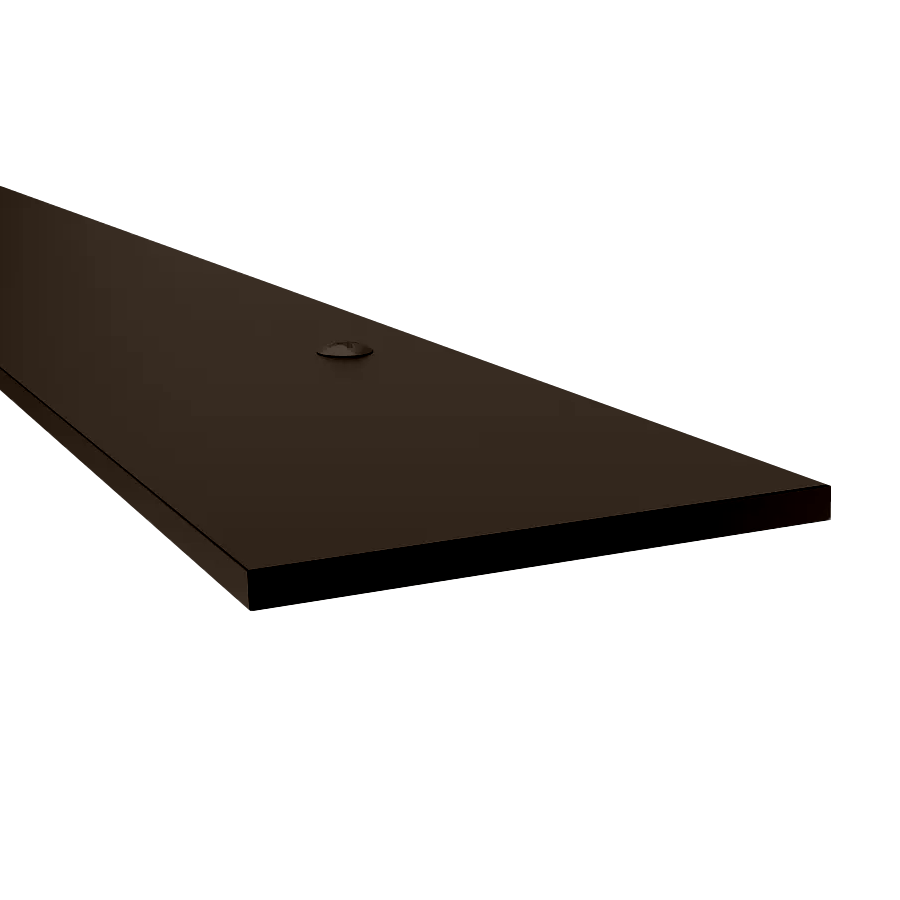

Pemko 357D 84IN Astragal 2in Wide 84in Dark Brown

Pemko Manufacturing Co 357D 84IN Astragal offers a premium solution for double-door entryways, designed to enhance both security and energy efficiency. With a width of 2 inches and a height of 1/8 inch, this overlapping meeting stile system effectively covers gaps between pairs of doors, making it an ideal choice for commercial and residential applications alike. This model features a surface-applied design that allows for easy installation without the need for drilling, thanks to the ND option. The 357D is custom cut to size and can be paired with optional Silicone teardrop weatherstrip to further enhance its sealing properties. It not only prevents drafts, light, smoke, and moisture infiltration but also complies with smoke, fire, and air infiltration standards, ensuring a safe and comfortable environment. The astragal increases security by making it more difficult to pry the door open, while decreasing noise levels between different areas of a building. It is suitable for both square and bevel door edges and is available in a striking dark bronze finish, among other options. With a maximum length of 144 inches and a robust installation using #10 x 1" sheet metal screws, the Pemko 357D 84IN Astragal is a reliable choice for any double-door system.

Astragal 2in Wide 84in Dark Brown

The 357 overlapping meeting stile system is a high-quality solution for double-door entryways. This system boasts versatile models, such as the ND option requiring no drilling, or the inclusion of the S88 adhesive gasketing. It prevents drafts, light, smoke, and moisture from infiltrating while providing a seamless seal between the doors. It is custom cut to size and can be used with optional Silicone teardrop weatherstrip for better sealing properties. This system is compliant with smoke, fire, and air infiltration standards. This astragal can be leadlined.

Features:

• Surface applied
• Covers gaps between pairs of doors
• Applied to single active door in a pair of double doors
• Help save energy by sealing gaps
• Custom cut to size
• Increases security by making it more difficult to pry the door open
• Installation on fire doors must meet NFPA 80 requirements
• Decreases noise levels between different areas of a building
• Door coordinator needed when both doors are active

Specifications:

• Door Edge: Square, Bevel
• Fasteners: Sheet Metal Screw #10 x 1"
• Handing: Non-handed
• Maximum Length: 144"
• Minimum Length: 80"
• Height: 1/8"
• Width: 2" (50.8 mm)

Finishes:

• C - Clear anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized aluminum
• SP - Galvannealed Steel
• SN - Satin nickel anodized aluminum
• BSP - Black suede powder coat

Resources

• Cut Sheet
