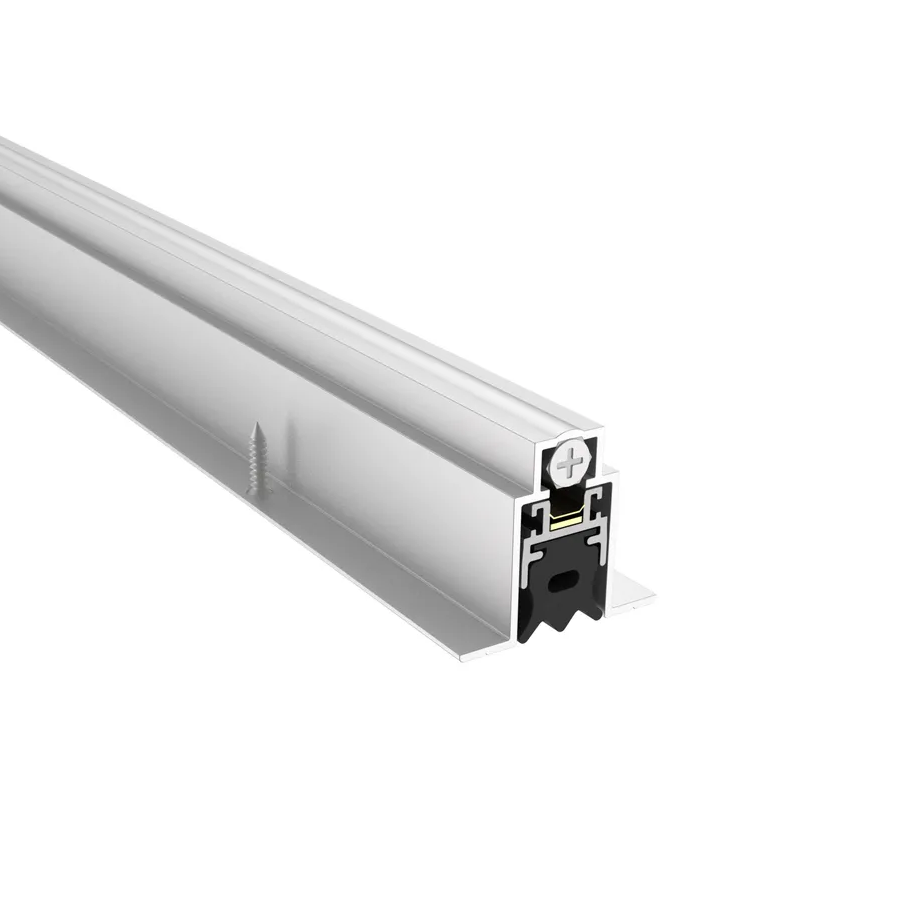

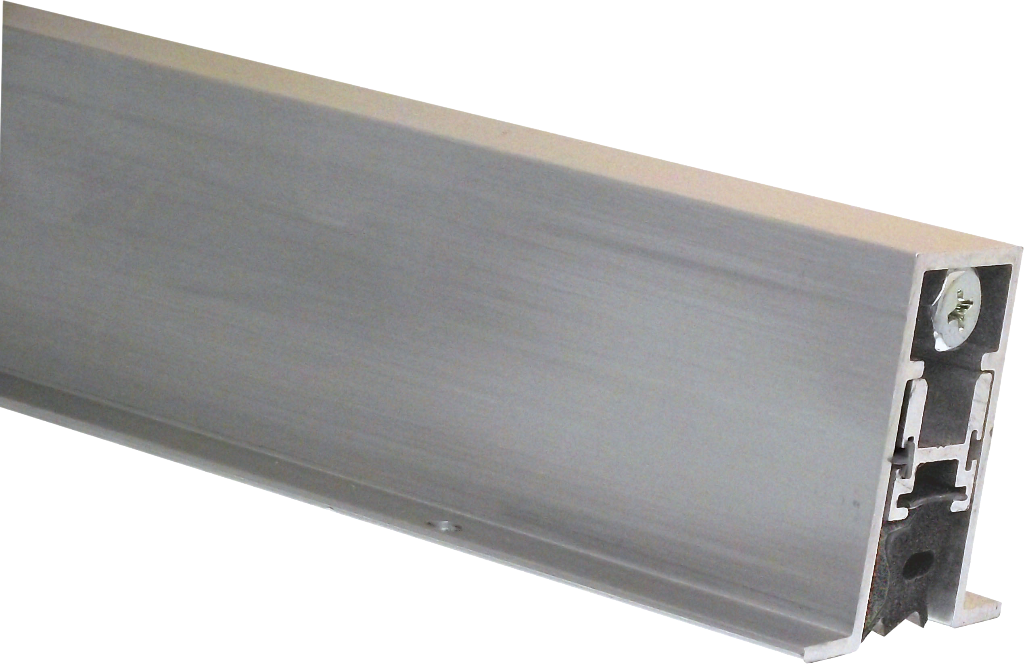

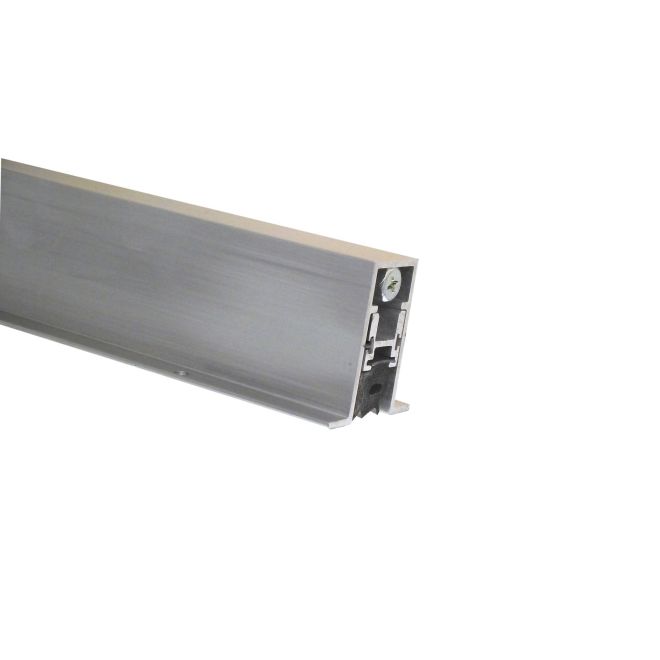

Pemko 434ARL36 36" (3') Full Mortise Automatic Door Bottom features a robust design crafted from anodized aluminum and sponge neoprene, ensuring optimal weatherization for any doorway. This door bottom not only enhances energy efficiency but also provides a reliable seal against drafts, dust, and moisture, making it an essential component for both residential and commercial applications. With a flange length of 36 inches and a thickness of 27/32 inches, the Pemko 434ARL36 is engineered to fit seamlessly into standard door frames. The black neoprene sponge insert measures 36" x 3/4", delivering a snug fit that effectively blocks unwanted air and sound infiltration. Additionally, the mill finish aluminum offers durability and resistance to corrosion, ensuring long-lasting performance. Installation is straightforward, with mounting hardware included, making it a practical choice for builders and contractors alike. The product is rigorously tested to meet or exceed industry standards, offering peace of mind with its limited 5-year warranty. Choose the Pemko 434ARL36 for a reliable and efficient solution in weatherstripping that stands up to the demands of modern architecture and design, while also ensuring compliance with ADA regulations.
36" (3') Full Mortise Automatic Door Bottom with Sponge Neoprene Mill Finish Aluminum Finish
Since 1952, the Pemko name has been known as a key manufacturer in weatherstripping products. Over the years as an ASSA ABLOY Group brand, we have expanded our product line into a full line of architectural door accessory products to include thresholds, fire/smoke gaskets, door bottoms, perimeter gasketing, brush seals, astragals, continuous geared hinges, fire and life-safety products, lites and louvers, and sliding door hardware. The Pemko product line offers sound-tested, smoke-labeled, fire-labeled, skid resistant, and ADA-compliant products, and aggressively pursues new product development to create solutions for new applications and requirements.
AWS_ QUICKSHIP: Yes
BHMA Grade: Grade 1
Category: Weatherization
Commercial Residential: Commercial
Dimension: 36" (3')
Fasteners: Wood Screw
Finish: Mill Finish Aluminum
Finish Code: A
Finish Description: Mill Aluminum
Finish Family: Matte Silver
Flange Length: 36"
Flange Material: Anodized Aluminum
Flange Thickness: 27/32"
Flange Width: 1-11/32"
Hazardous Material: NO
Insert Color: Black
Insert Material: Neoprene Sponge
Insert Size: 36" x 3/4"
Insert Type: Seal
Installation: Commercial
Length: 36in.
Manufacturer Warranty: Limited 5 Year Warranty
Material: Anodized Aluminum and Sponge Neoprene
No Of Inners: 1
Order_ Qty: 1
Projection: 27/32"
Quickship: Yes
SKU: 434ARL36
Series: Door Bottoms
Size: 27/32" x 1-5/16"
Subcategory: Weatherstripping
Subtype: Weatherstripping
Type: Weatherization
Width: 1-5/16in.
