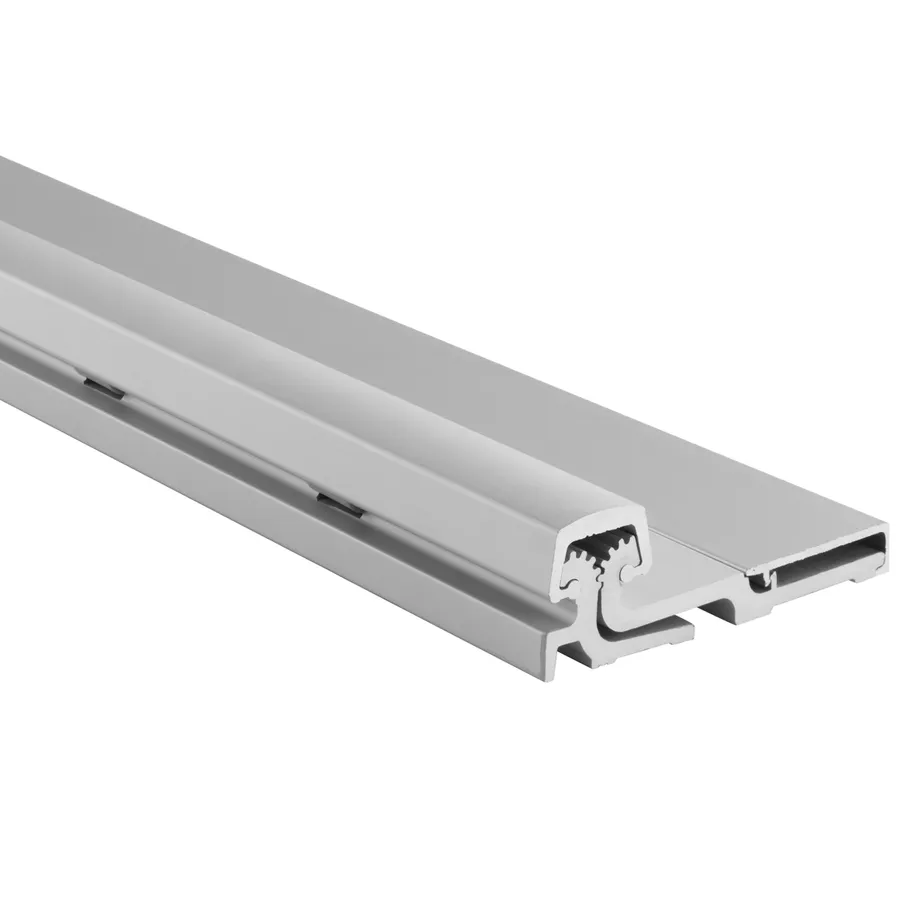

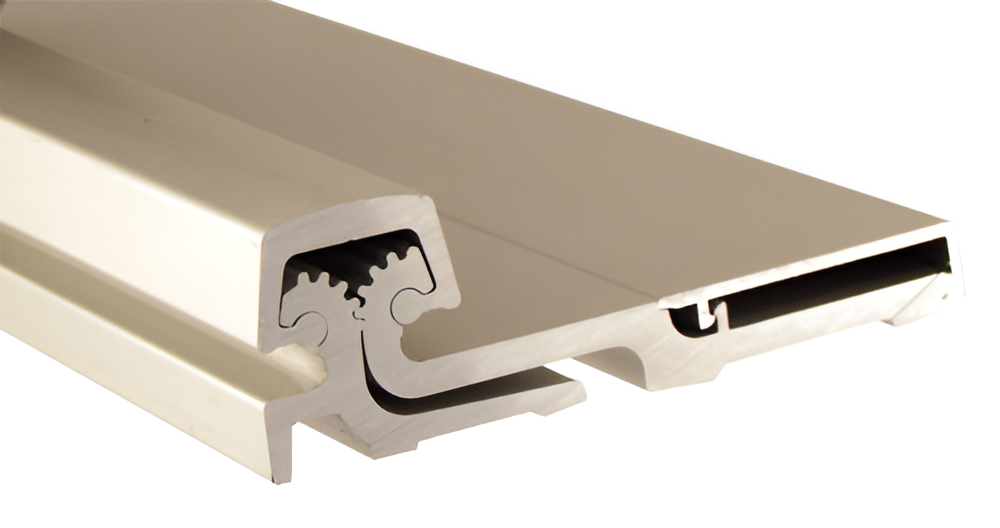

Pemko CFSCP 83" Full Surface Hinge, Clear

• C - Clear Anodized Aluminum
• D - Dark Bronze Anodized Aluminum
• SN - Satin Nickel Anodized Aluminum, (Special Order Finish)
• BL - Black Anodized Aluminum, (Special Order Finish)
• PW - Painted White Aluminum, (Special Order Finish)
• G - Gold Anodized Aluminum, (Special Order Finish)
• Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces.
• Fasteners - Frame Portion - Fasteners are No. 12-24 x 7/16" #10 Head Pan Head Type C threadforming, no tapping required.
• Standard model: 12 fasteners required for each leaf.
• Wood screws available on request (specify on order).
• Fasteners - Door Portion - a. Thru-bolt - 1/4-20 x 1-5/8". - Standard Duty Hinges - 4 required. - b. Shoulder Bolt - 1/4-20 x 1" PCH. - Standard Duty Hinges - 4 required. - c. Pan Head Self Drilling #12 x 3/4". - Standard Duty Hinges - 6 required.
• Standard duty hinges conform to Grade 3-150 and Grade 3-300 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006.
• Tested and certified by Underwriters Laboratories Inc. (USA and Canada) to standard UL10B, UL10C and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. x 10 ft. 0 in. and 8 ft. 0 in. x 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction.
• Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream.
• All hinges meet criteria of UBC 7.2 for positive pressure.
• Special FirePins are only required on 3-Hour (A-Label) assemblies.
• Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80.
• PemkoHinge® products are guaranteed for the life of the opening against defects in material or workmanship with the exception of AL, RS, standard duty and Grade 3 hinges, which carry a 10 year warranty.
• Width: 1-3/16" (30.2 mm) (frame side - leaf).
• Width: 2" (50.8 mm) (door side - leaf).
• Width: 3-3/16" (80.9 mm) (total width of hinge).
• Cap Width: 25/32" (19.8 mm).
• Height: 3/4" (19.1 mm) (total height of hinge).
