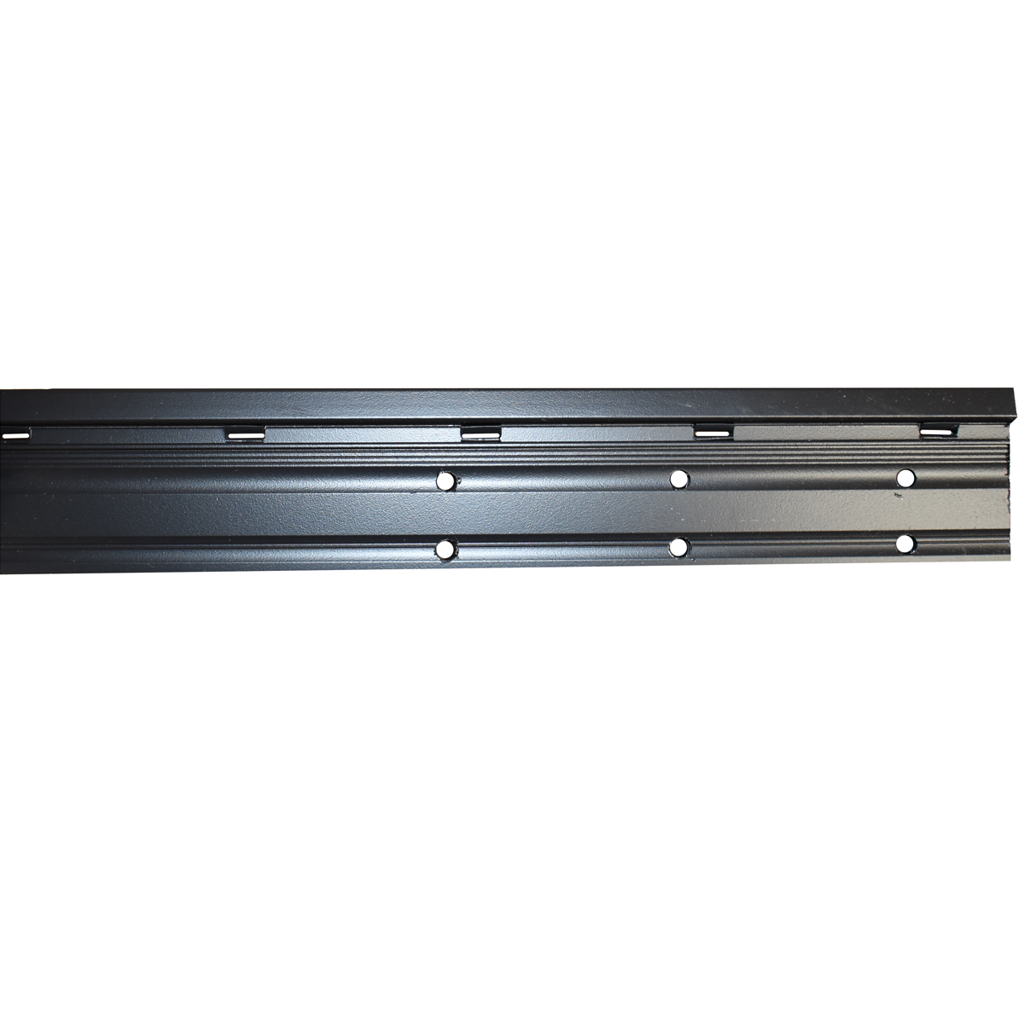

Pemko KBSPFM83HD1 Kawneer Full Mortise Continuous Hinge HD 83in Clear

Pemko Manufacturing Co KBSPFM83HD1 Kawneer Full Mortise Continuous Hinge HD 83in Clear is a robust solution designed for high-performance applications in both commercial and residential settings. Crafted from durable aluminum, this full surface continuous hinge is engineered for swinging fire doors, accommodating hollow metal, tin-clad, sheet metal, and steel-covered composite types rated up to 3 hours. With a hinge height of 6' 11" and a maximum door width of 4', it provides exceptional support for heavy-weight doors. This hinge is available in both standard and heavy-duty versions, ensuring versatility for various installation needs. Its non-handed design makes it easy to install on right or left-hand doors, and the self-drilling Teks fasteners simplify the mounting process. The hinge guarantees a lifetime of performance against defects in material or workmanship for heavy-duty applications. Notably, the KBSPFM83HD1 model meets multiple certifications, including A156.26, ANSI, and UL 10C, ensuring compliance with industry standards. Custom lengths are available, along with a range of finishes, including a clear anodized option for a sleek, professional appearance. This hinge combines functionality and style, making it an ideal choice for building professionals and knowledgeable homeowners alike.

Kawneer Full Mortise Continuous Hinge HD 83in Clear

The FS series full surface continuous geared hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard and heavy duty models, as well as our PemKonnect modular version (FS_HD1-M) that is primarily designed for freight savings and ease of transportation.

Features:

• Standard and heavy duty versions available
• For swinging fire doors of hollow metal, tin-clad, sheet metal or steel covered composite type rated up to 3 hours
• Hollow metal door and frame manufacturers’ standard reinforcement is acceptable
• For wood covered composite type rated up to and including 1-1/2 hours
• Applied to the exposed surfaces of the door and frame
• Guaranteed for the life of the opening against defects in material or workmanship (HD only)
• Removal of hinge reinforcements in the door and frame is not advised
• Custom lengths available
• Special hinge reinforcements are not required
• Fire pins are required on 3-Hour (A-Label) assemblies
• Excessive clearance on fire rated assemblies may violate NFPA 80

Specifications:

• Grade: Grade 1
• Hinge Material: Aluminum
• Hinge Mounting Type: Full surface
• Hinge Strength: Heavy weight
• Handing: Non-handed
• Fastener: Teks
• Fastener Type: Self drilling
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/4"
• Maximum Door Width: 4'
• Maximum Hinge Length: 10'
• Minimum Length: 79"
• Maximum Swing: 180°
• Minimum Hinge Clearance: 1/16"
• Weight: 1.29lbs. per foot

Models:

• FS:
• Hinge Strength: Standard
• Bearing Spacing: 3"
• FS_HD1:
• Hinge Strength: Heavy Weight
• Bearing Spacing: 3"

Options:

• SER: Serviceable section prep with wires - 4, 8, or 12 wire options available
• QC: ElectroLynx wires with Molex connectors - 4, 8, or 12 wire options available
• CUT: Cut charge
• HT: Hospital tip
• ALP: Anti ligature package for continuous geared hinges
• SSHT_ALP: Stainless steel anti ligature package for continuous geared hinges
• TORX: TORX Security screws
• WS: Wood screws
• M: PemKonnect modular hinge

Finishes:

• C - Clear anodized
• D - Dark bronze anodized
• G - Gold powder coat
• BSP - Black suede powder coat
• WSP - White suede powder coat
• SN - Satin nickel powder coat
