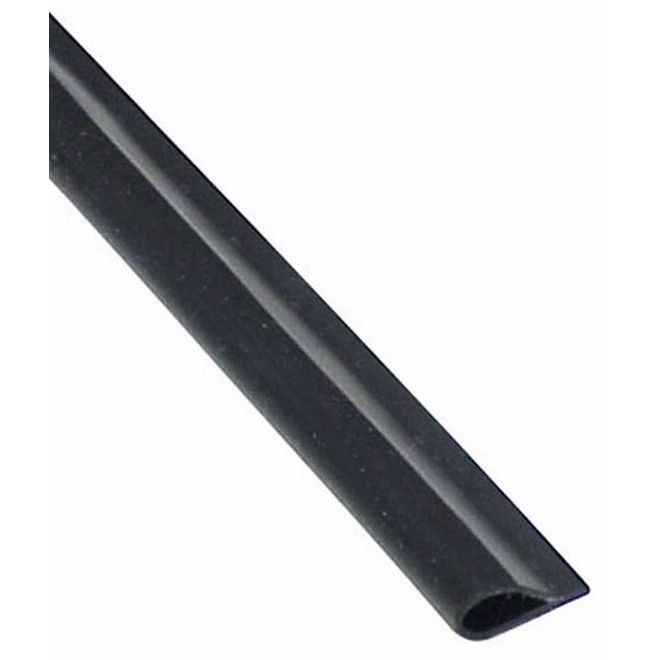

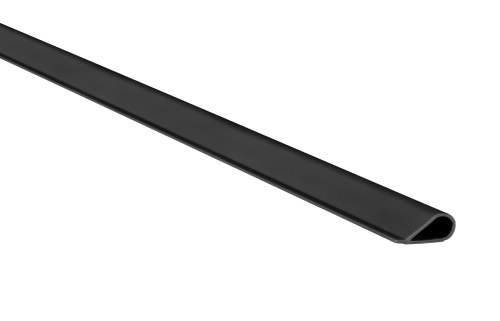

Pemko S88BL20 240" (20') Adhesive Perimeter Gasketing in Black Finish offers a robust solution for enhancing the energy efficiency of your doors. This high-quality weatherstripping product is made from durable silicone material, designed to provide excellent sealing capabilities while maintaining a sleek appearance. With its 20' length and 1/2" insert size, it effectively covers gaps, preventing drafts and moisture infiltration. The Pemko S88BL20 undergoes rigorous testing to ensure it meets or exceeds industry standards for performance and safety. It is part of a comprehensive line of architectural door accessories, which includes thresholds, fire/smoke gaskets, and more, all aimed at creating innovative solutions for various applications. This particular gasketing is not only sound-tested and smoke-labeled but also ADA-compliant, making it suitable for a wide range of environments. Mounting hardware is included for easy installation, and the product comes with a limited 5-year warranty, providing peace of mind for building professionals and knowledgeable homeowners alike. Whether you are looking to improve energy efficiency or enhance the overall functionality of your doors, the Pemko S88BL20 is a reliable choice that combines quality and performance in one elegant package.

240" (20') Adhesive Perimeter Gasketing Black Finish

Since 1952, the Pemko name has been known as a key manufacturer in weatherstripping products. Over the years as an ASSA ABLOY Group brand, we have expanded our product line into a full line of architectural door accessory products to include thresholds, fire/smoke gaskets, door bottoms, perimeter gasketing, brush seals, astragals, continuous geared hinges, fire and life-safety products, lites and louvers, and sliding door hardware. The Pemko product line offers sound-tested, smoke-labeled, fire-labeled, skid resistant, and ADA-compliant products, and aggressively pursues new product development to create solutions for new applications and requirements.

• Pemko Products Provide an Energy Efficient Door Solution
• Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
• Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
• Mounting Hardware Included
• Limited 5 Year Warranty
• Seal begins compressing at 1/4". Compresses to seal up to a 1/16" gap.
• Available in black, clear, dark brown, gray, tan and white.
• S88 is available in 17, 18, 20, 21, 25, 30, 204 and 510 ft. coils.
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F.
• Self-extinguishing and non-toxic. Unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure.
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors.
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105 "Standard for the Installation of Smoke Door Assemblies and Other Opening Protectives".
• S44, S77 and S88 are air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke.
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors.
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773.
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II.
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door.
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
• Category G
• Storage and shelf life: All adhesive gaskets have a limited shelf life. This product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F). For further notes/details, please see Adhesive Gasketing section.

Ratings

	Intertek Testing (Warnock Hersey)
	BHMA Certified
	Underwriters Laboratory 4L10
	Sound Tested - ASTM E90
	GREENGUARD Gold Certified
	Air Infiltration Tested
	Fire Rated - Edge Seals - UL10C - Positive Pressure
	Smoke Tested - UL1784
