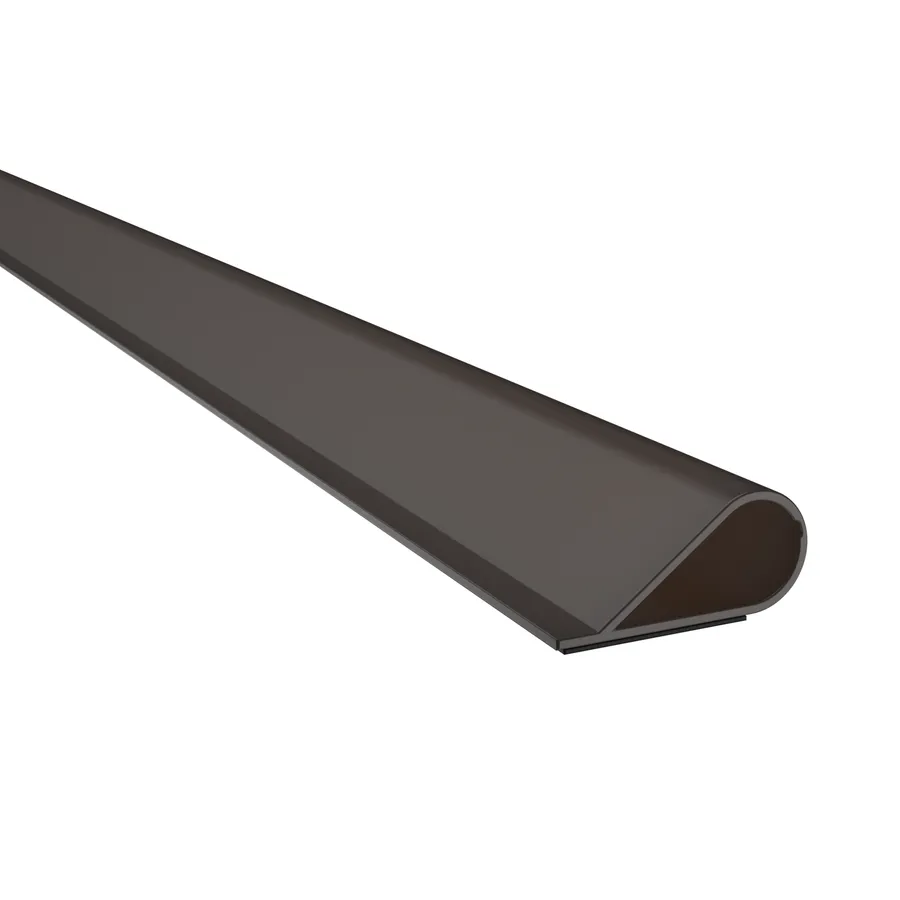

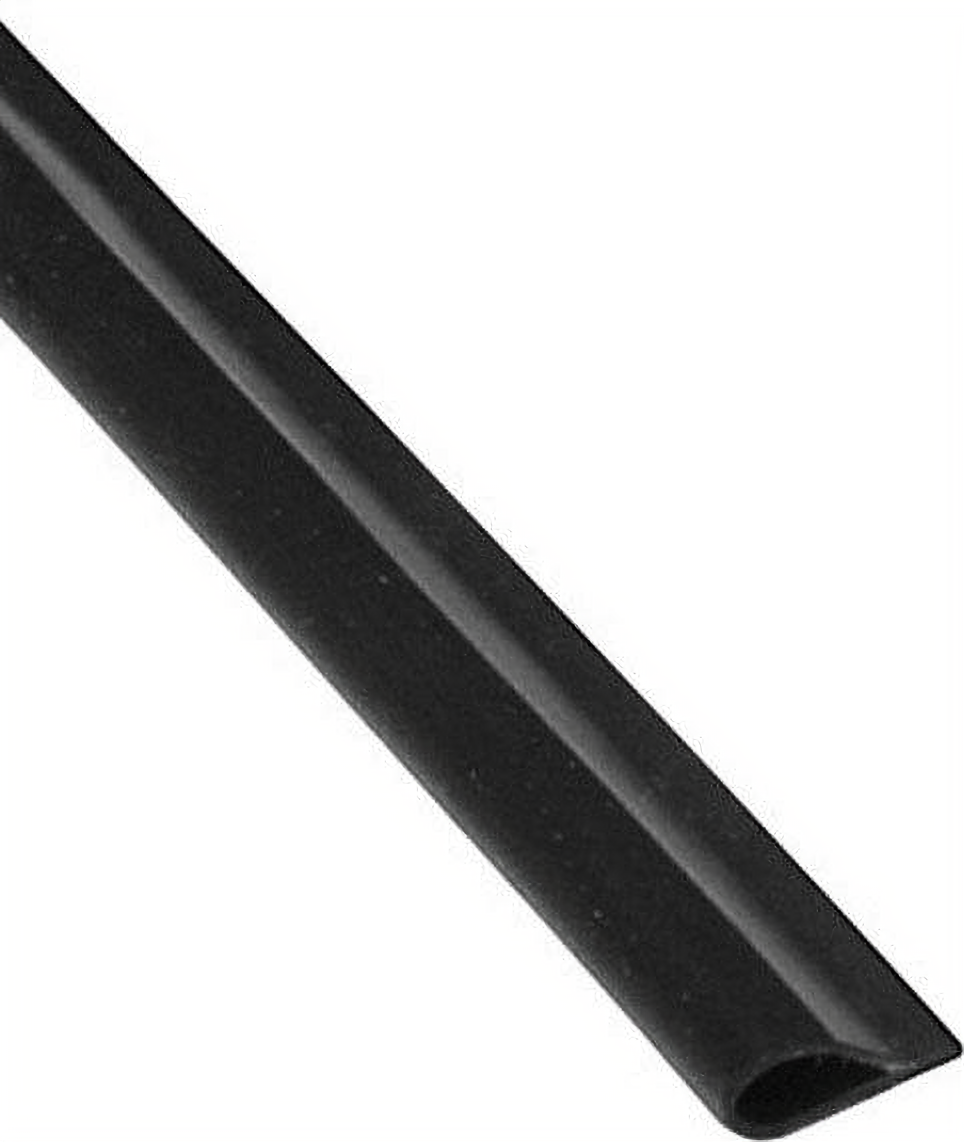

Pemko S88D 17FT Smoke Seal 17ft Dark Brown

Pemko Manufacturing Co S88D 17FT Smoke Seal offers a robust solution for achieving superior air and smoke control in your doors and frames. This high-performance adhesive perimeter gasket compresses at a minimum of 1/4", sealing gaps up to 1/16", ensuring an effective barrier against smoke infiltration. Crafted from high-temperature silicone, the S88D operates efficiently within a temperature range of -58°F to 450°F, making it suitable for various environments. This smoke seal meets stringent standards, including FAR 25.853 for compartment interiors and has been smoke tested per UBC 7-2 and UL 1784-01, complying with NFPA 105 requirements. Its air infiltration rate is impressively low at just .09 CFM per foot of crack, enhancing energy efficiency while maintaining safety. The S88D is easy to install with its self-adhesive backing, designed to be mounted on the side of the frame. It is available in a sleek dark brown finish and comes in a convenient 17-foot length, allowing for versatile applications. Additionally, this gasket is impervious to fungus and mildew-making it durable and reliable over time. For building professionals and discerning homeowners, the Pemko S88D 17FT Smoke Seal is an essential addition to your door hardware arsenal, providing peace of mind without compromising on aesthetics or function.

Smoke Seal 17ft Dark Brown

The S88 adhesive perimeter gasket compresses to seal up to a 1/16" gap and is available with perforations for behavioral health applications.

Features:

• Seal begins compressing at 1/4", compresses to seal up to a 1/16" gap
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105
• Air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• Limited shelf life - product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)
• Self-extinguishing, non-toxic and unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure

Specifications:

• Gasketing Material: Silicone
• Height: 1/4"
• Maximum Length: 510'
• Minimum Length: 17'
• Mounting Location: Side of frame
• Mounting Type: Self-adhesive
• Weight: 0.03 lbs
• Width: 1/2"

Colors:

• C - Clear
• GR - Gray
• TAN - Tan
• D - Dark brown
• BL - Black
• W - White
