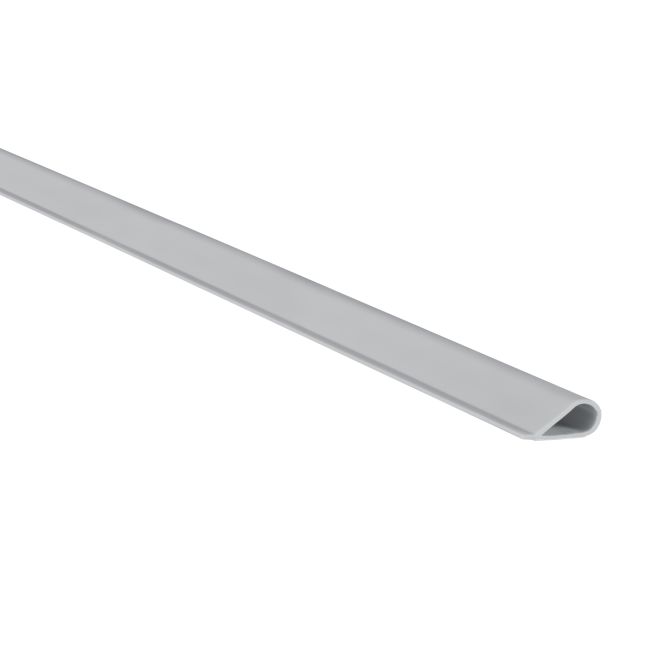

Pemko S88GR17 17' Adhesive Perimeter Gasketing - Gray Finish

Pemko S88GR17 204" (17') Adhesive Perimeter Gasketing in a sleek gray finish is designed to enhance energy efficiency and environmental comfort in any building. As a trusted solution from a name synonymous with quality since 1952, this perimeter gasketing product ensures a tight seal around doors, minimizing drafts and heat loss. Crafted from durable Silicone material, it features a 1/2" width and a projection of 1/4", making it ideal for various applications. This product not only meets rigorous industry standards but also offers a 5-year limited warranty, reflecting Pemko's commitment to quality and reliability. The easy-to-apply adhesive backing simplifies installation, while the included mounting hardware ensures a secure fit. With its smoke- and fire-labeled attributes, this gasketing solution is perfect for enhancing safety and soundproofing in commercial and residential spaces alike. The Pemko S88GR17 is part of a comprehensive line of weatherization products that are ADA-compliant, skid-resistant, and engineered for superior performance. Choose this perimeter gasketing to elevate your building's energy efficiency and comfort, all while benefiting from the expertise of a leading manufacturer in architectural door accessories.

204" (17') Adhesive Perimeter Gasketing Gray Finish

Since 1952, the Pemko name has been known as a key manufacturer in weatherstripping products. Over the years as an ASSA ABLOY Group brand, we have expanded our product line into a full line of architectural door accessory products to include thresholds, fire/smoke gaskets, door bottoms, perimeter gasketing, brush seals, astragals, continuous geared hinges, fire and life-safety products, lites and louvers, and sliding door hardware. The Pemko product line offers sound-tested, smoke-labeled, fire-labeled, skid resistant, and ADA-compliant products, and aggressively pursues new product development to create solutions for new applications and requirements.

• Pemko Products Provide an Energy Efficient Door Solution
• Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
• Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
• Mounting Hardware Included
• Limited 5 Year Warranty
• Seal begins compressing at 1/4". Compresses to seal up to a 1/16" gap.
• Available in black, clear, dark brown, gray, tan and white.
• S88 is available in 17, 18, 20, 21, 25, 30, 204 and 510 ft. coils.
• SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F.
• Self-extinguishing and non-toxic. Unaffected by sunlight, ozone and ultraviolet rays.
• Impervious to fungus and mildew; will not deteriorate under normal exposure.
• Meets FAR 25.853 Airworthiness Standards for Compartment Interiors.
• Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105 "Standard for the Installation of Smoke Door Assemblies and Other Opening Protectives".
• S44, S77 and S88 are air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
• Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke.
• Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors.
• Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773.
• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II.
• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door.
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
• Category G
• Storage and shelf life: All adhesive gaskets have a limited shelf life. This product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F). For further notes/details, please see Adhesive Gasketing section.
