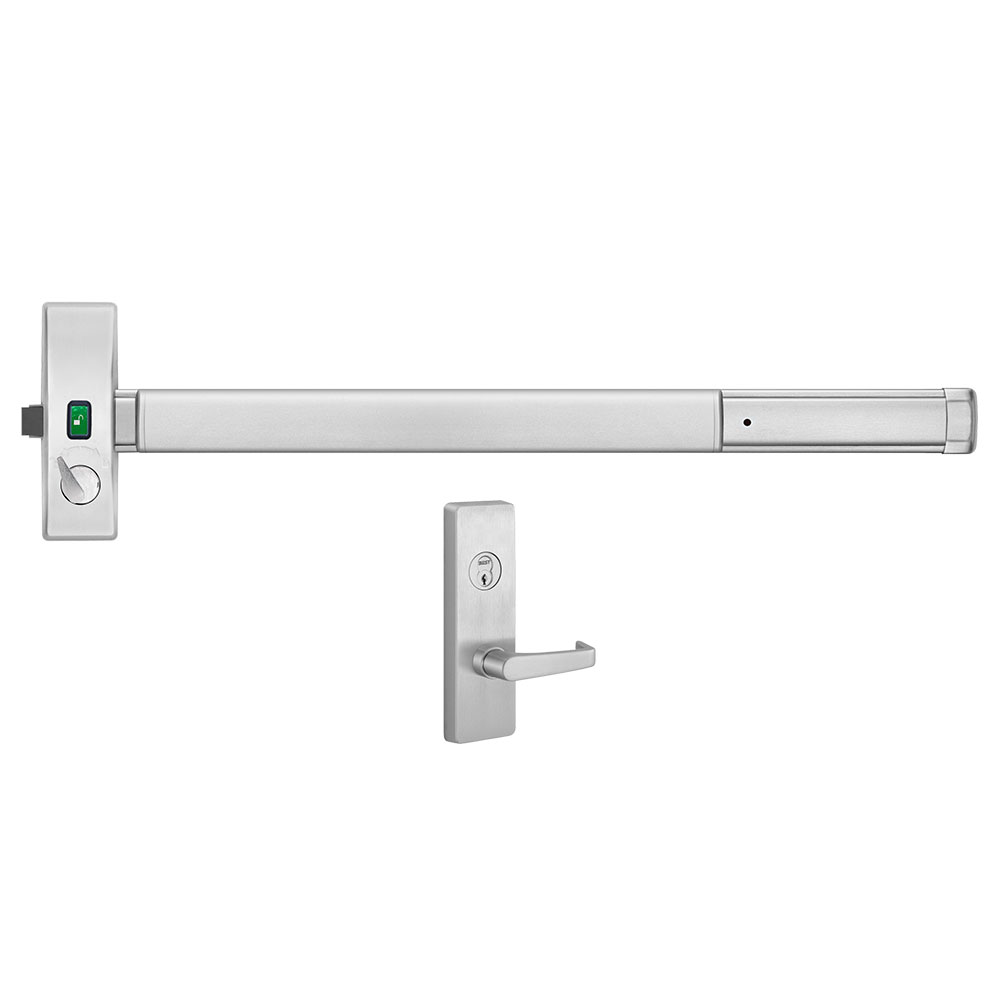

PHI 2110VI V4908A 630 36 RHR Grade 1 Double Cylinder Rim Exit Device

PHI 2110VI V4908A 630 36 RHR Grade 1 Double Cyl Rim Exit is a robust and stylish exit device designed to enhance safety and accessibility in various commercial environments. This Grade 1 Rim Exit Device boasts a wide stile pushpad, ideal for high-traffic areas, with a 36" length that accommodates doors with vision lites or glass windows. The classroom intruder function and freewheeling/vandal resistant lever provide both security and ease of use, making it a preferred choice in healthcare and educational facilities. Constructed from heavy wrought brass, bronze, or stainless steel, this device features a satin stainless steel finish that complements any décor. It includes hex key dogging for added convenience and operates with a double cylinder that comes with an indicator. The device is reversible and suitable for doors ranging from 1-3/4" to 2-1/4" thick, while its investment cast steel chassis ensures durability. UL listed for panic and fire hardware, the PHI 2110VI meets ANSI/BHMA A156.3 Grade 1 standards, assuring compliance with safety regulations. With a 5-year limited warranty, this exit device combines performance, reliability, and aesthetic appeal, making it a smart investment for any commercial space.

Grade 1 Double Cyl Rim Exit

Grade 1 Rim Exit Device, Wide Stile Pushpad, 36" Device, Classroom Intruder Function, Freewheeling/Vandal Resistant A Lever, Hex Key Dogging, Double Cylinder with Indicator, Satin Stainless Steel Finish, Right Hand Reverse

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

Grade 1 exit devices that accommodate doors with vision lites or glass windows.

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

DOORS - For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

FUNCTIONS - Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.

DOUBLE CYLINDER - Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.

LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw. STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.

DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates. R

EVERSIBLE - Reversible for all functions and Trims. Standard packaging RHRB.

UL LISTED - Panic and Fire Exit Hardware.

Conforms to UL10C and UBC 7-2.

ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.

FINISHES - 605, 606, 612, 613, 625, 628, 630
