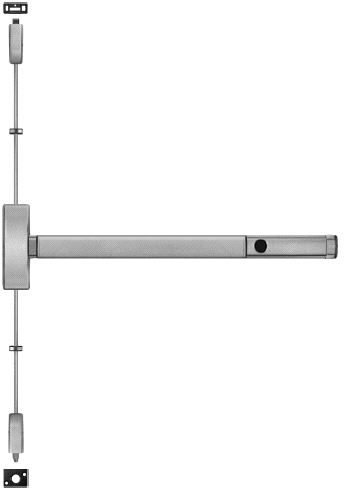

PHI 2202-ALK-630-36 Alarmed SVR Surface Vertical Rod Exit Device, 36in, Grade 1, Stainless Steel

Precision Hardware PHI 2202-ALK-630-36 KIT is a robust alarmed surface vertical rod exit device designed for high-security environments. Built to meet the demands of heavy traffic and frequent use, this Grade 1 exit device is engineered for efficiency and durability. The investment cast construction and vandal-resistant trim provide maximum protection against forced entry while ensuring easy egress. This exit device features a sleek, low-profile design with no exposed fasteners, which prevents snags during operation. Its built-in rubber bumper sound dampener minimizes noise, making it ideal for sensitive environments such as healthcare and educational facilities. The 2202-ALK is equipped with a battery-powered alarm, enhancing security without compromising accessibility. Installation is flexible, accommodating a variety of door sizes and types, from 1-3/4" to 2-1/4" thick doors, and up to 10' in height. With universal mounting holes and field-reversible options, retrofitting existing doors is a breeze. The device is constructed from premium materials, including stainless steel and investment cast steel, ensuring low maintenance and long-term reliability. Available in a satin stainless steel finish, this exit device not only meets ANSI A117.1 accessibility code requirements but also fits seamlessly into any architectural aesthetic. Experience peace of mind with the Precision Hardware PHI 2202-ALK-630-36 KIT.

KIT - Alarmed SVR Surface Vertical Rod Exit Device, Exit Only Prepped for Trim, Less Mortise Cylinder for ALK, 36in, Grade 1, 630/US32D Stainless Steel

The 2000 exit devices have earned a reputation for strength in every situation—performing in even the most abusive applications. Thanks to its efficient engineering and durable hardware, the Precision 2000 represents the ultimate in safety, security and simplicity. No other exit device offers the level of functionality and dependability as this grade 1, heavy-duty exit device. Built with fewer components and in various door configurations, it provides smoother operation with minimal need for maintenance. The durable construction allows it to withstand high traffic and high use on a regular basis, making it particularly attractive for healthcare and education buildings. These combined benefits give it a longer life span and a lower overall cost of ownership.

Features:

• Maximum protection: Investment cast construction and vandal-resistant trim deliver maximum protection against forced entry without impeding easy exit.
• Dependable operation: The 2000 allows fast, easy egress. A built-in rubber bumper sound dampener reduces noise even in high traffic areas. Designed with fewer moving components, the 2000 requires much lower maintenance than comparable products.
• Smooth appearance: We designed the 2000 for a smooth appearance—no exposed fasteners and very low-profile end caps—that won’t pinch, catch or snag during operation. Available in a range of true architectural finishes, the 2000 fits any design aesthetic.
• Premium materials and construction: Made from top-quality materials and with hardened steel hex dogging assembly, the 2000 delivers durable, low maintenance performance.
• Flexible installation: Universal-function 2000 exit devices are field reversible and available to fit a range of door sizes and types. The wide stile design allows for installation on doors that are not completely flat or when vision lites or glass project beyond the door. No shims or glass cutting is required for installation.
• Easy retrofit: Universal mounting holes and flexible configuration options make installing 2000 series exit devices on existing doors simple.
• Indoor/outdoor application: Available in 626W weatherized finish, 2000 series exit devices can withstand even the harshest environmental conditions.

Specifications:

• Certifications: BHMA A156.3 Grade 1 listed ANSI A117.1 accessibility code (ADA) compliant
• Materials:
• Exit device body: heavy-duty solid brass, bronze, aluminum and stainless steel
• Chassis: investment cast steel, zinc dichromated
• Chassis cover: stainless steel, brass or bronze
• Latchbolt: stainless steel, deadlocking, 3/4" throw
• Door Dimensions:
• Thickness: 1-3/4" – 2-1/4" standard
• Height: 6'8" – 10’ (200 series)
• Width: 3' – 4'
• Strikes:
• S300: Investment cast stainless steel, black powder coated
• S988: Optional strike for use on aluminum door applications
• S458: Optional strike for use on mullion applications
• Device Types:
• Wide rim
• Narrow rim
• Concealed vertical rod
• Narrow stile concealed vertical rod
• Surface vertical Rod
• Wood door concealed vertical rod
• Mortise
• Electrified Options:
• C: Pre-terminated quick connect plug
• DE: Delayed egress
• E: Electric lock/unlock
• ELR: Electric latch retraction
• MLR: Motorized latch retraction
• LS: Latchbolt monitoring switch
• Q: Wireless access management system
• TS: Touchbar monitoring switch
• WTS: Weatherized touchbar switch
• ALK: Battery powered alarm
• ALW: Hardwired alarm
• DS: Door position switch
• WALW: Weatherized alarm
• Trim and Lever Styles:
• Vandal Resistant Lever–no lever reset required
• Knob Trims
• Pull Trims
• A, B, C or D lever styles, standard
• 20 available decorative lever styles

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Oil-rubbed bronze
• 622 - Powder coated black
• 625 - Bright chrome
• 626W - Satin chrome weatherized
• 628 - Satin aluminum, clear anodized
• 630 - Satin stainless steel
• 690 - Dark bronze
