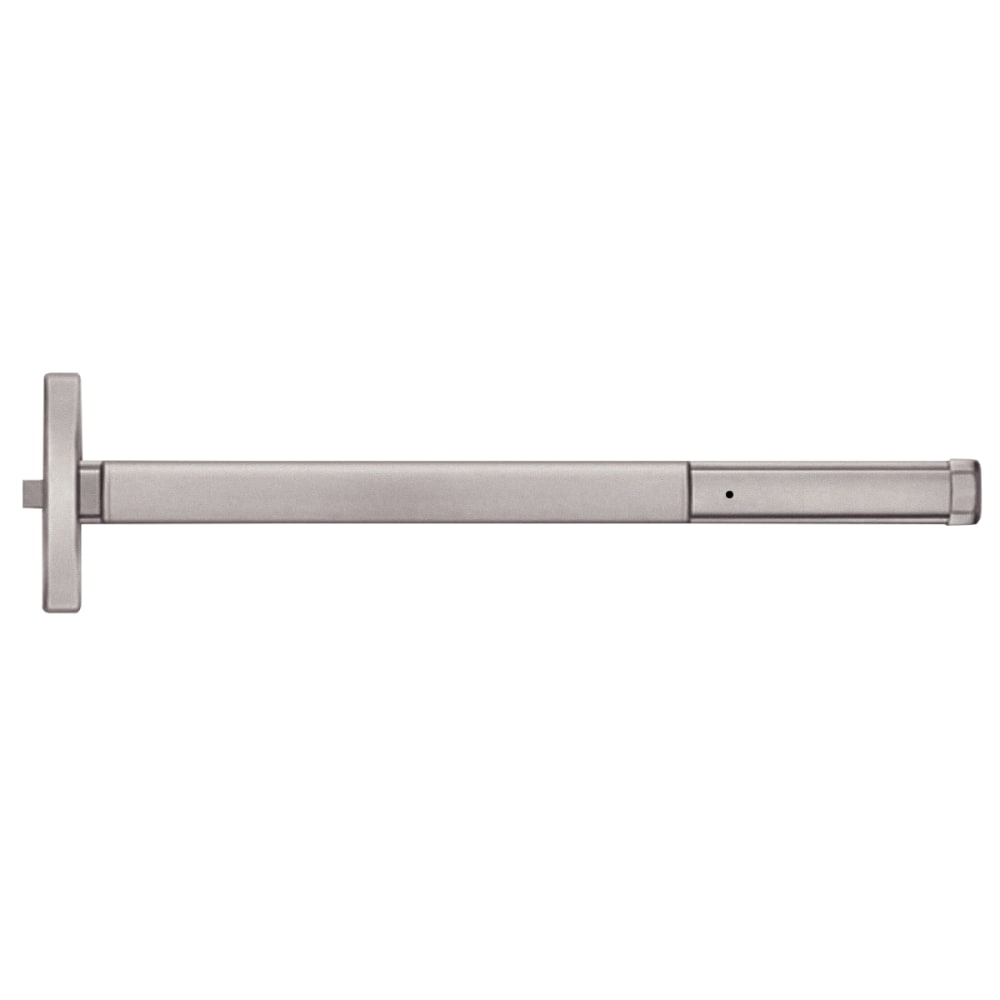

PHI 2401 630 36 Grade 1 Narrow Rim Exit Device

PHI 2401 630 36 Grade 1 Narrow Rim Exit Device offers a robust and aesthetically pleasing solution for emergency exits in both commercial and institutional settings. Designed for single and double doors with a mullion, this Grade 1 exit device is constructed to meet the highest standards, including UL listing for panic and fire hardware and ANSI A156.3 Grade 1 certification. Featuring a narrow stile pushpad and a 36-inch length, this device ensures ease of use while maintaining a sleek profile. The hex key dogging provides added security and convenience, allowing for simple operation without compromising safety. Its satin stainless steel finish not only enhances durability but also adds a modern touch to any door design. This exit device accommodates door thicknesses ranging from 1-3/4" to 2-1/4" and is field reversible for flexible installation options. With a stainless steel latchbolt that offers a 3/4" throw, it guarantees reliable performance. The touchbar height standard of 39-15/16" can be adjusted as needed. Each unit is backed by a 5-year limited warranty, ensuring peace of mind for building professionals and homeowners alike. Upgrade your exit solutions with the PHI 2401 630 36, where safety meets style.

Grade 1 Narrow Rim Exit Device

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36" Device, Exit Only Function, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double doors with a mullion.

Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker door, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

• FUNCTIONS - A universal exit device. Add trim for desired function.
• BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
• CHASSIS - Investment cast steel, zinc dichromated.
• LATCHBOLT - Stainless steel, deadlocking, 3/4" throw.
• STRIKES - No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
• DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
