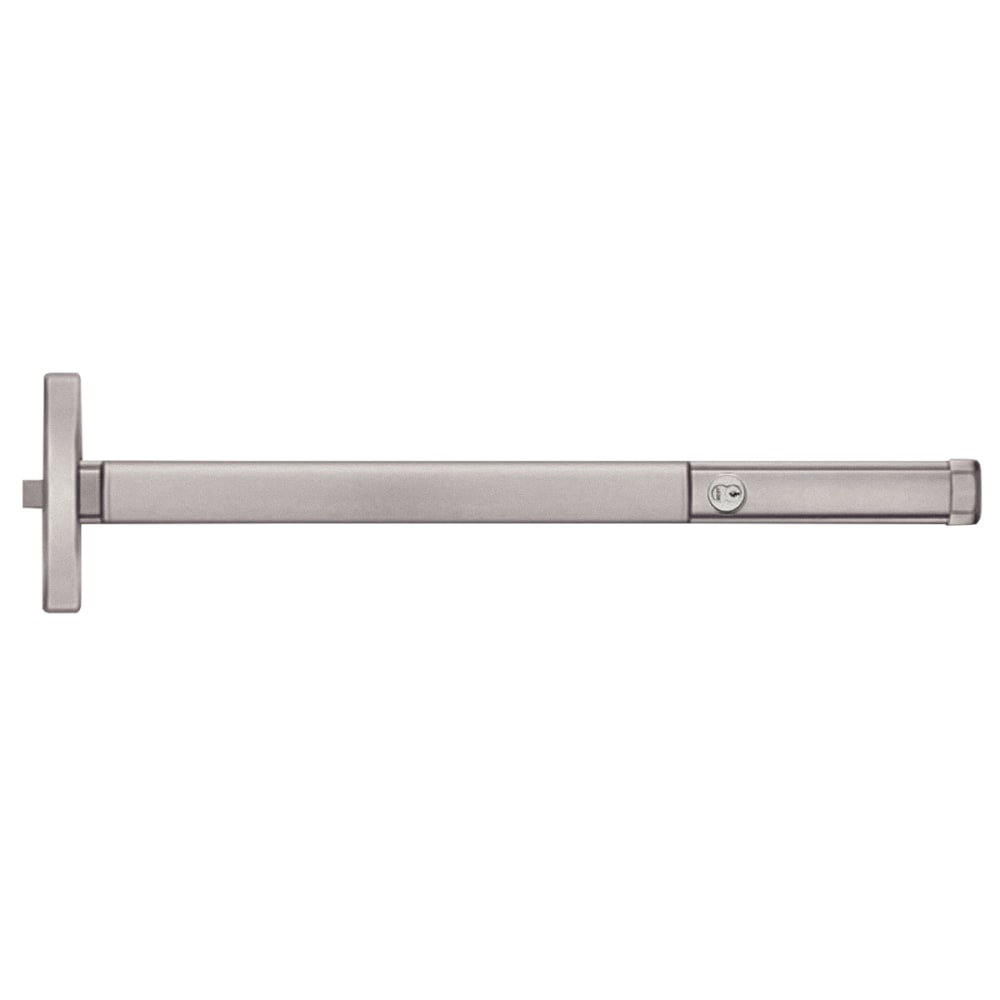

PHI 2402CD 630 36 Grade 1 Narrow Rim Exit Device

PHI 2402CD 630 36 Grade 1 Narrow Rim Exit Device combines durability and aesthetic appeal, making it a top choice for commercial spaces such as healthcare and educational facilities. Designed with a narrow stile pushpad, this 36" exit device features a satin stainless steel finish that enhances both functionality and visual appeal. The device is UL listed for panic and fire hardware, ensuring compliance with safety standards. This Grade 1 exit device is perfect for single and double doors, accommodating openings up to 4'-0" wide and door thicknesses from 1-3/4" to 2-1/4". The field-reversible design allows for easy installation and adaptability to various door configurations. Equipped with cylinder dogging, the latchbolt is made of stainless steel with a robust 3/4" throw for added security. The PHI 2402CD is crafted from heavy wrought materials, including investment cast steel for the chassis and a variety of finishes available to suit your needs. With a standard touchbar height of 39-15/16", it provides ease of use in emergency situations. This exit device is backed by a limited five-year warranty, ensuring reliability for years to come.

Grade 1 Narrow Rim Exit Device

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36" Device, Dummy Trim, Cylinder Dogging, Satin Stainless Steel Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double doors with a mullion.

Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker door, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

• FUNCTIONS - A universal exit device. Add trim for desired function.
• BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
• CHASSIS - Investment cast steel, zinc dichromated.
• LATCHBOLT - Stainless steel, deadlocking, 3/4" throw.
• STRIKES - No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
• DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
