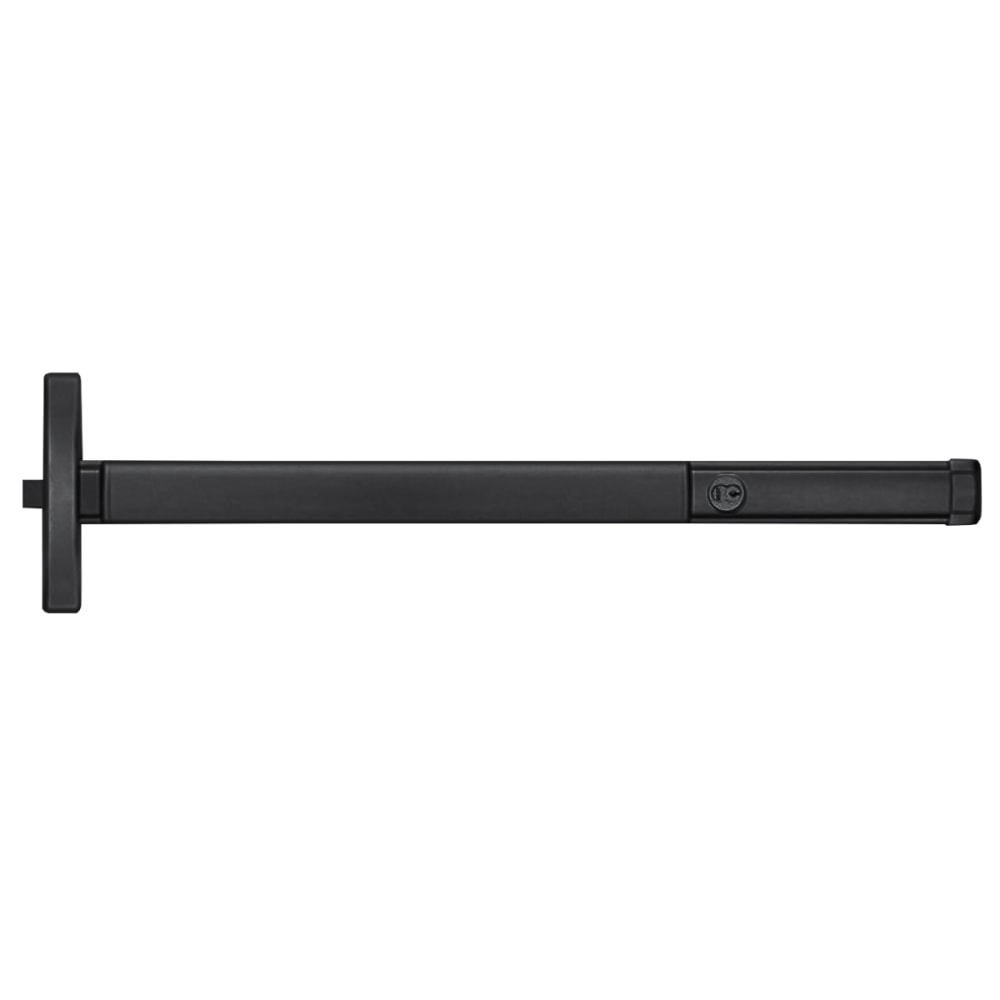

PHI 2403CD 622 36 Grade 1 Narrow Rim Exit Device

PHI 2403CD 622 36 Grade 1 Narrow Rim Exit Device delivers unparalleled safety and reliability for commercial applications. Designed with a narrow stile pushpad, this 36" exit device is perfect for both single and double doors, accommodating openings up to 4'-0" wide and door thicknesses ranging from 1-3/4" to 2-1/4". Its storeroom function and cylinder dogging provide added security, ensuring that only authorized personnel can access restricted areas. Crafted with a matte black finish, the PHI 2403CD combines aesthetic appeal with robust construction. The device features a heavy wrought brass, bronze, or stainless steel base material, ensuring durability even in high-traffic environments. The investment cast steel chassis is zinc dichromated for enhanced resistance to corrosion, while the stainless steel latchbolt boasts a deadlocking mechanism with a 3/4" throw for optimal protection. With a UL listing for panic and fire exit hardware and compliance with ANSI/BHMA standards for Grade 1, this exit device is engineered for exceptional performance under pressure. Field reversible for easy installation, the PHI 2403CD is a smart choice for any commercial setting, backed by a 5-year limited warranty for peace of mind.

Grade 1 Narrow Rim Exit Device

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36" Device, Storeroom Function, Cylinder Dogging, Matte Black Finish, Field Reversible

PRECISION 2000 exit devices have earned a reputation for strength in every situation—performing in even the most abusive applications. Thanks to its efficient engineering and durable hardware, the Precision 2000 represents the ultimate in safety, security and simplicity. No other exit device offers the level of functionality and dependability as this Grade 1, heavy-duty exit device. Built with fewer components and in various door configurations, it provides smoother operation with minimal need for maintenance.

For all types of single and double doors with a mullion.

Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker door, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

• FUNCTIONS - A universal exit device. Add trim for desired function.
• BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
• CHASSIS - Investment cast steel, zinc dichromated.
• LATCHBOLT - Stainless steel, deadlocking, 3/4" throw.
• STRIKES - No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
• DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
