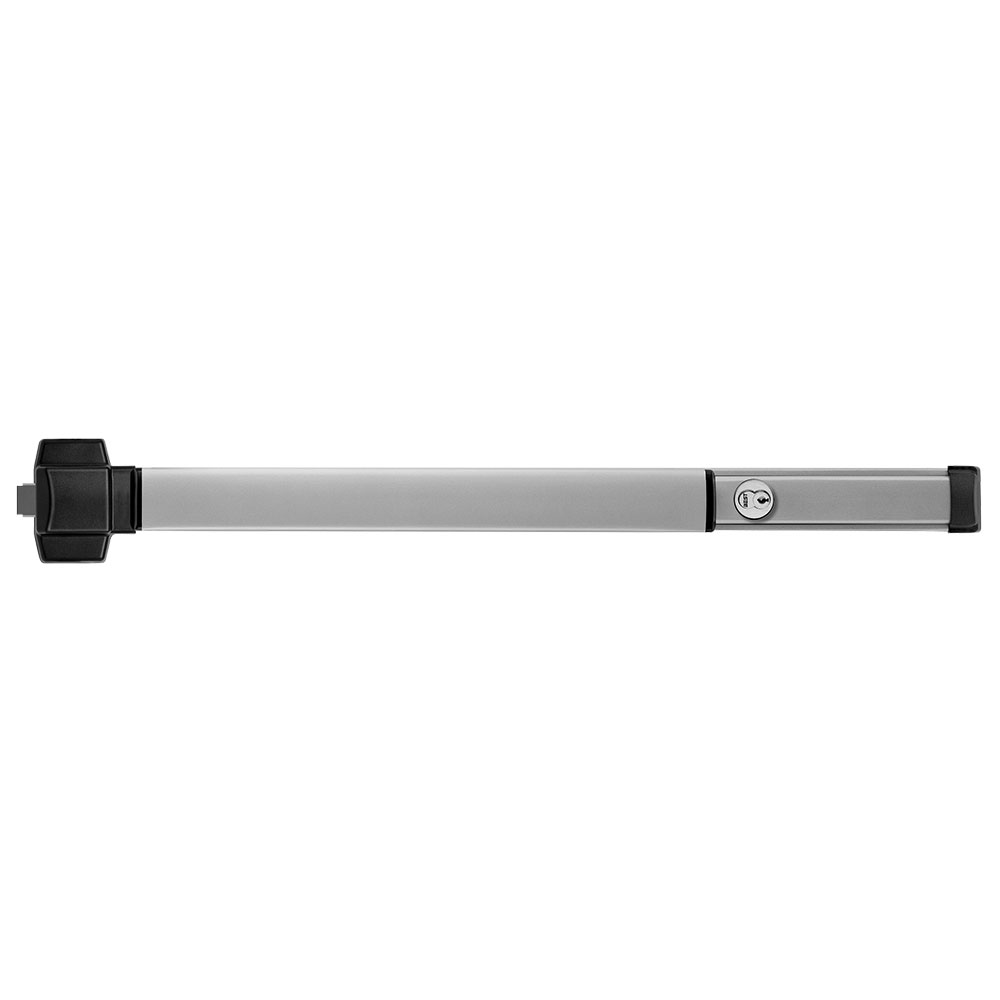

PHI 5103CD 689 48 Grade 1 Rim Exit Device

PHI 5103CD 689 48 Grade 1 Rim Exit Device offers a reliable and economical solution for securing both single and double doors with a mullion. Designed for versatility, this wide stile pushpad device features a storeroom function and cylinder dogging, ensuring ease of use while maintaining security. The device measures 48 inches, making it a perfect fit for various applications, including retail, hospitality, commercial office spaces, and multifamily buildings. Constructed from durable stainless steel, the chassis covers standard type 161 door preparations and is backed by a UL listing for panic and fire hardware, certified to ANSI A156.3 Grade 1 standards. The active case and trim options accommodate ANSI A115.2 and A115.18 cylinder lock preparations, ensuring seamless integration into existing door systems. The device is available in a sleek aluminum painted finish (689) and is non-handed, allowing for flexible installation. With a stainless steel deadlocking latchbolt and a touchbar height adjustable to 40-5/16 inches, this exit device prioritizes both functionality and accessibility. The high-impact thermoplastic endcap and powder-coated heavy wrought steel touchbar assembly enhance durability, making the PHI 5103CD a smart choice for any commercial setting.

Grade 1 Rim Exit Device

Grade 1 Rim Exit Device, Wide Stile Pushpad, 48" Device, Storeroom Function, Cylinder Dogging, Aluminum Painted Finish, Non-Handed

The Reliant 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. All Reliant 5000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. The Reliant Series is available in durable powder coat finishes with a variety of trim styles and functions. The chassis is constructed of stainless steel and covers the standard type 161 door preparation.

For all types of single and double doors with a mullion.

The Reliant 5000 Series is a cost-effective Grade 1 exit device option for applications such as retail, hospitality, mixed-used, multifamily and commercial office spaces.

• ACTIVE CASE & TRIM - Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.
• FUNCTIONS - Universal Exit Device, add Trim for the desired function.
• ACTIVE CASE COVER & ENDCAP - High Impact Thermoplastic.
• ACTIVE CASE - Stainless Steel. TOUCHBAR SUB-ASSEMBLY - Zinc Dichromate plated Heavy Wrought Steel.
• TOUCHBAR ASSEMBLY- Powder Coated Heavy Wrought Steel.
• STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, specify when ordering. No. S458, optional strike for use on Mullion applications, specify when ordering.
• LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
• DOGGING - 1/4 turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 40-5/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 3. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
• FINISHES - 689 Aluminum Powder Coat, 695 Dark Bronze Powder Coat.
