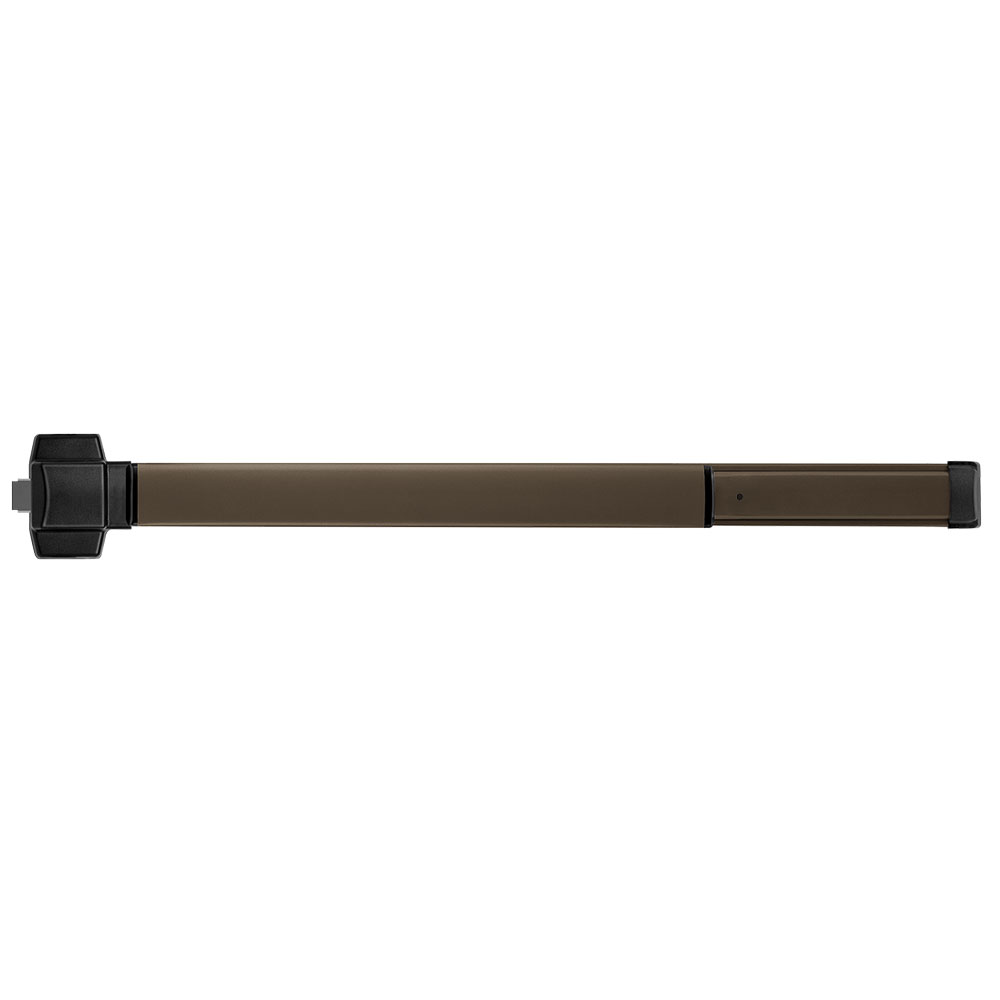

PHI 5108 695 36 Grade 1 Rim Exit Device

PHI 5108 695 36 Grade 1 Rim Exit Device offers a robust solution for ensuring safe and compliant egress in commercial spaces. Designed as part of the Reliant 5000 Series, this Grade 1 exit device features a wide stile pushpad and operates with a convenient classroom function, allowing for quick exit without compromising security. With hex key dogging as standard, it is both user-friendly and reliable. Crafted from stainless steel, the device is built to last, covering ANSI A115.2 or ANSI A115.18 cylinder lock preparations without the need for additional machining. The powder-coated dark bronze finish adds durability while enhancing aesthetic appeal, making it suitable for various environments, including retail, hospitality, and commercial offices. The PHI 5108 is non-handed, accommodating all types of single and double doors, and its 36" length fits standard door widths. It adheres to UL and ANSI A156.3 Grade 1 certifications, ensuring compliance with safety standards. The device's high-impact thermoplastic active case cover and heavy wrought steel touchbar assembly add to its durability. With an impressive 3/4" throw deadlocking latchbolt, this exit device is a practical choice for effective access control and safety.

Grade 1 Rim Exit Device

Grade 1 Rim Exit Device, Wide Stile Pushpad, 36" Device, Classroom Function, Hex Key Dogging, Dark Bronze Painted Finish, Non-Handed

The Reliant 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. All Reliant 5000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. The Reliant Series is available in durable powder coat finishes with a variety of trim styles and functions. The chassis is constructed of stainless steel and covers the standard type 161 door preparation.

For all types of single and double doors with a mullion.

The Reliant 5000 Series is a cost-effective Grade 1 exit device option for applications such as retail, hospitality, mixed-used, multifamily and commercial office spaces.

• ACTIVE CASE & TRIM - Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.
• FUNCTIONS - Universal Exit Device, add Trim for the desired function.
• ACTIVE CASE COVER & ENDCAP - High Impact Thermoplastic.
• ACTIVE CASE - Stainless Steel. TOUCHBAR SUB-ASSEMBLY - Zinc Dichromate plated Heavy Wrought Steel.
• TOUCHBAR ASSEMBLY- Powder Coated Heavy Wrought Steel.
• STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, specify when ordering. No. S458, optional strike for use on Mullion applications, specify when ordering.
• LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
• DOGGING - 1/4 turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 40-5/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 3. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
• FINISHES - 689 Aluminum Powder Coat, 695 Dark Bronze Powder Coat.
