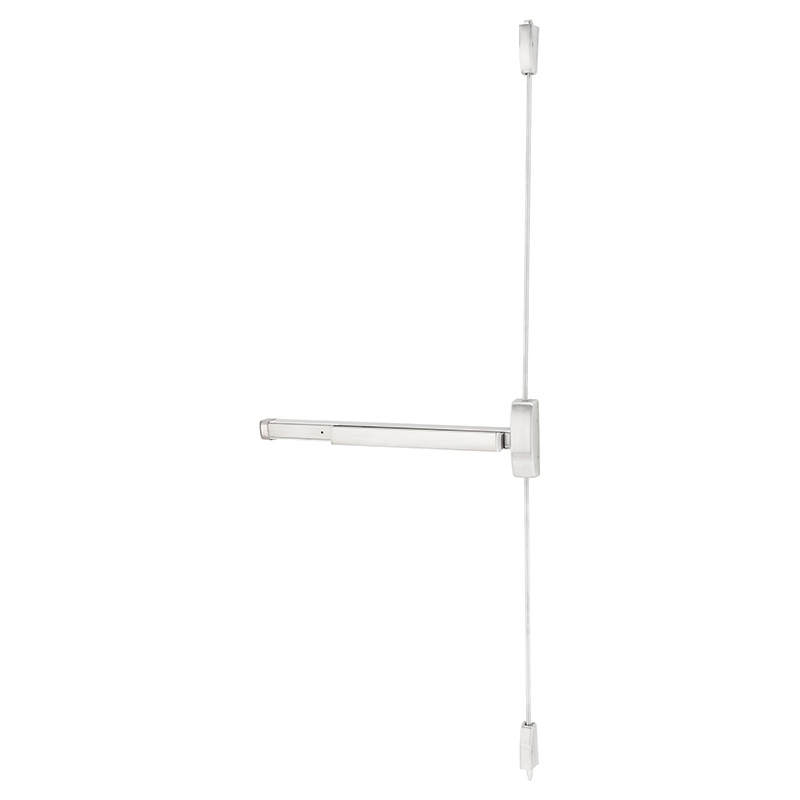

PHI CMLRTS2203 630 36 Grade 1 SVR Exit DevicePHI CMLRTS2203 630 36 Grade 1 SVR Exit Device offers superior security and functionality, making it an excellent choice for commercial applications. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad and is designed with a storeroom function, ensuring controlled access and safety. Measuring 36 inches in length, it includes motorized latch retraction for effortless operation, complemented by a touchbar monitor for enhanced usability. Crafted from high-quality materials, including heavy wrought Stainless Steel, this exit device complies with ANSI A156.3 Grade 1 standards and is UL listed for panic and fire hardware, providing peace of mind in emergency situations. The field-reversible design allows for easy installation on both single and double doors, accommodating various door widths and thicknesses (1-3/4" to 2-1/4"). With a satin stainless steel finish, the CMLRTS2203 not only meets aesthetic requirements but is also engineered for durability. Its components are designed for retrofitting into existing mounting holes, enhancing versatility in upgrades. The device is backed by a five-year limited warranty, ensuring long-term reliability for your security needs. Choose PHI’s CMLRTS2203 for a balance of aesthetics, performance, and security in your building's access control solutions.
Grade 1 SVR Exit Device
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, Storeroom Function, Less Dogging, Quick Connect Plugs, Motorized Latch Retraction, Touchbar Monitor, Satin Stainless Steel Finish, Field Reversible
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
Attributes
Add On Options: Quick Connect Plugs
Ansi: A156.3
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Material: All Types
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 3'
Electric Options: Motorized Latch Retraction
Finish: 630/US32D
Finish Description: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Field Reversible
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Storeroom
Minimum Stile Size: 4-1/4"
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2200 Series Apex Surface Vertical Rod Exit Devices
Strike Bottom: S460
Subtype: Surface Vertical Rod Exit Devices
Switch Type: Touchbar Monitor
Top Strike: S300
Type: Exit Devices
Ul Listing: UL10C
Unit of Measure: Each
