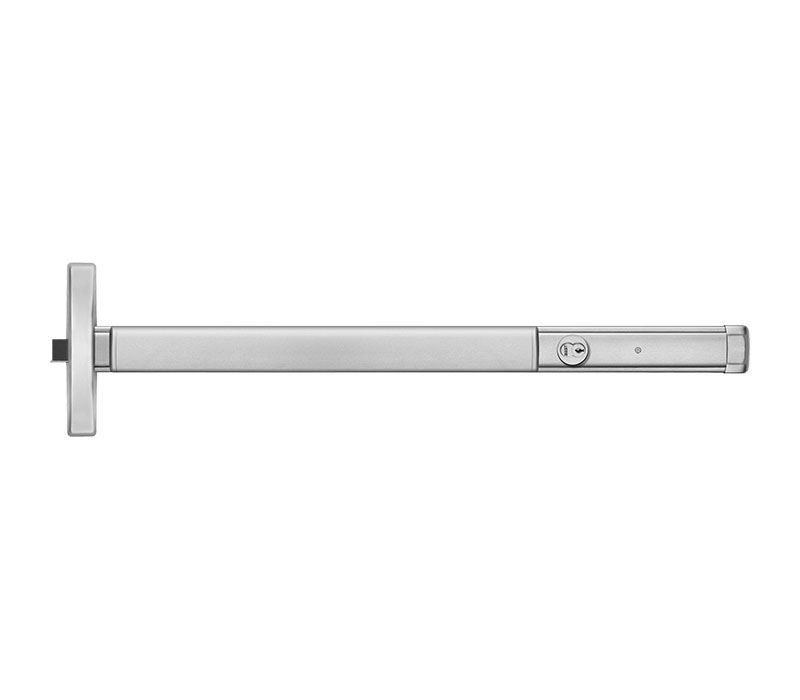

PHI EFL2203 630 36 RHR Grade 1 SVR Exit Device

PHI EFL2203 630 36 RHR Grade 1 SVR Exit Device combines robust construction with a sleek design, making it an ideal choice for both commercial and residential applications. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad and a storeroom function, ensuring reliable security and ease of use. With a 36-inch profile and an electric lever trim, it is engineered for high-traffic environments while maintaining fire-rated safety standards. Crafted from heavy wrought brass, bronze, or stainless steel, the device boasts a satin stainless steel finish that not only enhances its aesthetic appeal but also ensures durability. The top latchbolt is made of stainless steel, providing a deadlocking mechanism with a 3/4" throw for added security. Its reversible design accommodates right-hand reverse installations, making it versatile for various door configurations. Certified to ANSI A156.3 Grade 1 and UL listed for panic and fire exit hardware, the PHI EFL2203 meets rigorous safety and performance standards. The device is suitable for doors with a thickness of 1-3/4" to 2-1/4" and can be adapted for retrofit applications, offering flexibility for any project. Enhance your building's safety and functionality with this reliable exit device.

Grade 1 SVR Exit Device

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, Storeroom Function, Electric Lever Trim, Fire Rated Device, Satin Stainless Steel Finish, Right Hand Reverse

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double door applications.

• DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
• FUNCTIONS - Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
• BASE MATERIAL - The Covers, Touchbar, Device Channel, Lock/Hinge Side Filler, Vertical Rods and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart on page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.
• TOP LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
• REVERSIBLE - Reversible for all functions and trims. Standard packing RHRB.
• UL LISTED - Panic and Fire Exit Hardware.  Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified ANSI 156.3, Grade 1.
• FINISHES - 605, 606, 612, 613, 625, 628, 630.
• CYLINDERS - Rim type, not furnished standard. Specify when required.
• STILE WIDTH - See Stile Information on page 36.
• LESS BOTTOM ROD (LBR) OPTION - Specify suffix “LBR” (e.g. 2208LBR). See UL FIRE LABEL RATING chart on page 39. Fire Rated Devices include FB277 Fire Bolt Assembly. F
• RETROFIT APPLICATIONS - The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).
