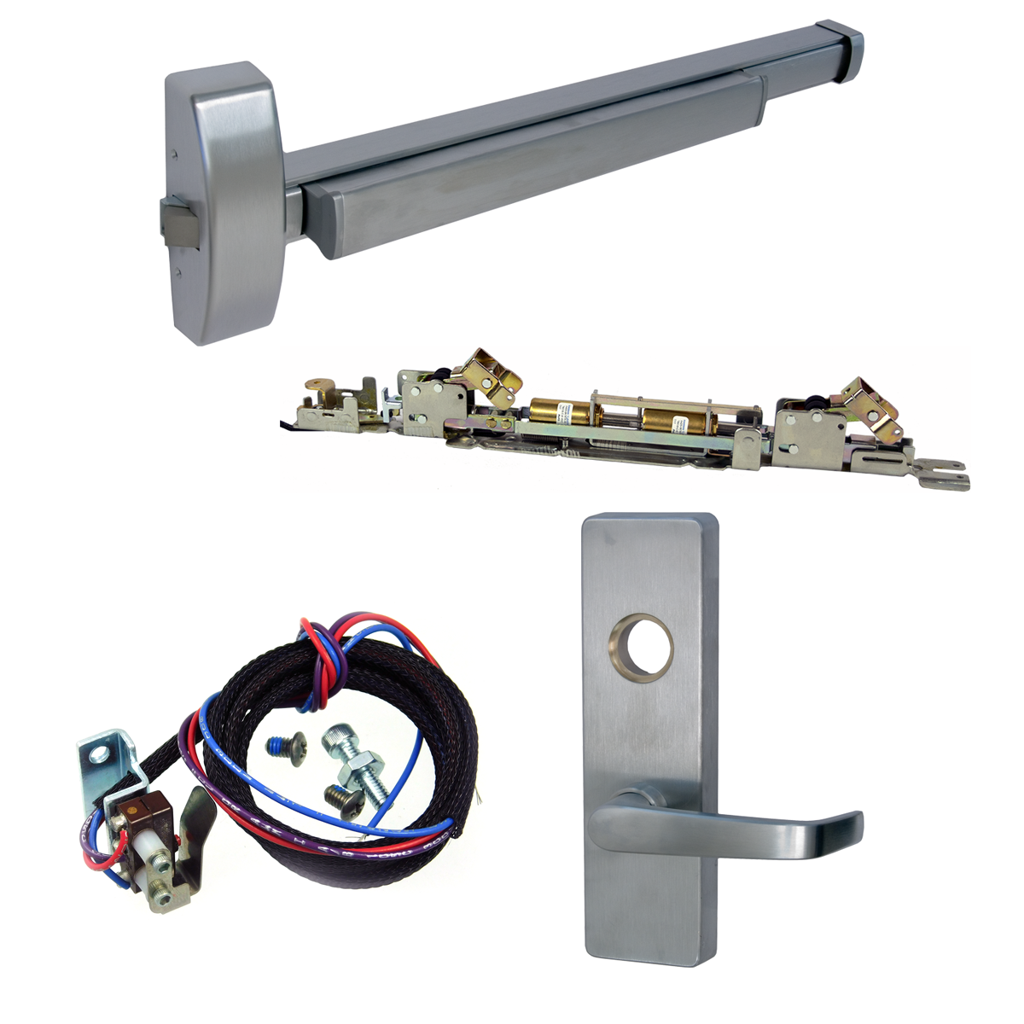

PHI ELR-TS-2108-V4908A-RHR-630-36 KIT Rim Exit Device, Electric Latch, Touchbar Switch, Vandal Resistant Lever

Precision Hardware PHI ELR-TS-2108-V4908A-RHR-630-36 KIT is a high-performance rim exit device that combines security and convenience with its electric latch retraction and integrated touchbar monitoring switch. Designed for right-hand reverse applications, this device is perfect for ensuring quick and safe egress in various environments, including healthcare and educational facilities. Constructed from Grade 1 stainless steel with a satin finish, this exit device features a vandal-resistant lever and escutcheon plate trim, enhancing its durability against forced entry. The investment cast construction provides maximum protection while maintaining ease of use. The built-in rubber bumper sound dampener minimizes noise, making it suitable for high-traffic areas. The PHI ELR-TS-2108 is designed for simple installation on doors measuring 1-3/4" to 2-1/4" thick, and can accommodate various door configurations without the need for shims or glass cutting. Its universal mounting holes allow for easy retrofitting on existing doors. With features such as dual lock monitoring and a mechanical option for added security, this exit device offers a reliable solution that meets ADA compliance and stands up to rigorous use. Upgrade your security infrastructure with the Precision Hardware PHI ELR-TS-2108-V4908A-RHR-630-36 KIT, where safety and functionality meet.

KIT - Rim Exit Device, Electric Latch Retraction, Touchbar Monitoring Switch TS (Request to Exit), Key Locks/Unlocks Vandal Resistant Lever x Escutcheon Plate Trim, Right Hand Reverse, Less Rim Cylinder for Trim, 36in, Grade 1, 630/US32D Stainless Steel

The 2000 exit devices have earned a reputation for strength in every situation—performing in even the most abusive applications. Thanks to its efficient engineering and durable hardware, the Precision 2000 represents the ultimate in safety, security and simplicity. No other exit device offers the level of functionality and dependability as this grade 1, heavy-duty exit device. Built with fewer components and in various door configurations, it provides smoother operation with minimal need for maintenance. The durable construction allows it to withstand high traffic and high use on a regular basis, making it particularly attractive for healthcare and education buildings. These combined benefits give it a longer life span and a lower overall cost of ownership.

Features:

• Maximum protection: Investment cast construction and vandal-resistant trim deliver maximum protection against forced entry without impeding easy exit.
• Dependable operation: The 2000 allows fast, easy egress. A built-in rubber bumper sound dampener reduces noise even in high traffic areas. Designed with fewer moving components, the 2000 requires much lower maintenance than comparable products.
• Smooth appearance: We designed the 2000 for a smooth appearance—no exposed fasteners and very low-profile end caps—that won’t pinch, catch or snag during operation. Available in a range of true architectural finishes, the 2000 fits any design aesthetic.
• Premium materials and construction: Made from top-quality materials and with hardened steel hex dogging assembly, the 2000 delivers durable, low maintenance performance.
• Flexible installation: Universal-function 2000 exit devices are field reversible and available to fit a range of door sizes and types. The wide stile design allows for installation on doors that are not completely flat or when vision lites or glass project beyond the door. No shims or glass cutting is required for installation.
• Easy retrofit: Universal mounting holes and flexible configuration options make installing 2000 series exit devices on existing doors simple.
• Indoor/outdoor application: Available in 626W weatherized finish, 2000 series exit devices can withstand even the harshest environmental conditions.

Specifications:

• Certifications: BHMA A156.3 Grade 1 listed ANSI A117.1 accessibility code (ADA) compliant
• Materials:
• Exit device body: heavy-duty solid brass, bronze, aluminum and stainless steel
• Chassis: investment cast steel, zinc dichromated
• Chassis cover: stainless steel, brass or bronze
• Latchbolt: stainless steel, deadlocking, 3/4" throw
• Door Dimensions:
• Thickness: 1-3/4" – 2-1/4" standard
• Height: 6'8" – 10’ (200 series)
• Width: 3' – 4'
• Strikes:
• S300: Investment cast stainless steel, black powder coated
• S988: Optional strike for use on aluminum door applications
• S458: Optional strike for use on mullion applications
• Device Types:
• Wide rim
• Narrow rim
• Concealed vertical rod
• Narrow stile concealed vertical rod
• Surface vertical Rod
• Wood door concealed vertical rod
• Mortise
• Electrified Options:
• C: Pre-terminated quick connect plug
• DE: Delayed egress
• E: Electric lock/unlock
• ELR: Electric latch retraction
• MLR: Motorized latch retraction
• LS: Latchbolt monitoring switch
• Q: Wireless access management system
• TS: Touchbar monitoring switch
• WTS: Weatherized touchbar switch
• ALK: Battery powered alarm
• ALW: Hardwired alarm
• DS: Door position switch
• WALW: Weatherized alarm
• Trim and Lever Styles:
• Vandal Resistant Lever–no lever reset required
• Knob Trims
• Pull Trims
• A, B, C or D lever styles, standard
• 20 available decorative lever styles

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Oil-rubbed bronze
• 622 - Powder coated black
• 625 - Bright chrome
• 626W - Satin chrome weatherized
• 628 - Satin aluminum, clear anodized
• 630 - Satin stainless steel
• 690 - Dark bronze
