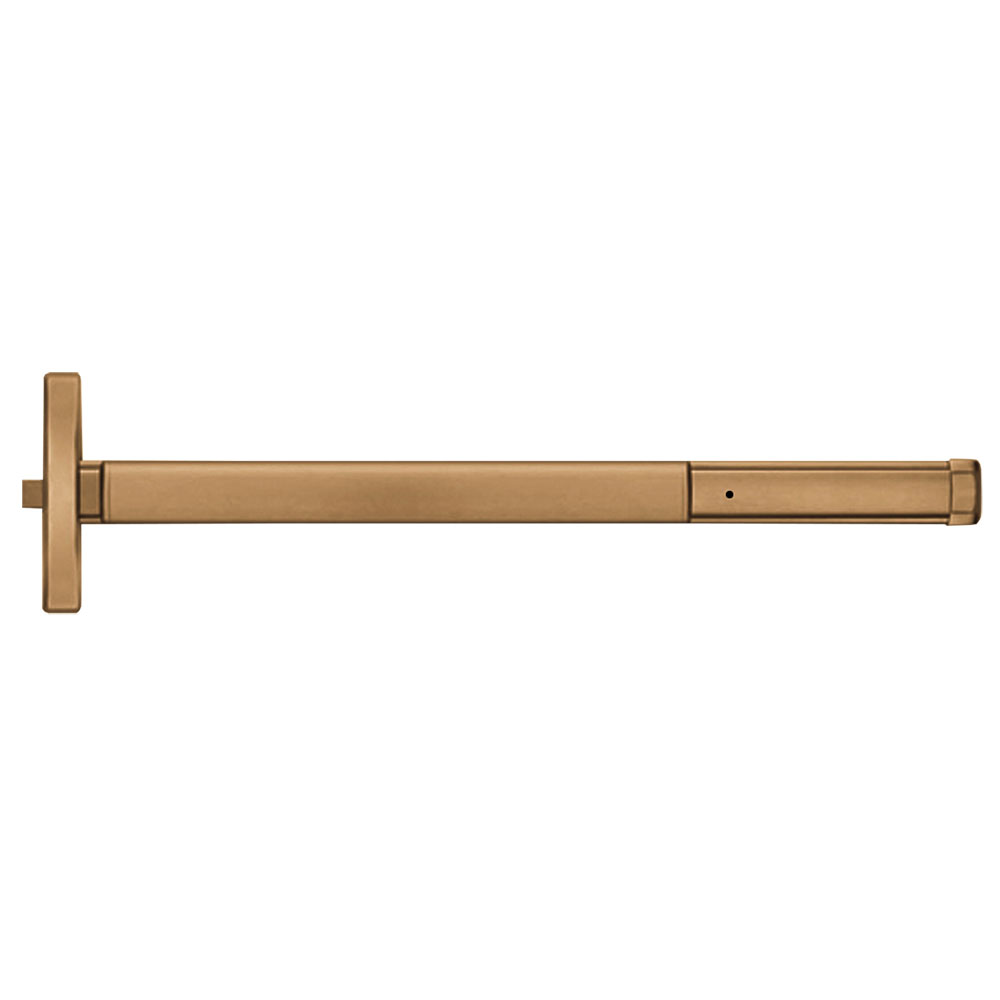

PHI ELR2403 612 36 Grade 1 Narrow Rim Exit Device

PHI ELR2403 612 36 Grade 1 Narrow Rim Exit Device is designed for exceptional performance and security, making it an ideal choice for commercial applications. This Grade 1 exit device features a narrow stile pushpad and storeroom function, ensuring reliable egress while maintaining aesthetic appeal. With electric latch retraction and hex key dogging, it combines functionality with convenience, making it suitable for a variety of environments, including educational and healthcare facilities. Engineered for doors ranging from 1-3/4" to 2-1/4" thick and accommodating openings up to 4'-0" wide, the ELR2403 is versatile enough for single and double doors with or without a mullion. Its robust construction includes heavy wrought brass, bronze, or stainless steel components, while the chassis is made from investment cast steel with a zinc dichromated finish for enhanced durability. UL listed for panic and fire exit hardware, this device conforms to ANSI A156.3 Grade 1 standards. The standard touchbar height is set at 39-15/16", but may be adjusted to meet specific installation needs. Available in a satin bronze clear coated finish, the PHI ELR2403 offers both style and peace of mind, ensuring your exit strategy is both safe and efficient.

Grade 1 Narrow Rim Exit Device

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36" Device, Storeroom Function, Hex Key Dogging, Electric Latch Retraction, Satin Bronze Clear Coated Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double doors with a mullion.

Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker door, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

• FUNCTIONS - A universal exit device. Add trim for desired function.
• BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
• CHASSIS - Investment cast steel, zinc dichromated.
• LATCHBOLT - Stainless steel, deadlocking, 3/4" throw.
• STRIKES - No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
• DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
• UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
