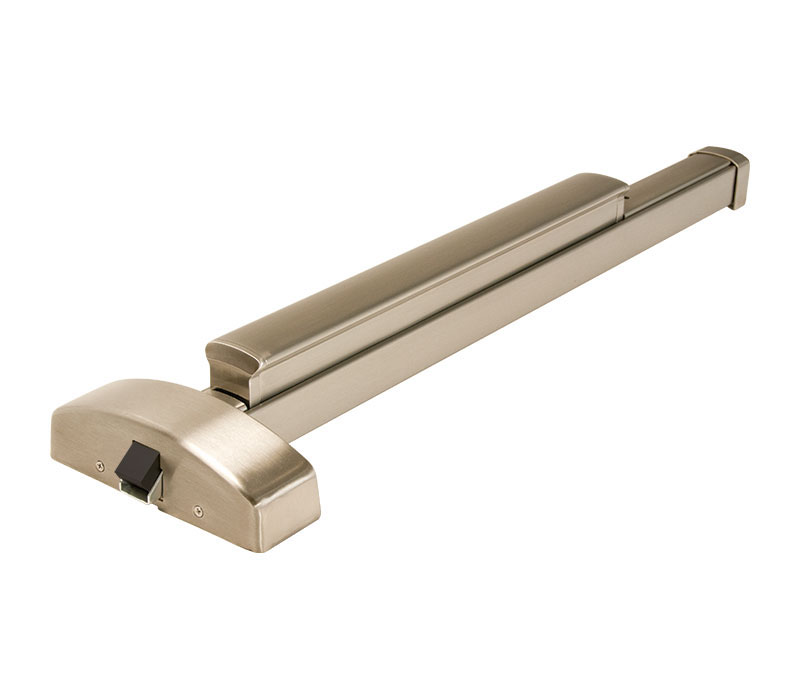

PHI ELRFL2201LBR 630 36 Grade 1 SVR Exit Device

PHI ELRFL2201LBR 630 36 Grade 1 SVR Exit Device offers a robust and reliable solution for high-traffic areas requiring secure exit options. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad and measures 36 inches, designed specifically for exit-only applications. With electric latch retraction, it ensures seamless operation while enhancing safety compliance. Engineered for versatility, the Apex 2000 Series is UL listed for both panic and fire hardware, meeting ANSI A156.3 Grade 1 standards. Its heavy-duty construction includes components made from stainless steel, brass, or bronze, ensuring durability in various environments. The device is field reversible, simplifying installation across different door configurations. Ideal for both single and double door applications, this exit device accommodates doors with thicknesses ranging from 1-3/4" to 2-1/4" and a minimum stile size of 4-1/4". Additionally, it retrofits into existing mounting hole locations from other manufacturers, which enhances its adaptability for renovations. The satin stainless steel finish adds a contemporary touch while providing resistance to wear. With a fire rating of 3 hours, the PHI ELRFL2201LBR is a trusted choice for commercial buildings, ensuring safety and reliability in emergency situations.

Grade 1 SVR Exit Device

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, Exit Only Function, Electric Latch Retraction, Less Bottom Rod, Satin Stainless Steel Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double door applications.

• DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
• FUNCTIONS - Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
• BASE MATERIAL - The Covers, Touchbar, Device Channel, Lock/Hinge Side Filler, Vertical Rods and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart on page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.
• TOP LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
• REVERSIBLE - Reversible for all functions and trims. Standard packing RHRB.
• UL LISTED - Panic and Fire Exit Hardware.  Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified ANSI 156.3, Grade 1.
• FINISHES - 605, 606, 612, 613, 625, 628, 630.
• CYLINDERS - Rim type, not furnished standard. Specify when required.
• STILE WIDTH - See Stile Information on page 36.
• LESS BOTTOM ROD (LBR) OPTION - Specify suffix “LBR” (e.g. 2208LBR). See UL FIRE LABEL RATING chart on page 39. Fire Rated Devices include FB277 Fire Bolt Assembly. F
• RETROFIT APPLICATIONS - The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).
