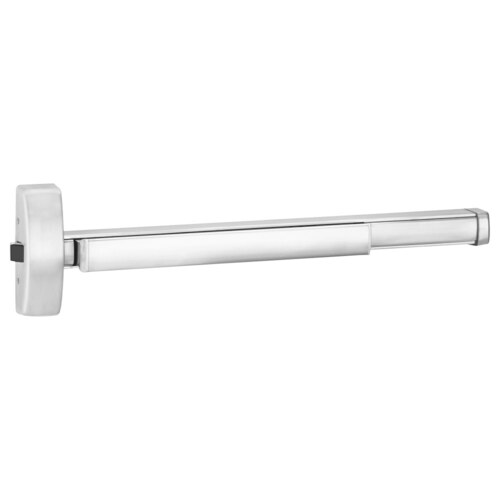

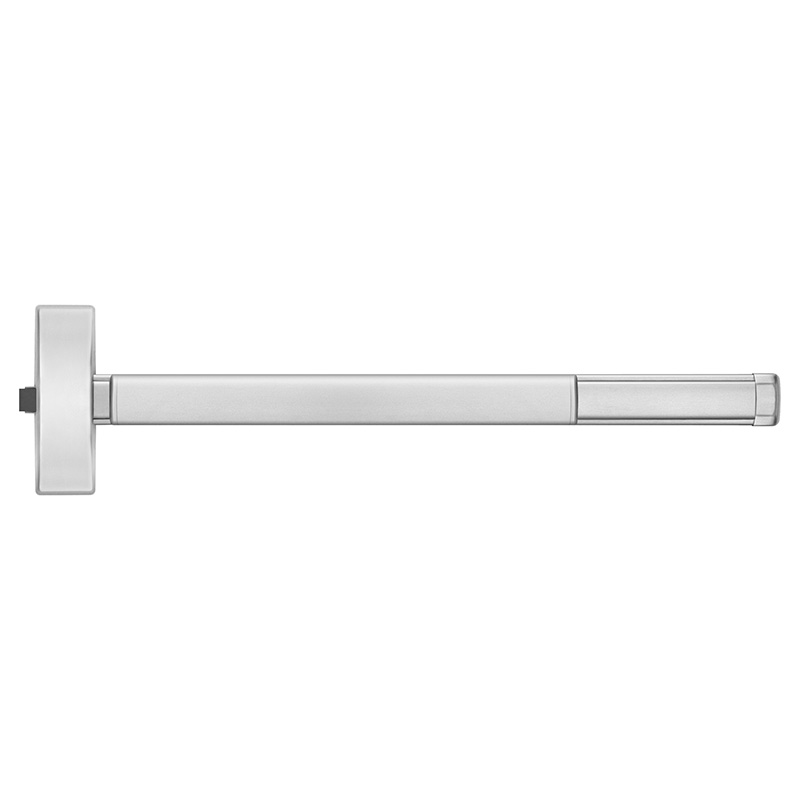

• RETROFIT APPLICATIONS - The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers' mounting hole locations.
• 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R"
• DOORS - For all types of single and double doors with a mullion.
• Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening.
• For thicker doors, consult factory.
• Furnished standard for 1-3/4" thick, 3'-0" wide opening.
• DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
• FUNCTIONS - Functions are field selectable except for the Double Cylinder option.
• The device is furnished for a desired function if specified.
• If not specified the "03" function is furnished standard.
• CYLINDERS - Rim Type, not furnished standard. Specify when required.
• DOUBLE CYLINDER - Handed, "10" Function available.
• Requires two rim type cylinders
• not furnished standard.
• BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
• 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
• CHASSIS - Investment Cast Steel, Zinc Dichromated.
• LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
• STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
• No. S988, optional strike for use on Aluminum Door applications, please specify when ordering.
• No. S458, optional strike for use on Mullion applications, please specify when ordering.
• DOGGING - 1/4" turn hex key dogging standard.
• NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT - 39-15/16" from floor standard.
• May be varied as situation dictates.
• REVERSIBLE - Reversible for all functions and Trims.
• Standard packaging RHRB.
