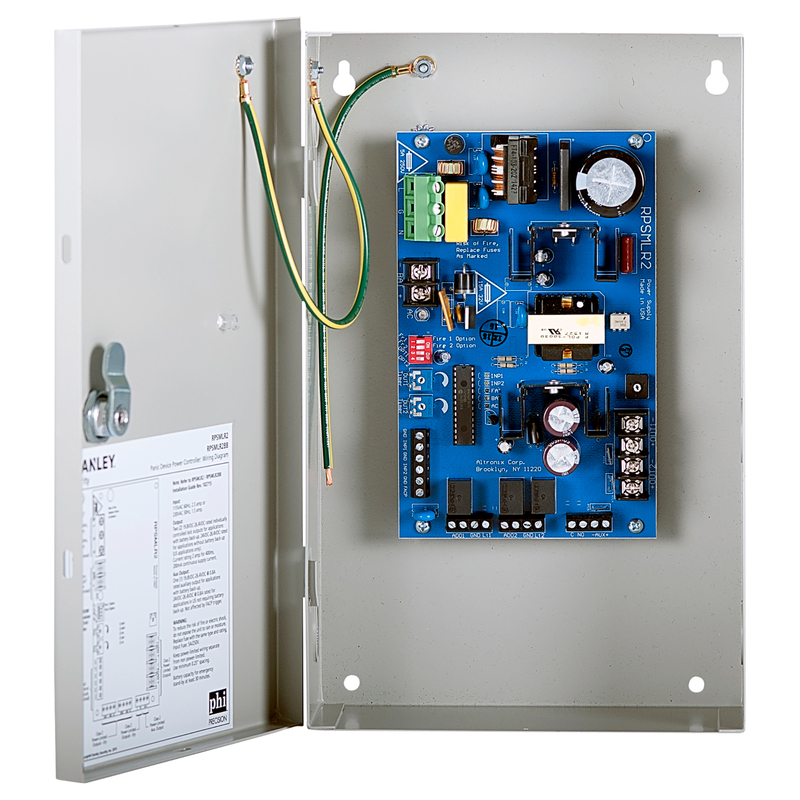

PHI RPSMLR2 Precision Hardware Inc Power Supply

• Certifications:
• UL 294
• ULC S-319
• Input Power: 120 VAC
• Input: Fire alarm termination
• Output Power:
• 2 filtered & regulated 24 Volts DC outputs @ 2 Amps
• Holding current 200mA
• 1 filtered & regulated 24 Volts DC auxiliary output @ 0.8 Amps
• Output:
• 2 normal open relay outputs
• Outputs can be wired for 2 different modes:
• 1 second delay prior to relay output
• Positive confirmation of latch retraction prior to signaling the operator when used in conjunction with MLR exit device sensor wires
• Battery Backup (RPSMLR2BB only):
• Built in charger for sealed lead acid or gel batteries
• Automatically switches to stand-by if AC fails
• Charging current 650mA max
• Batteries are not included
• Visual Indicators:
• AC power, green LED - Indicates presence of AC power
• Triggered input, 2 red LEDs - Indicates input activation
• Fire alarm interface, green LED - Indicates fire alarm activation
• Battery status, red LED - Indicates low battery during AC power failure
• Enclosure Dimensions:
• RPSMLR2: 12.5"x7.5"x3.25"
• RPSMLR2BB: 13.5"x13"x3.25"
• Security: Keyed enclosure

Features

• Charging current 650mA max
• Security: Keyed enclosure
• Output Power:
• Automatically switches to stand-by if AC fails
• Fire alarm interface, green LED – Indicates fire alarm activation
• Enclosure Dimensions:
• Holding current 200mA
• Visual Indicators:
• Built in charger for sealed lead acid or gel batteries
• Battery Backup: (RPSMLR2BB only)
• AC power, green LED – Indicates presence of AC power
• Battery status, red LED – Indicates low battery during AC power failure
• RPSMLR2BB: 13.5"x13"x3.25"
• 1 second delay prior to relay output
• Input: Fire alarm termination
• Input Power: 120 VAC
• RPSMLR2: 12.5"x7.5"x3.25"
• 1 filtered & regulated 24 Volts DC auxiliary output @ 0.8 Amps
• Triggered input, 2 red LEDs – Indicates input activation
• 2 normal open relay outputs
• 2 filtered & regulated 24 Volts DC outputs @ 2 Amps
• Output:
• Outputs can be wired for 2 different modes: 1 second delay prior to relay output Positive confirmation of latch retraction prior to signaling the operator when used in conjunction with MLR exit device sensor wires
• Batteries are not included
• Positive confirmation of latch retraction prior to signaling the operator when used in conjunction with MLR exit device sensor wires
