Platinum Tools 202044J ezEX44 Connector 100/Jar

Platinum Tools 202044J ezEX44 Connector 100/Jar offers an efficient solution for all your networking needs with its innovative pass-through RJ45 connectors. Designed specifically for CAT6 unshielded cables, each jar contains 100 high-quality connectors that accommodate insulation diameters ranging from 0.039" to 0.044" (1.0 – 1.12mm). This ensures compatibility with both solid and stranded 24-22AWG twisted pair cables, making it an ideal choice for professionals and savvy homeowners alike. The ezEX44 connectors feature a robust one-piece design that simplifies installation-no need for bars or liners. Each connector is equipped with 50-micron gold-plated contacts, ensuring reliable data transmission and performance for data and PoE applications. A hi-lo stagger configuration effectively isolates each conductor, enhancing signal integrity. With a maximum cable outer diameter of 0.290" (7.36mm), these connectors are versatile for various projects. They meet rigorous compliance standards including TAA, TIA, RoHS, UL, and FCC, providing peace of mind regarding quality and safety. For optimal results, Platinum Tools recommends using crimp tools 100061 or 12520. Elevate your networking capabilities with the Platinum Tools 202044J ezEX44 Connector, designed for efficiency and excellence in connectivity.

ezEX44 Connector 100/Jar

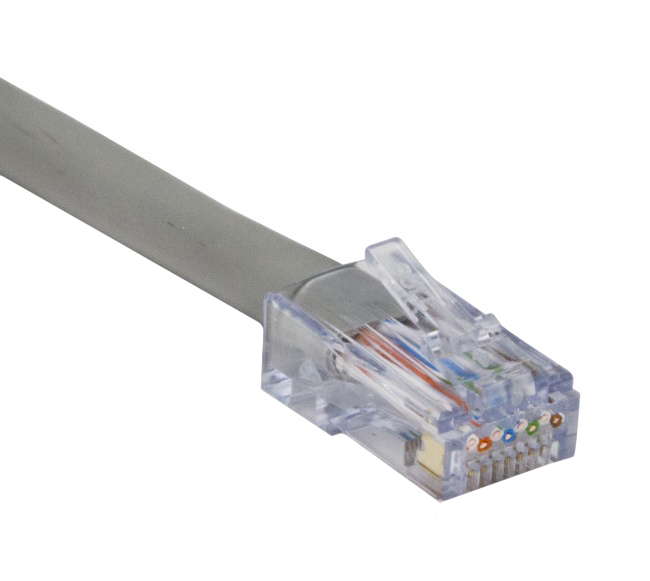

The ezEX-RJ45(44) pass-through RJ45 connectors, CAT6 unshielded — 100pcs in jar.

Features:

• ezEX-RJ45 (ezEX44 series) pass-through RJ45 connectors
• ezEX44 connectors are designed for cables with 0.039" – 0.044" (1.0 – 1.12mm) insulation diameter
• Unshielded
• Package includes 500 pieces
• Bulk bag packaging
• 0.290" (7.36mm) max cable outer diameter
• 0.039" - 0.044" (1.0 - 1.12mm) max insulation diameter (conductors)
• Compatible with solid or stranded 24 - 22AWG twisted pair cable
• 50 micron gold plated contacts
• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design does not require bars or liners
• Compatible with CAT5E cables
• TAA, TIA, RoHS, UL & FCC compliant
• US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
• Rated for data and PoE applications
• Recommended crimp tools: 100061 or 12520
